Front Impact Sensor

REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.
2. Wait two minutes for the system reserve capacitor to discharge before beginning any system or component service.
3. Remove the headlamp unit of the side in which you are replacing the sensor.

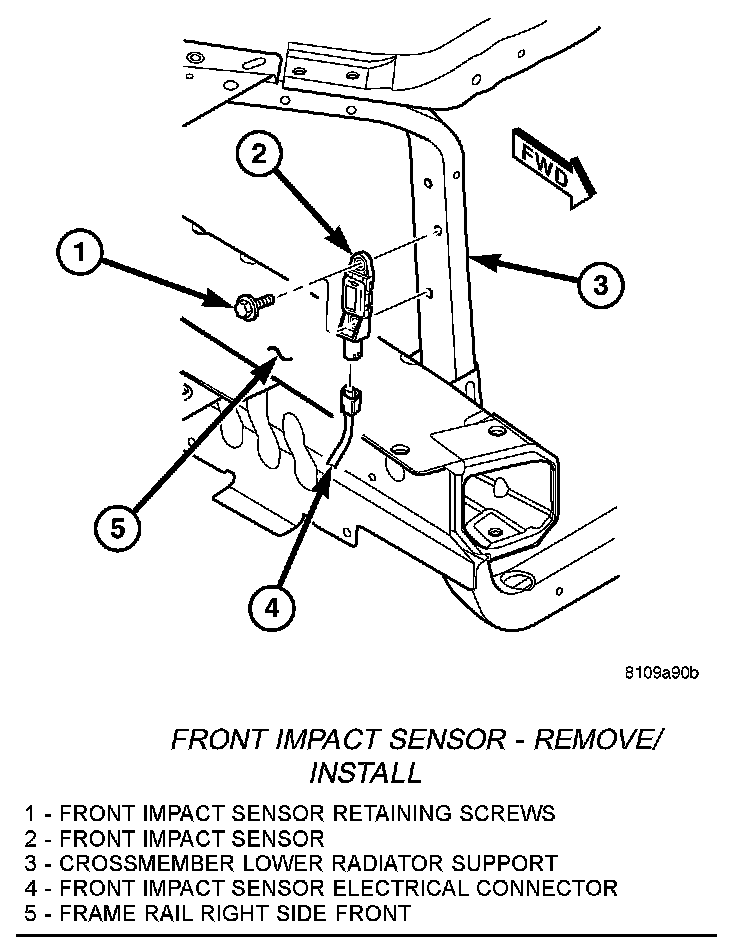

Front Impact Sensor - Remove/Install:

4. Through the headlamp opening, remove the two mounting screws retaining the front impact sensor.
5. Disconnect electrical connector.
6. Remove sensor from vehicle.

INSTALLATION
1. Position sensor in vehicle.
2. Connect electrical connector.
3. Through the headlamp opening, install the two mounting screws retaining the front impact sensor. Torque screws to 8.5 Nm (75 in. lbs.).
4. Install the headlamp unit of the side in which you are replacing the sensor.

WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE FIRST. FAILURE TO DO SO COULD RESULT IN OCCUPANT PERSONAL INJURY OR DEATH.

5. Verify vehicle and system operation.
6. Close hood.
