Front Door Window Glass: Service and Repair

DOOR GLASS

REMOVAL

1. Remove door trim panel. Refer to Front Door Panel.
2. Remove watershield. Refer to Front Door Panel.
3. Remove inner belt molding.

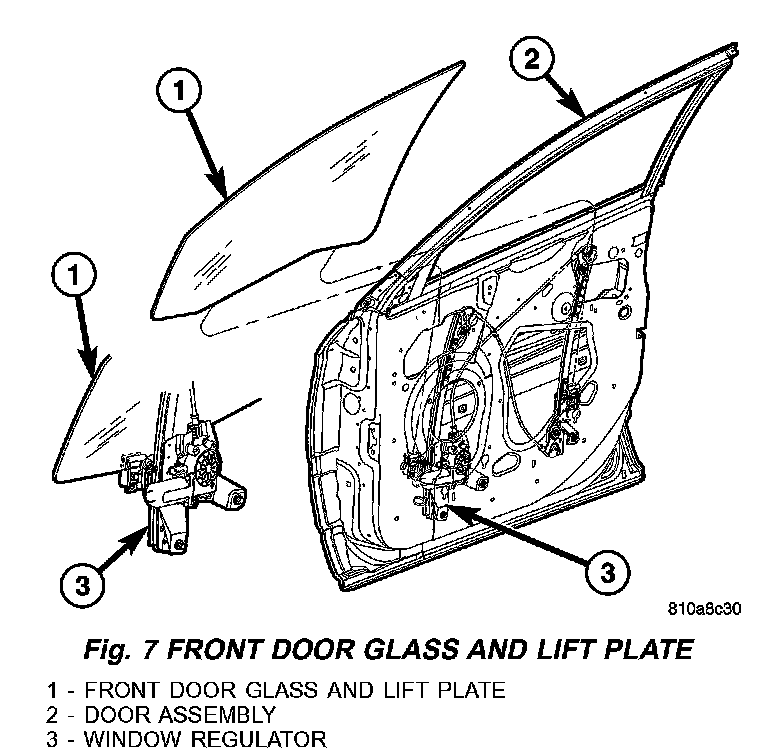

Fig. 7:

4. Position glass to gain access to front and rear regulator lift plates through access hole in door panel (Fig. 7).
5. Using a trim tool or a flat blade tool release snap locks attaching glass.
6. Remove glass from regulator glass brackets.
7. Disengage glass from glass run weatherstrip.
8. Insert front of glass between glass run channel and outer door panel.
9. Lift glass upward and out of exterior side of the opening at top of door.
10. Remove glass from vehicle.

INSTALLATION

1. Place glass in window opening with front inserted between run channel and outer door panel.
2. Lower glass downward into door.
3. Insert ends of glass into glass run weatherstrip channels at front and rear of door.
4. Place glass in position on regulator clamp brackets.
5. Press down on glass to lock glass into snap locks.
6. Install inner belt molding.
7. Verify door glass operation and fit.
8. Install watershield.
9. Remove door trim panel.
