Trunk / Liftgate Motor

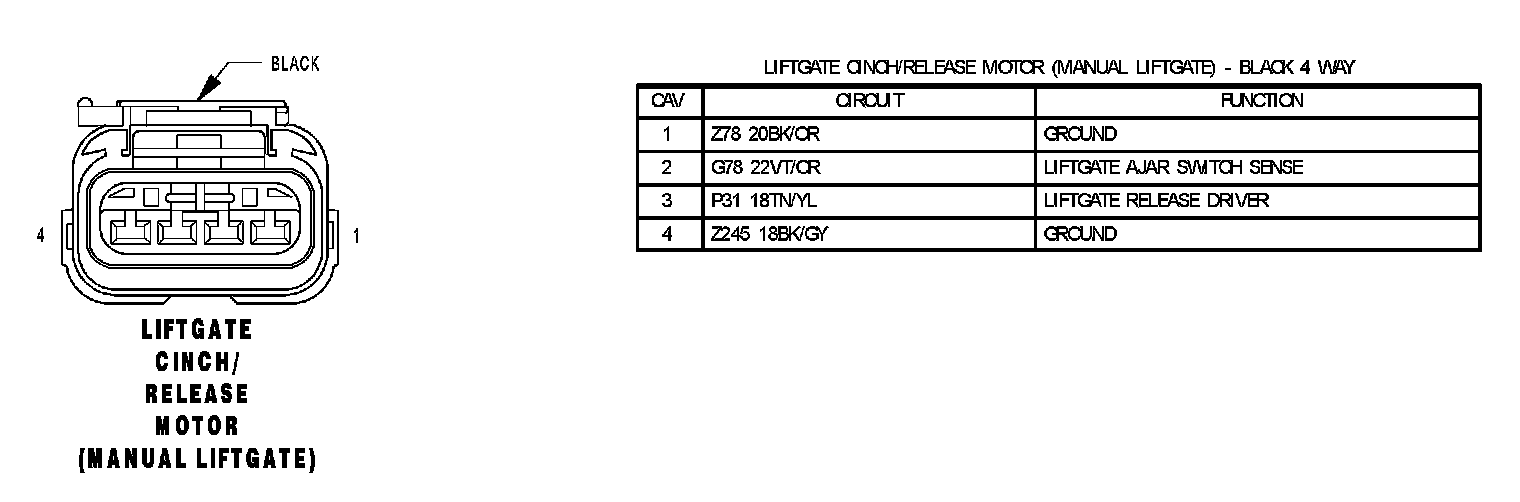

Liftgate Cinch/Release Motor (Manual Liftgate):

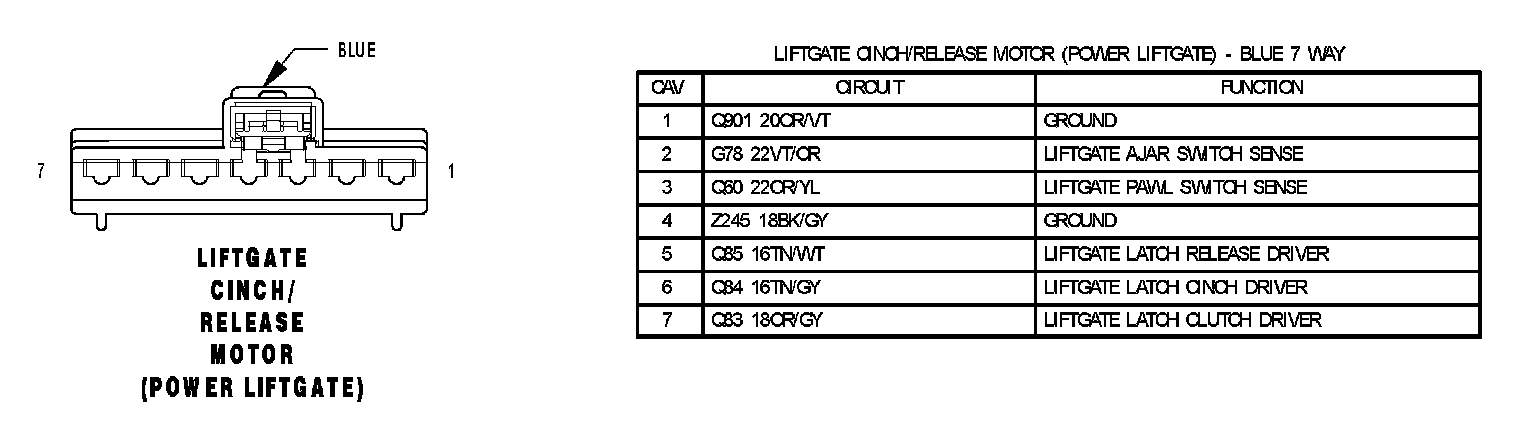

Liftgate Cinch/Release Motor (Power Liftgate):
