Variable Induction Control Solenoid
Variable Induction Control Solenoid

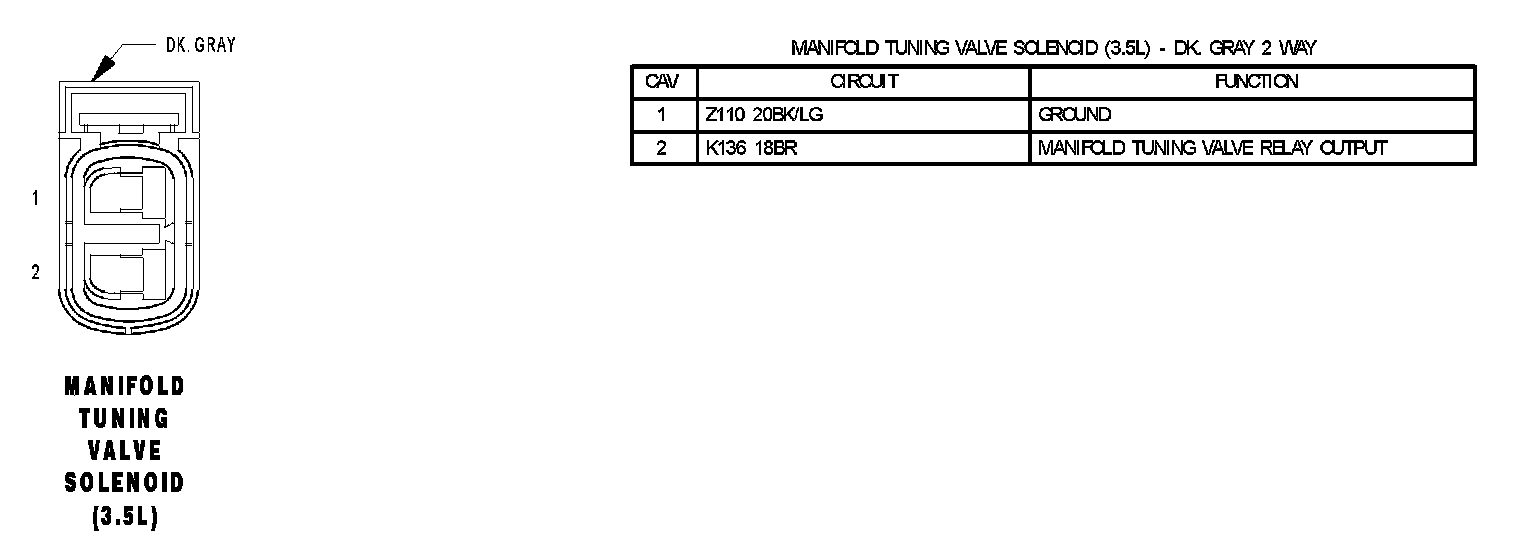

Manifold Tuning Valve Solenoid (3.5L):
Short Runner Valve Solenoid:
