Component Locations

Crankshaft Position Sensor:

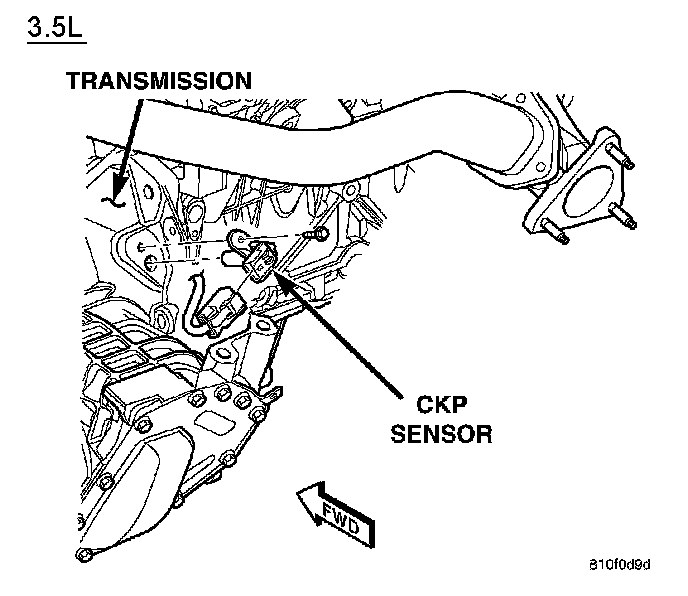

3.5L:

The crankshaft sensor is located on the driver side of the vehicle, above the differential housing.
