Shift Cable: Service and Repair

GEAR SHIFT CABLE

REMOVAL
1. Raise hood.
2. Disconnect battery negative cable.

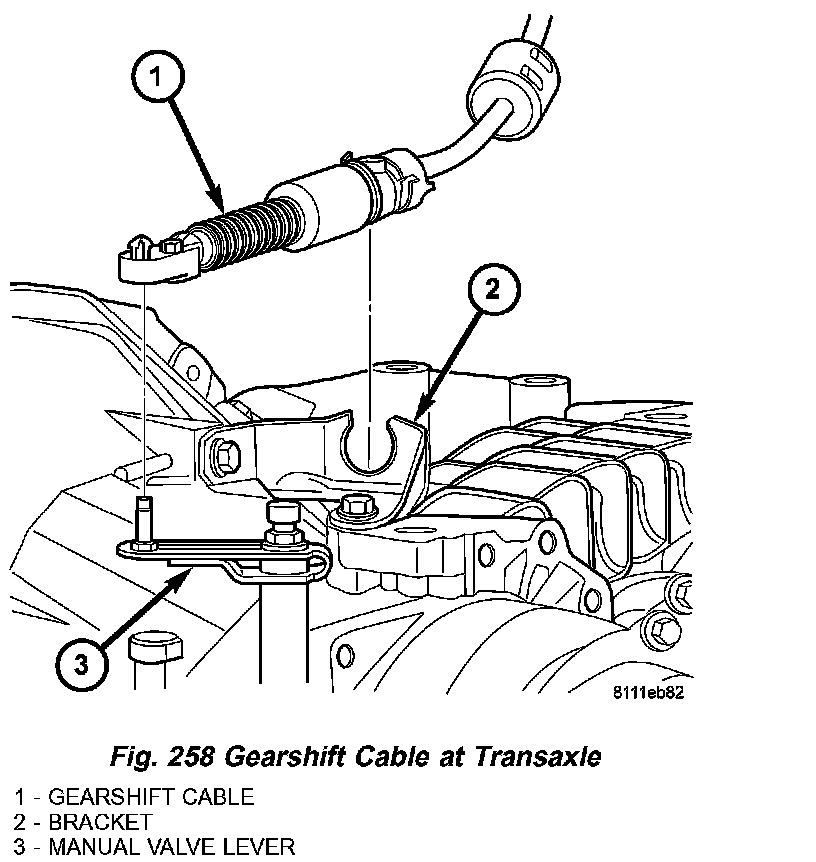

3. Disconnect gearshift cable from transaxle manual valve lever (Fig. 258).
4. Remove gearshift cable from transaxle bracket.

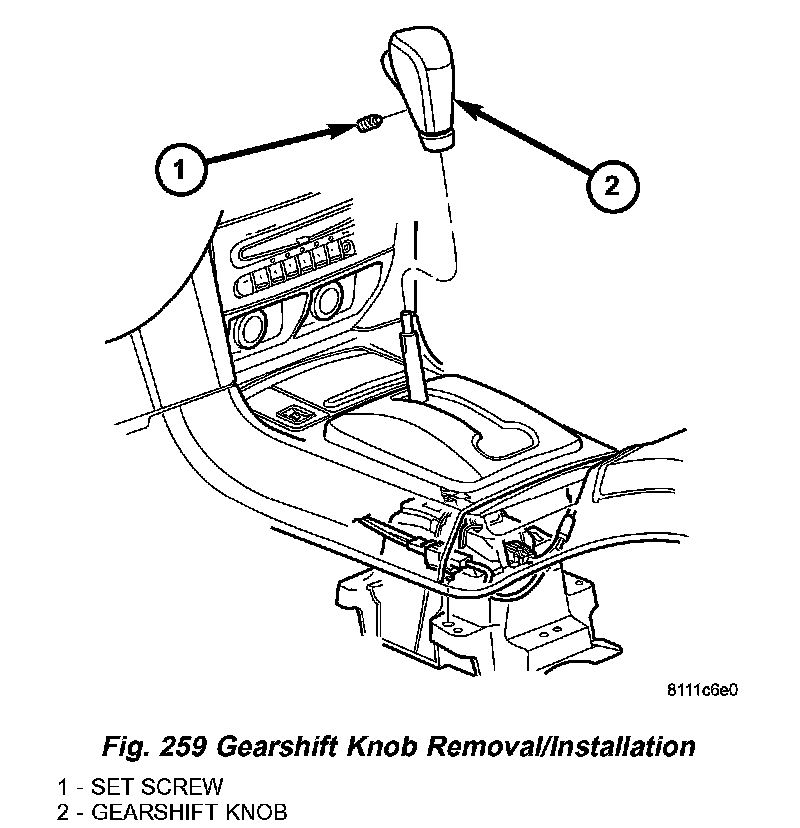

5. From inside vehicle, remove gearshift knob (Fig. 259).

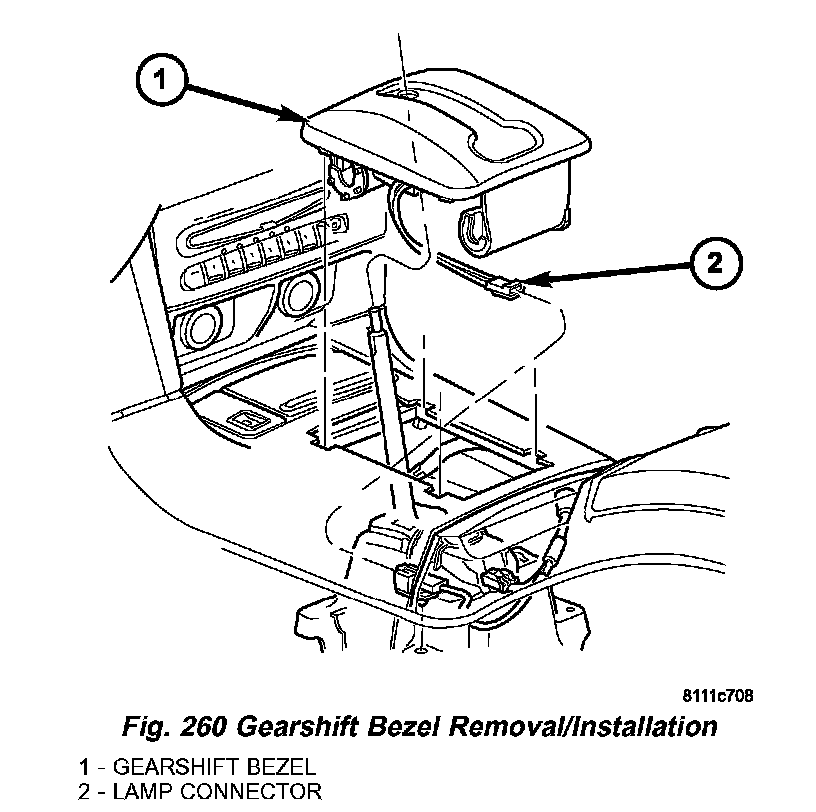

6. Remove gearshift bezel (Fig. 260).

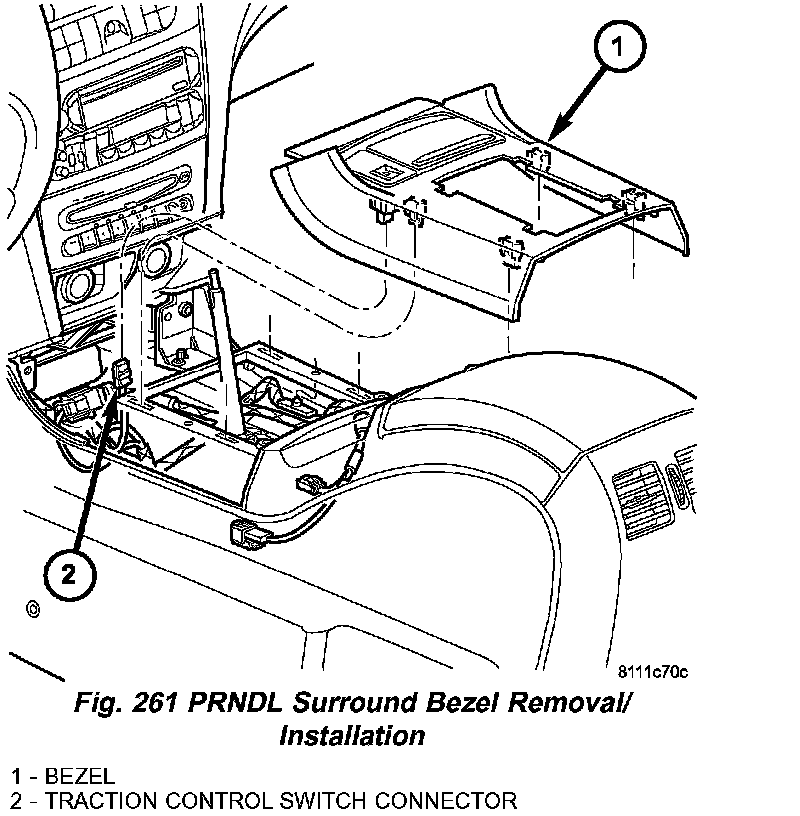

7. Remove PRNDL surround bezel (Fig. 261).

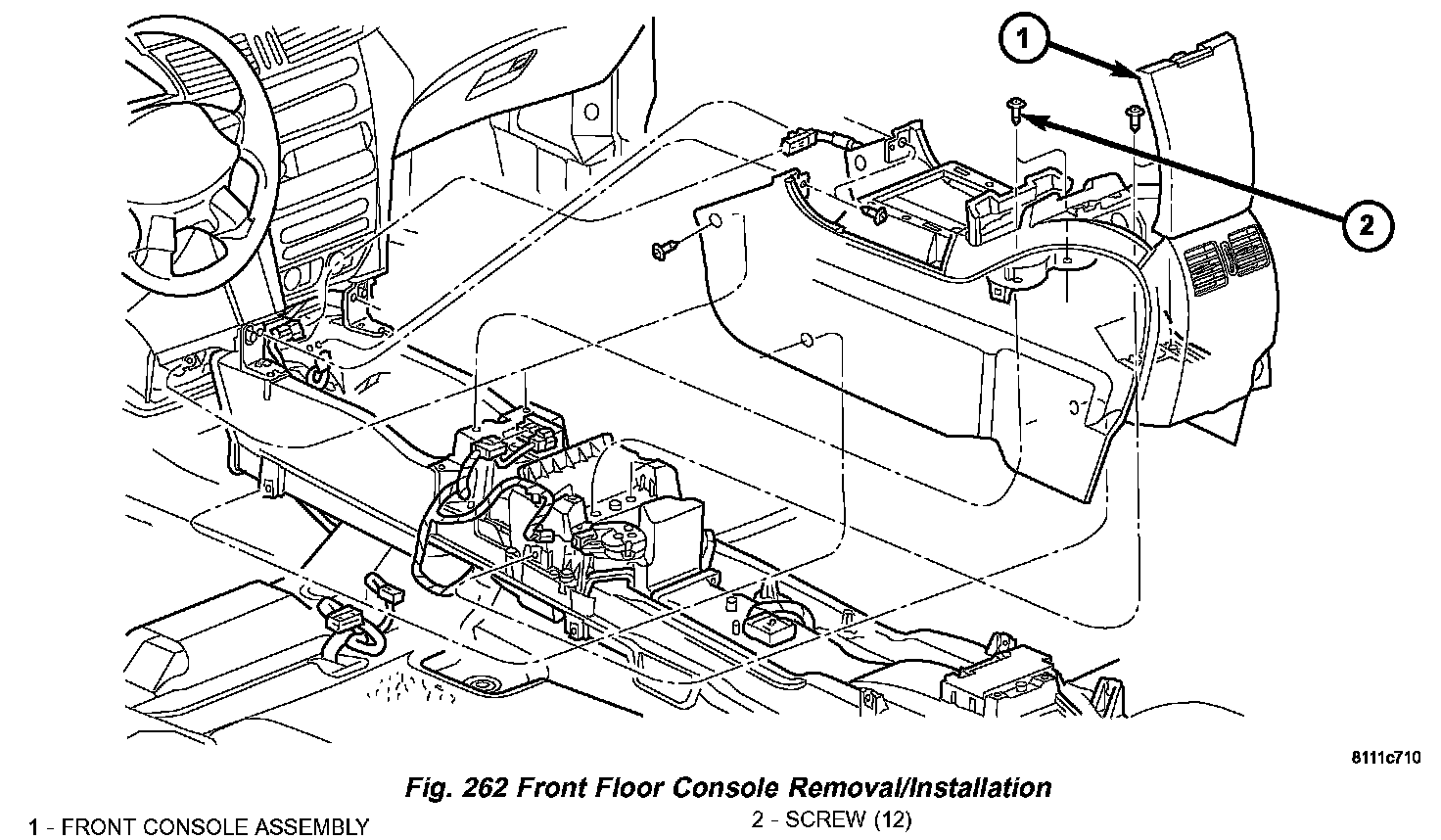

8. Remove front center console assembly (Fig. 262).

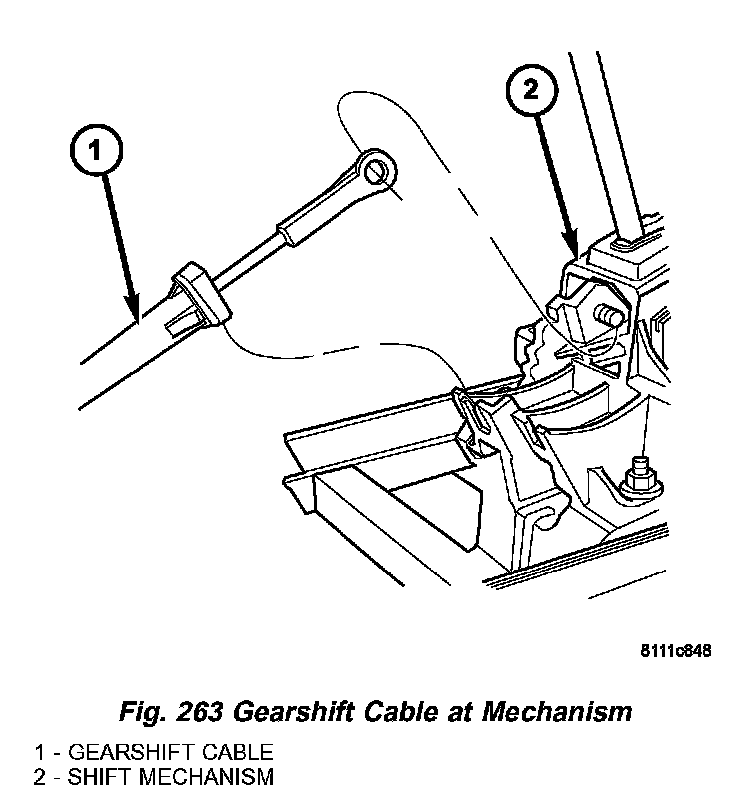

9. Disconnect gearshift cable from gearshift lever pin and mechanism base (Fig. 263).
10. Disengage cable grommet and remove cable assembly from vehicle.

INSTALLATION
1. Install gearshift cable to vehicle. Secure grommet.

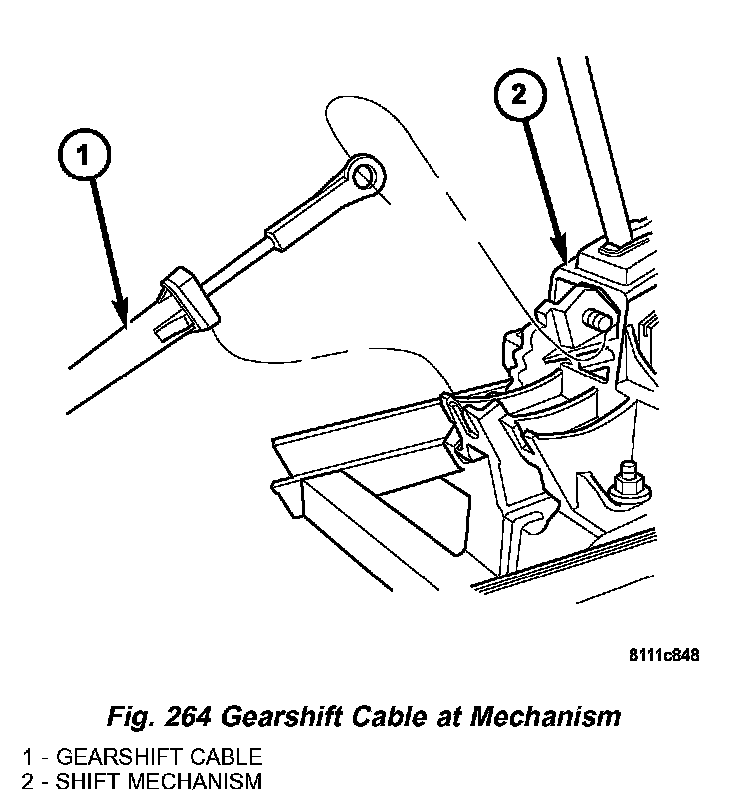

2. Install gearshift cable to shift mechanism (Fig. 264).

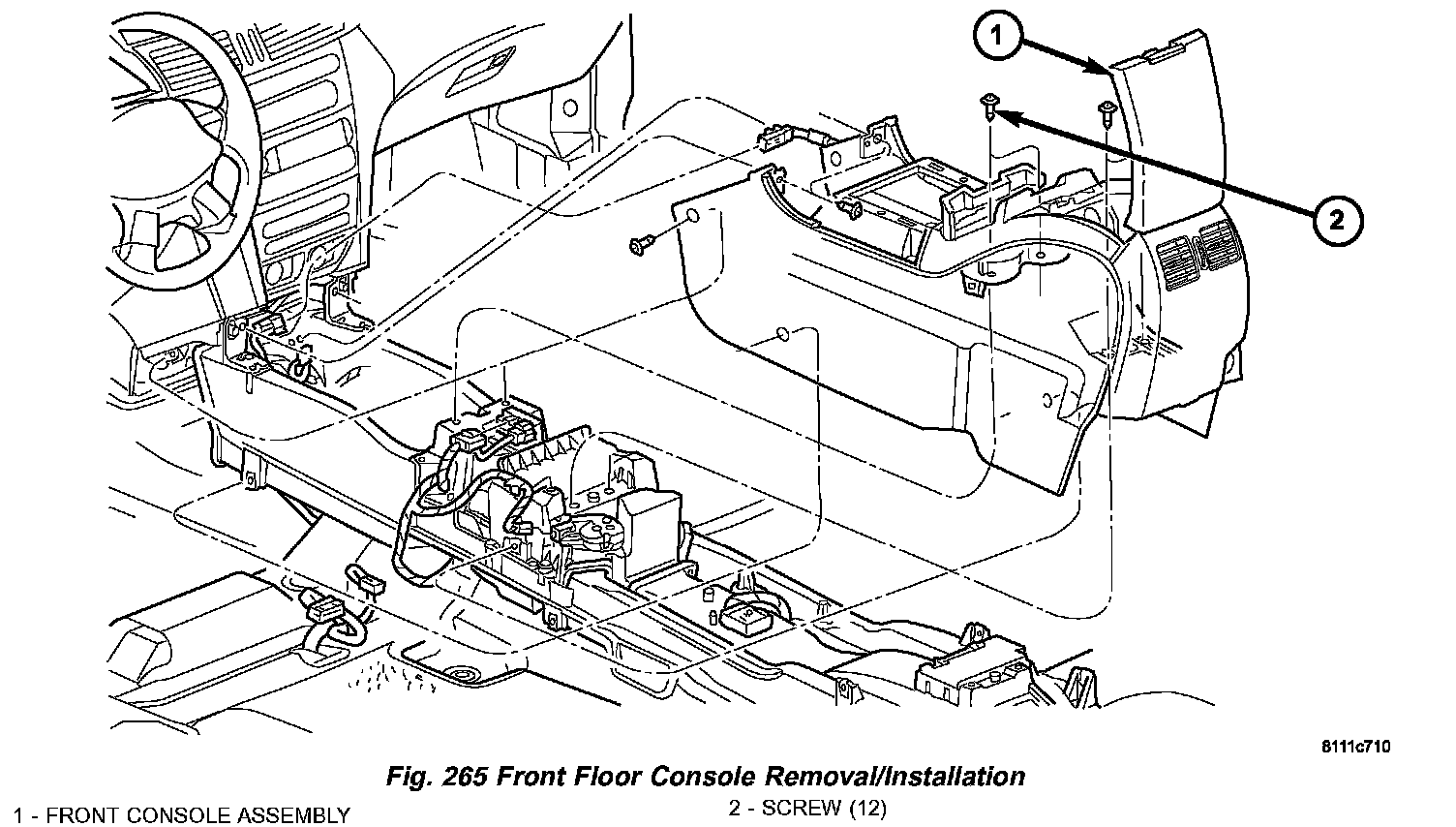

3. Install center console assembly (Fig. 265).

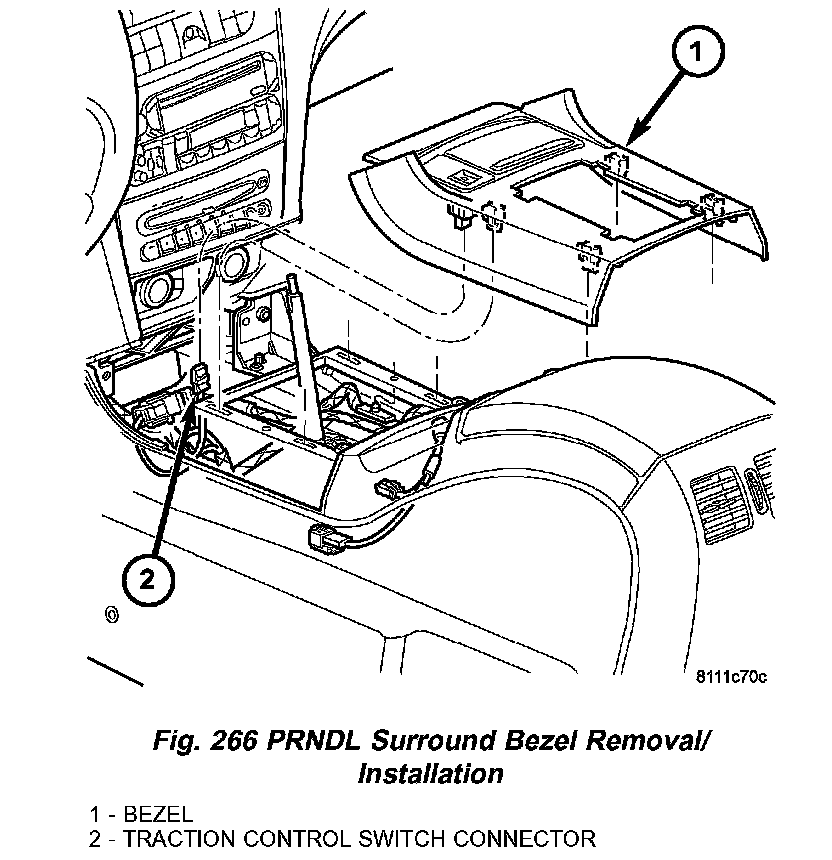

4. Install PRNDL surround bezel (Fig. 266).

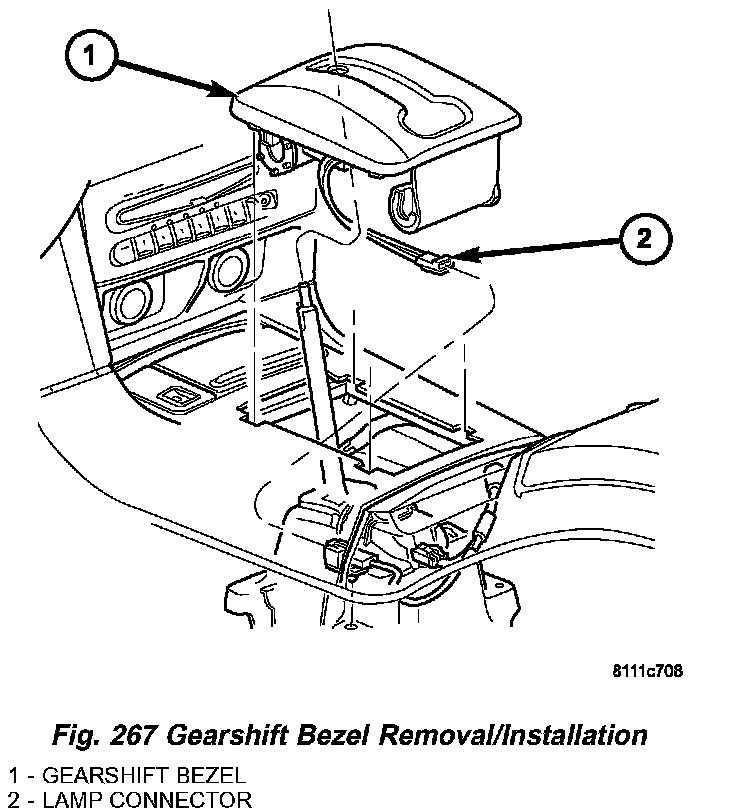

5. Install gearshift bezel (Fig. 267).

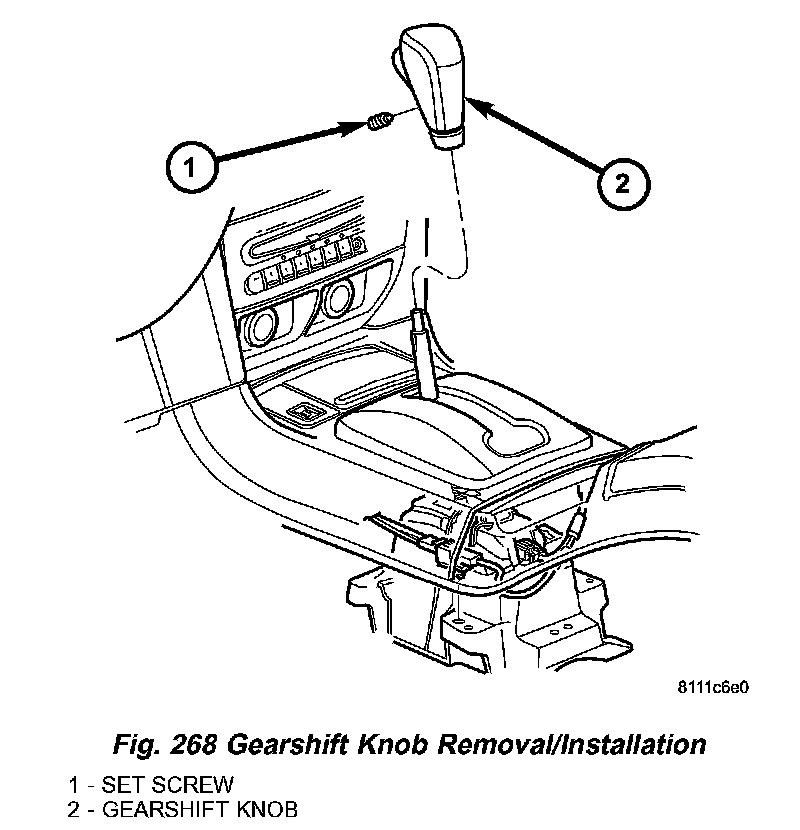

6. Install gearshift knob (Fig. 268).

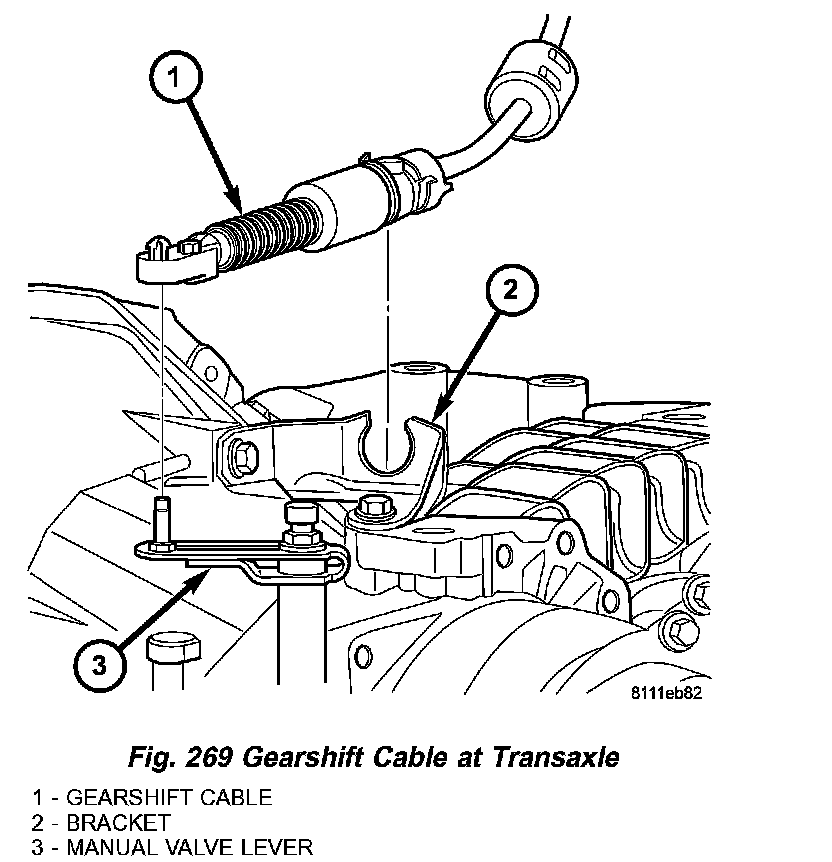

7. From underhood, install gearshift cable to transaxle bracket (Fig. 269).
8. Install cable to transaxle manual valve lever (Fig. 269).
9. Adjust gearshift cable.
10. Connect battery negative cable.
