Second Row Seat

SECOND ROW SEAT

REMOVAL

1. Disconnect and isolate the battery negative cable.

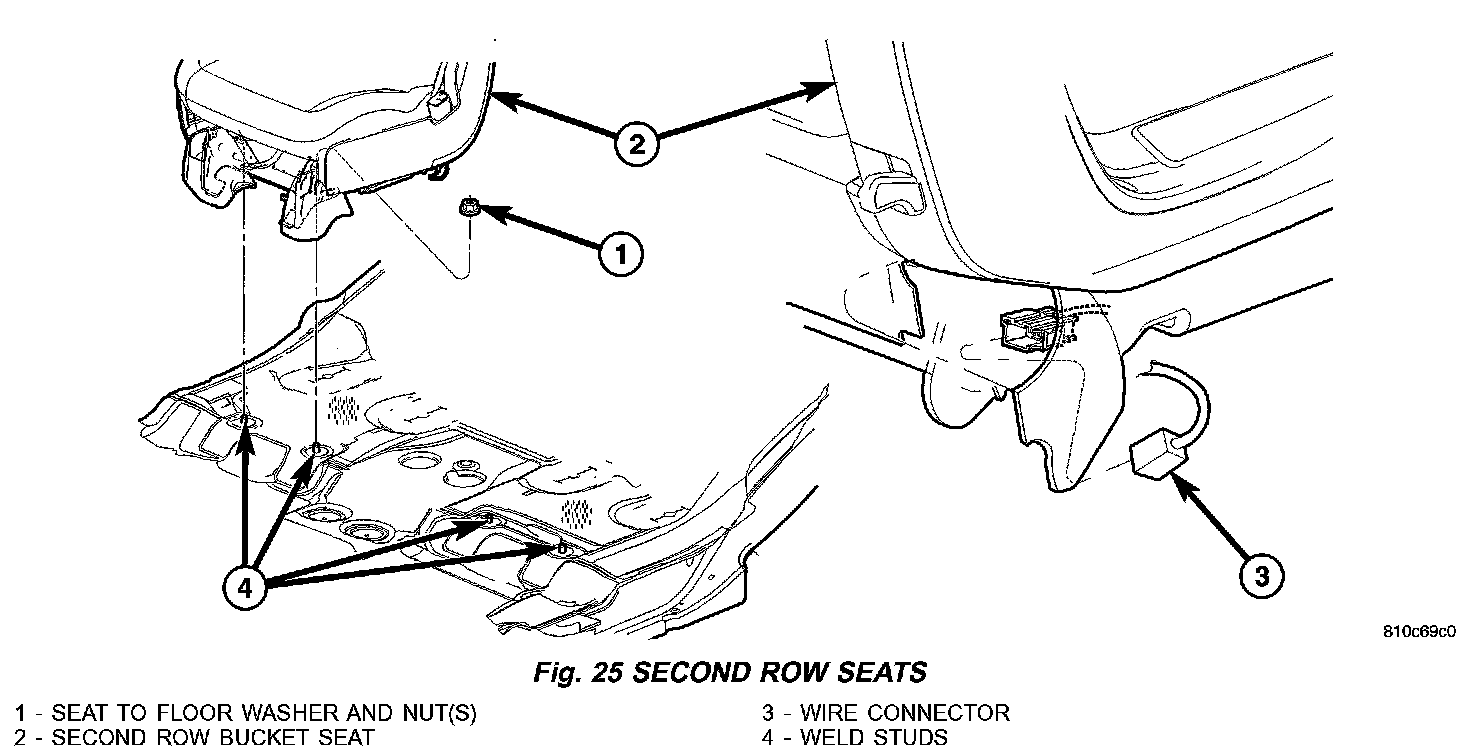

Fig. 25:

2. Remove two nuts attaching seat to floor pan (Fig. 25).

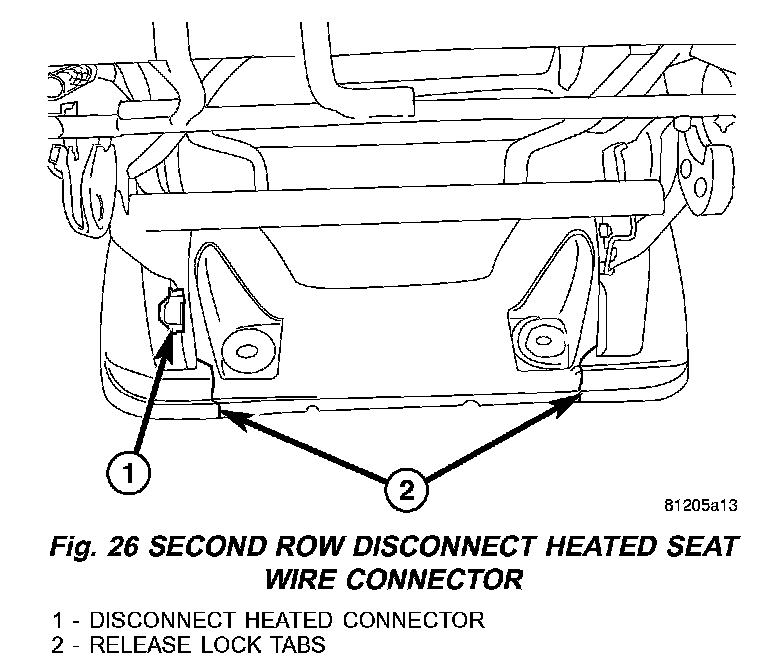

Fig. 26:

3. Tilt seat forward and disconnect heated seat wire connector (Fig. 26).
4. Remove seat from vehicle.

INSTALLATION

1. Place second row seat into position in vehicle.
2. Connect heated seat wire connector (Fig. 26).
3. Install two nuts attaching seat to floor pan. Tighten nuts to 54 N.m (40 ft.lbs.) torque. (Fig. 25).
4. Install headrest.
