Brake Rotor/Disc: Specifications

BRAKE ROTOR

NOTE: When refacing a rotor, the required TIR (Total Indicator Reading) and thickness variation limits MUST BE MAINTAINED. Extreme care in the operation of rotor turning (machining) equipment is required.

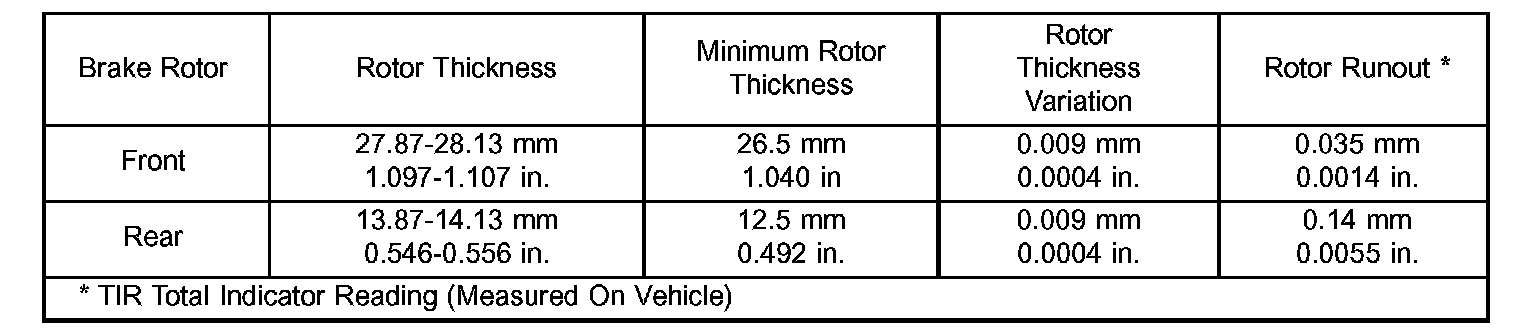

LIMITS/SPECIFICATIONS
