Start and Stall Condition

Test 1 - 2:

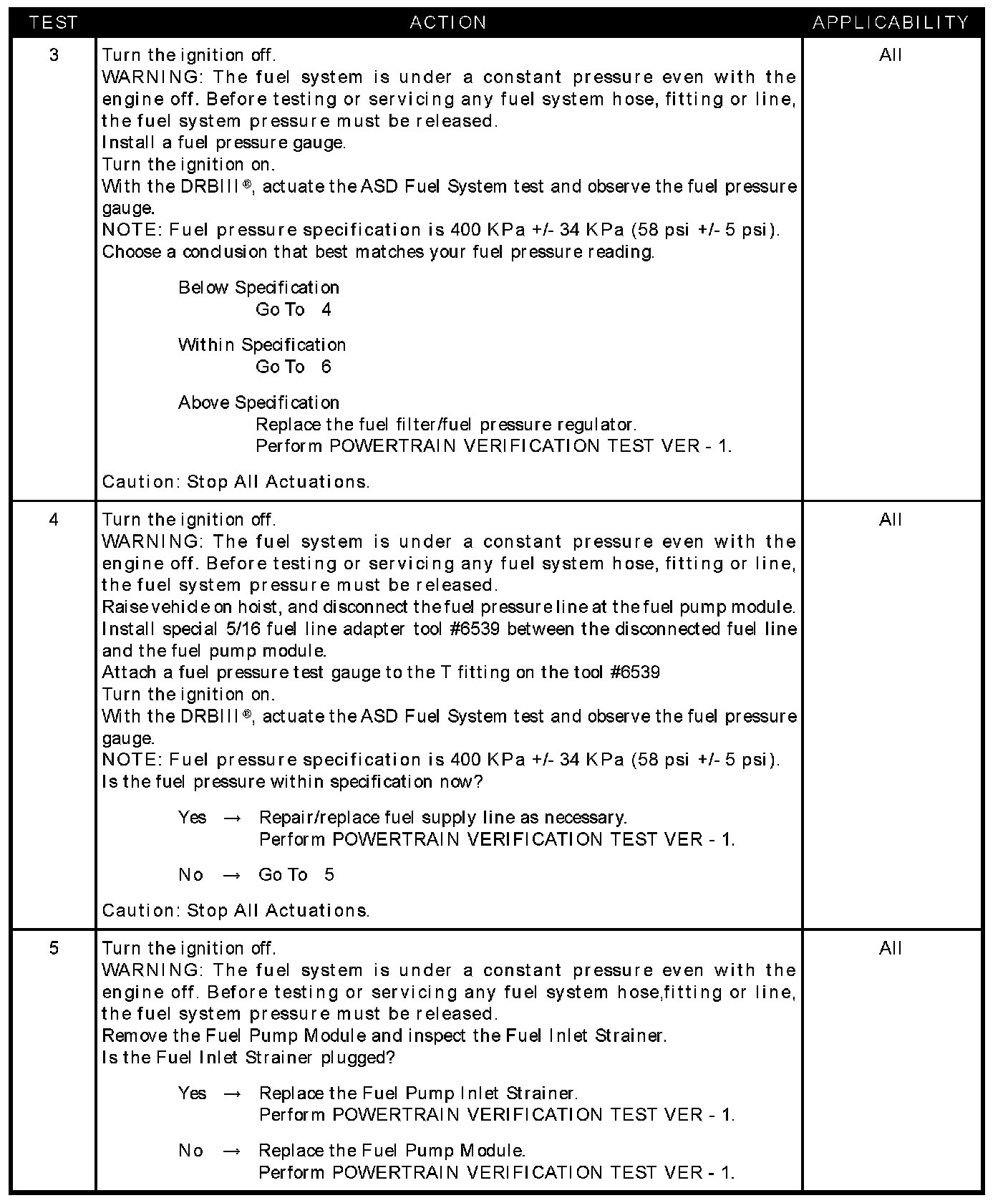

Test 3 - 5:

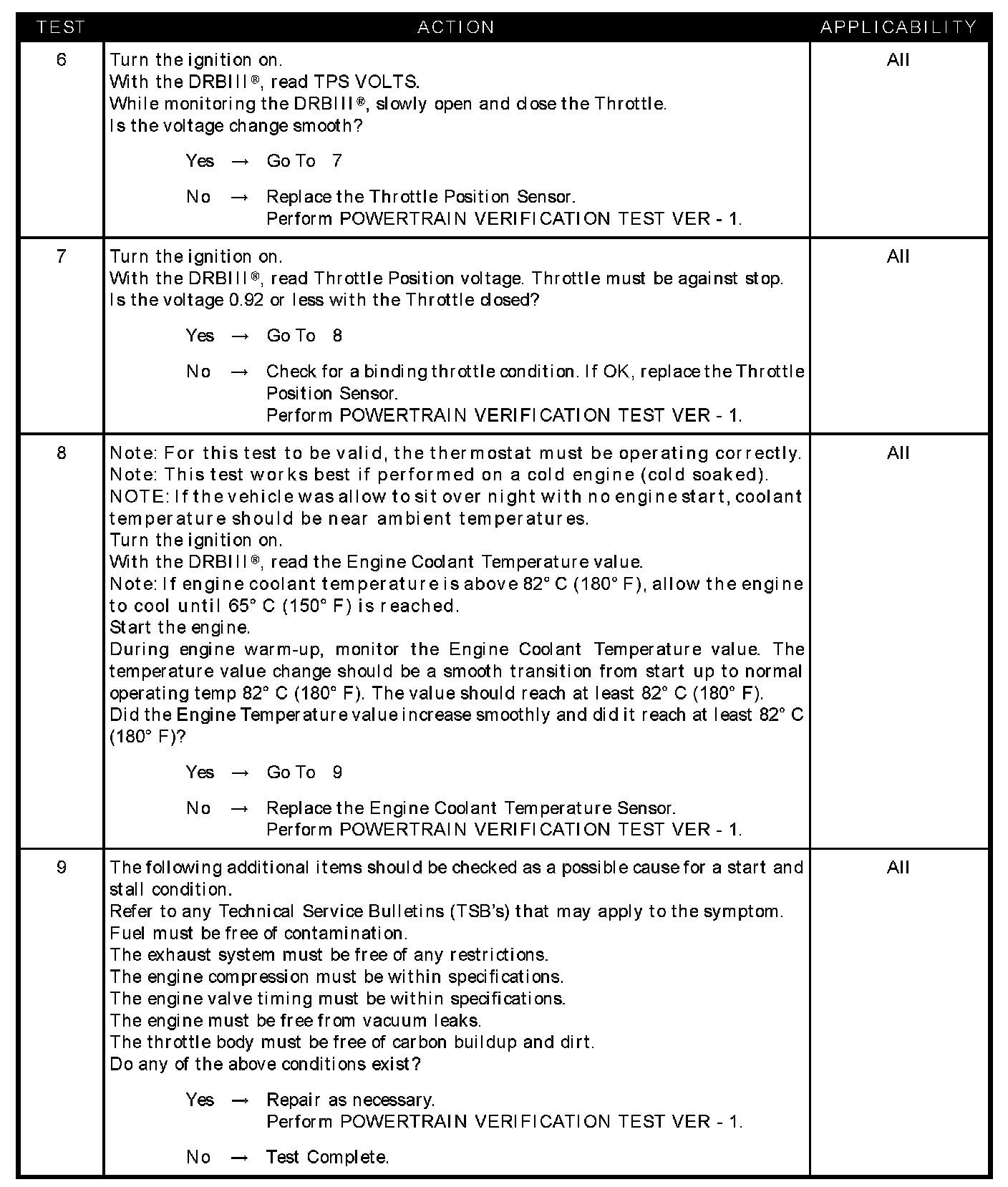

Test 5 - 9:

SYMPTOM
START AND STALL CONDITION

POSSIBLE CAUSES
- Checking DTCs
- Checking SKIM DTCs
- Fuel Pressure out of specs
- TP sensor sweep
- TP sensor voltage greater than 0.92 volts with throttle closed
- ECT sensor operation
- Other possible causes for start & stall
- RESTRICTED FUEL SUPPLY LINE
- Fuel pump inlet strainer plugged
- Fuel pump module
