Transmission Mode Switch: Locations

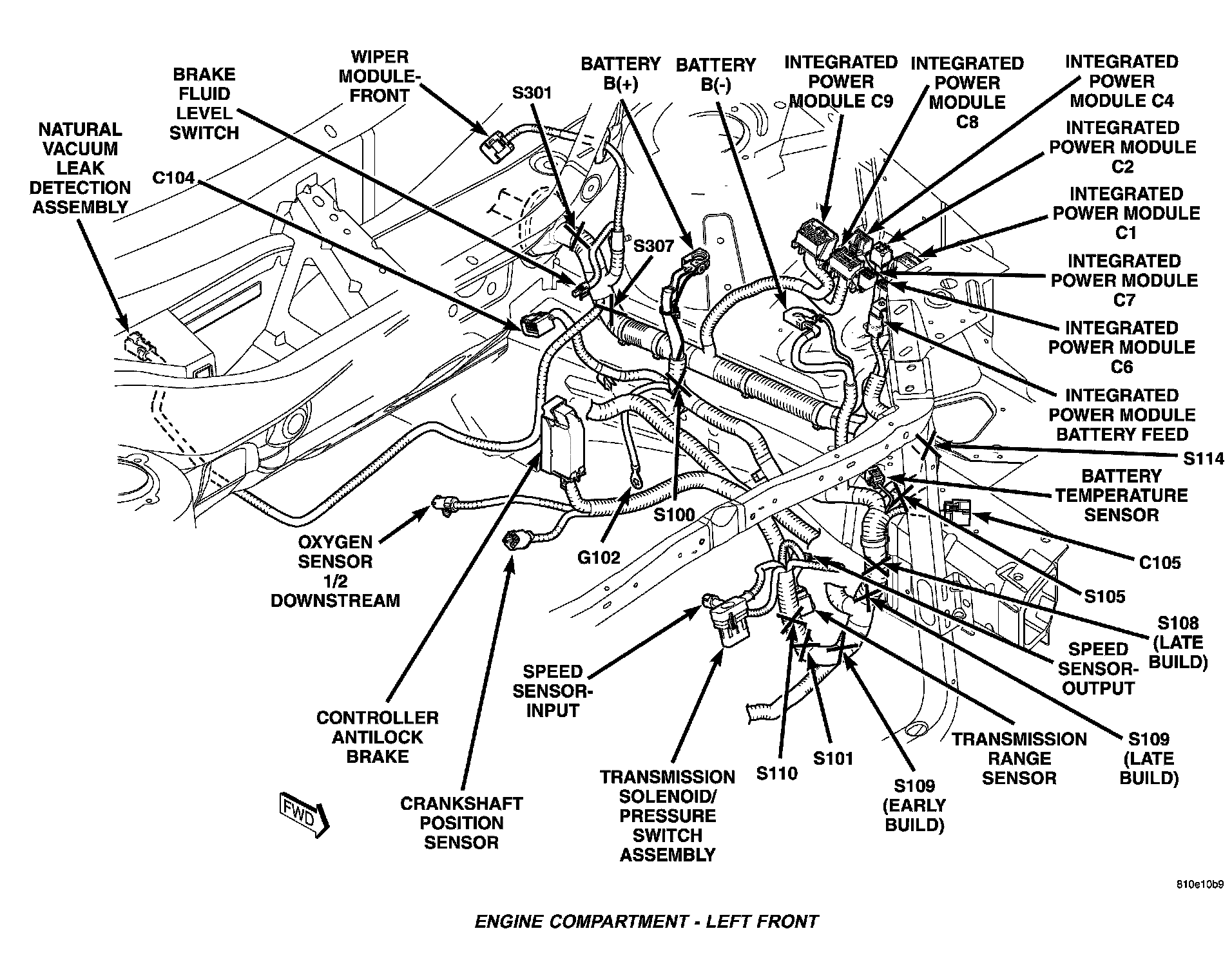

Engine Compartment - Left Front:

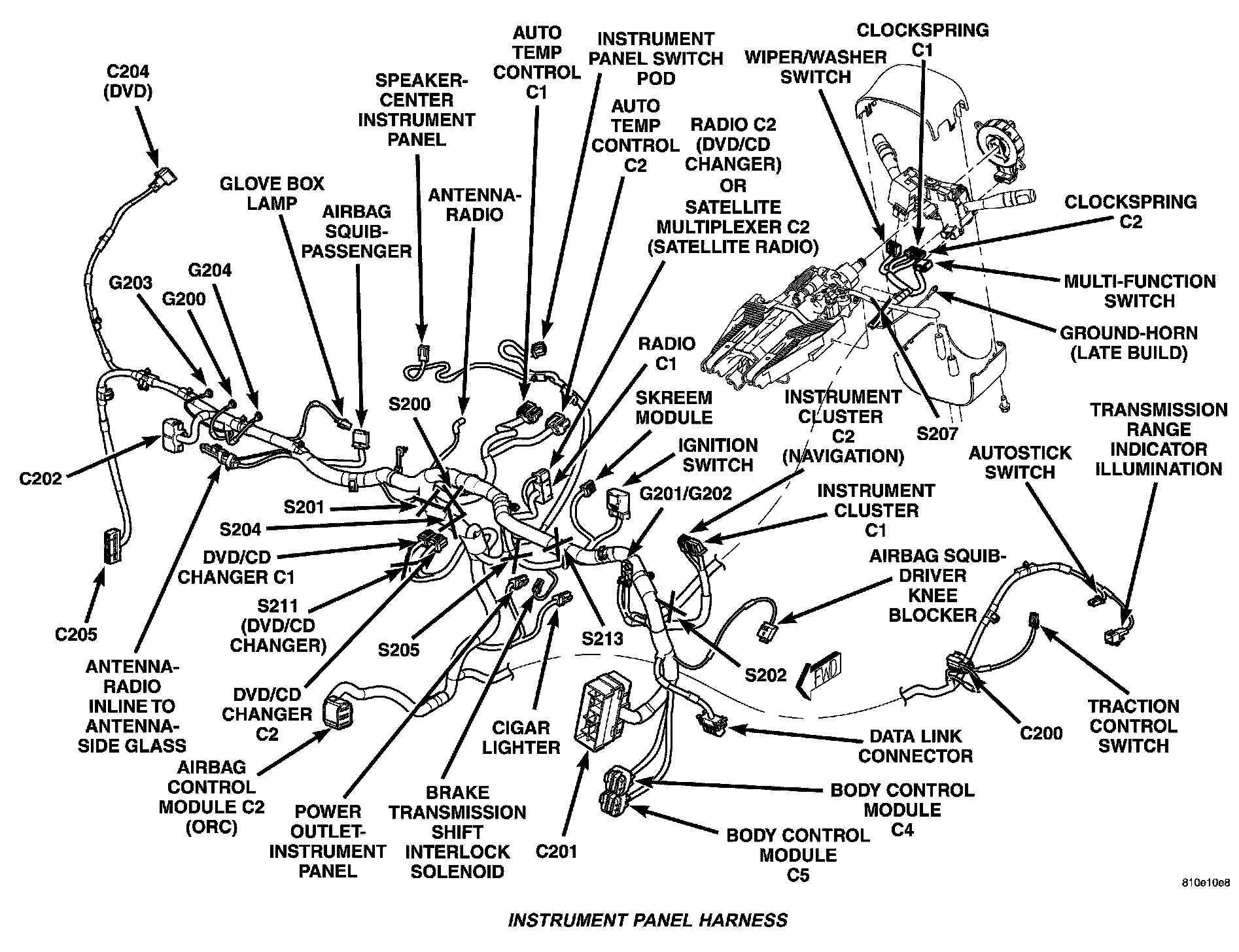

Instrument Panel Harness:

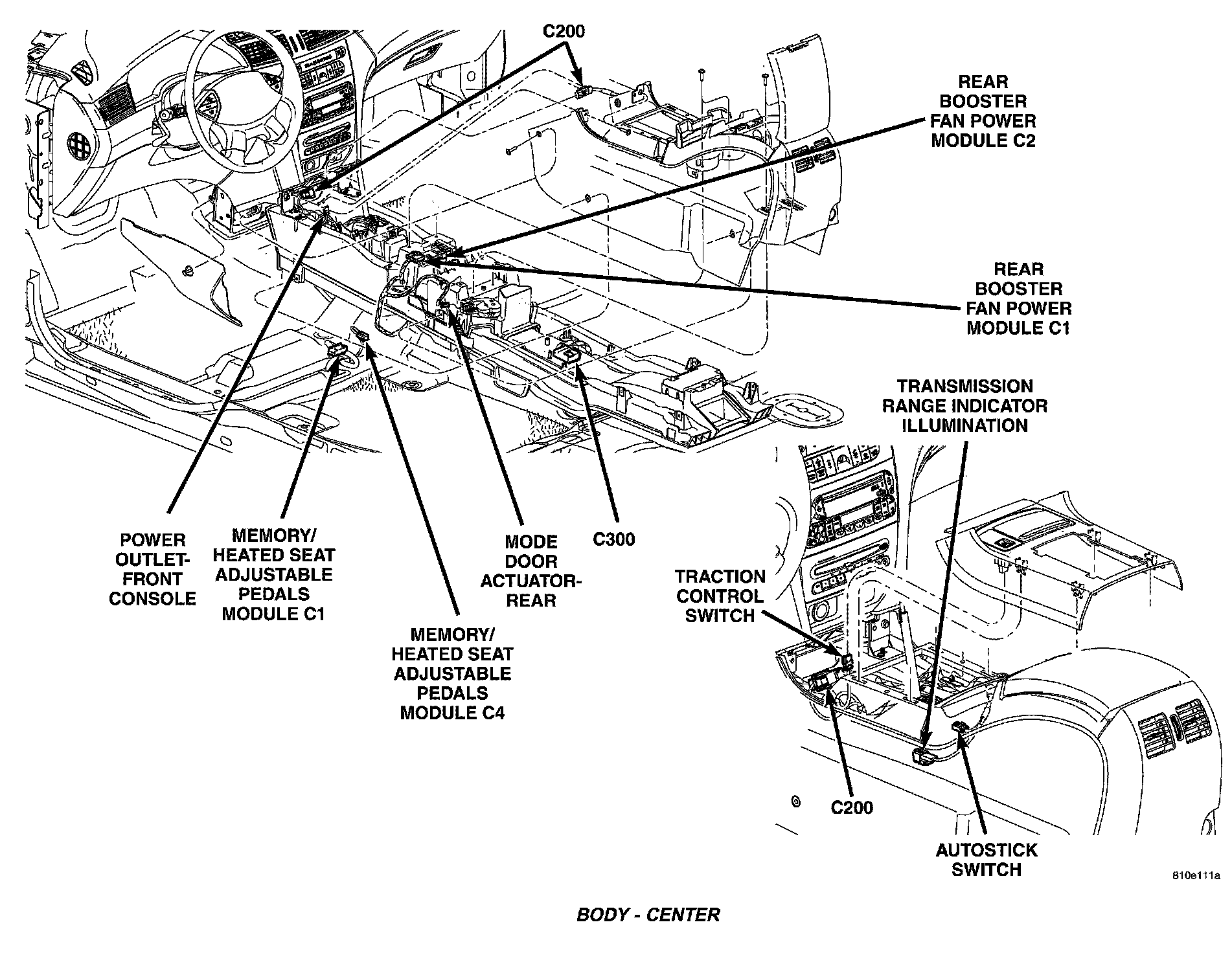

Body - Center:
