Timing Chain Tensioner: Service and Repair
TIMING CHAIN TENSIONERREMOVAL
1. Remove the generator

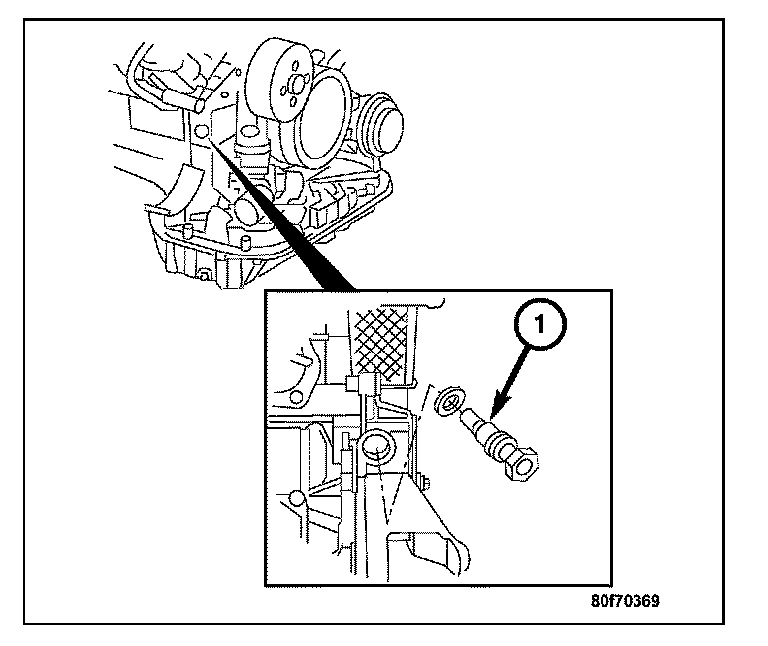

2. Remove the timing chain tensioner (1).
INSTALLATION
1. Install the timing chain tensioner. Tighten tensioner to 80 Nm (59 ft. lbs.).
2. Install the generator.
