Shift Interlock Solenoid: Adjustments
SHIFT INTERLOCK SOLENOIDDESCRIPTION
The shift interlock solenoid is not serviced separately. If the shift interlock solenoid becomes inoperable, the shift mechanism must be replaced.
ADJUSTMENTS - SHIFT INTERLOCK SOLENOID
1. Set the parking brake.
2. Remove the front center console.
3. Remove the shifter outer cover.

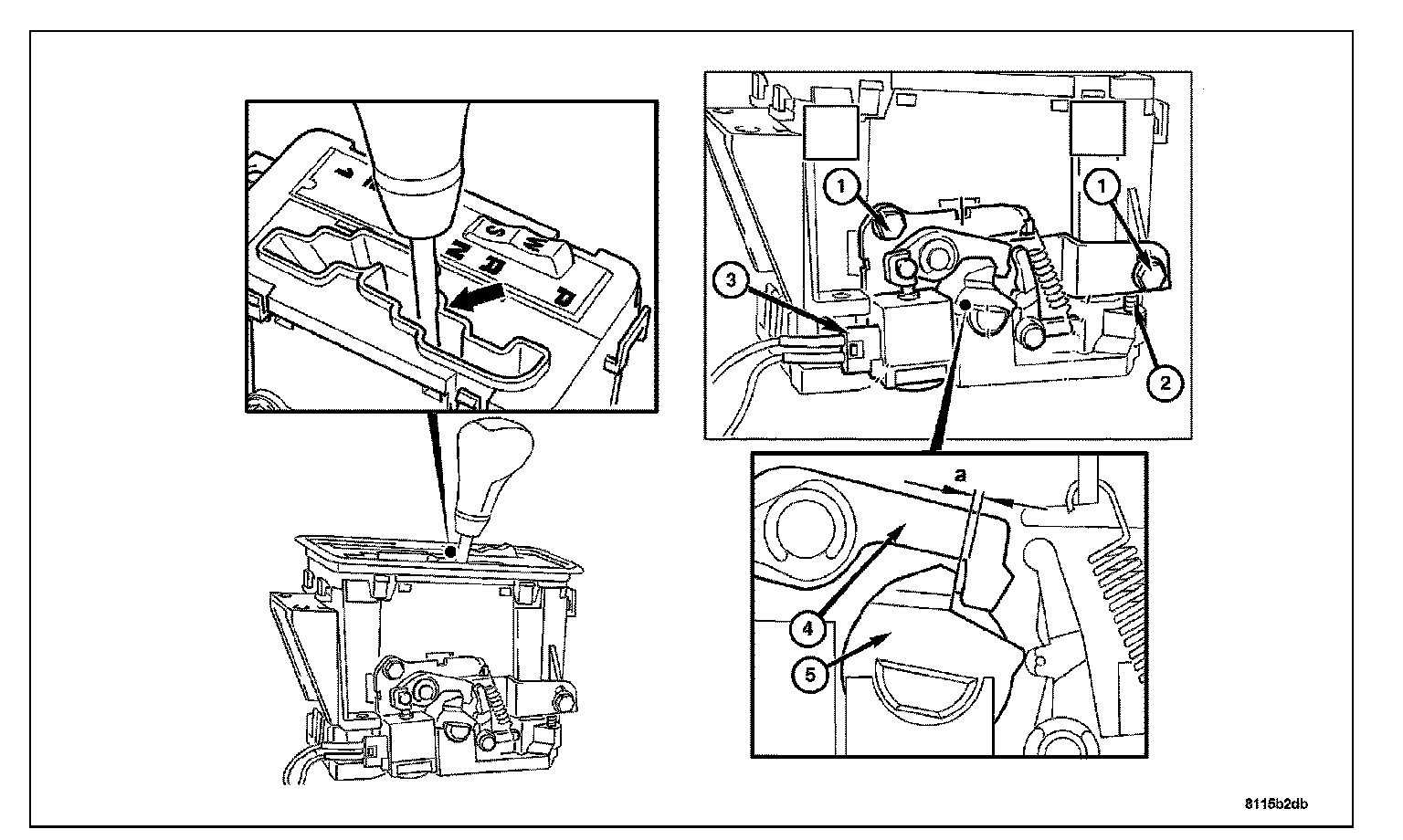

4. Set the selector lever to neutral. Lever must be touching the slot (arrow).
5. Energize the interlock solenoid (3).
6. Loosen the bolts (1).
7. Adjust the gap between the locking lever (4) and the cam plate (5) to 0.02 mm using the adjusting screw (2).
8. Tighten the bolts (1) to 3.5 Nm (31 in. lbs.).
9. Install the shifter outer cover.
10. Install the console.
