Windshield Washer Pump: Service and Repair

WASHER PUMP MOTOR

REMOVAL

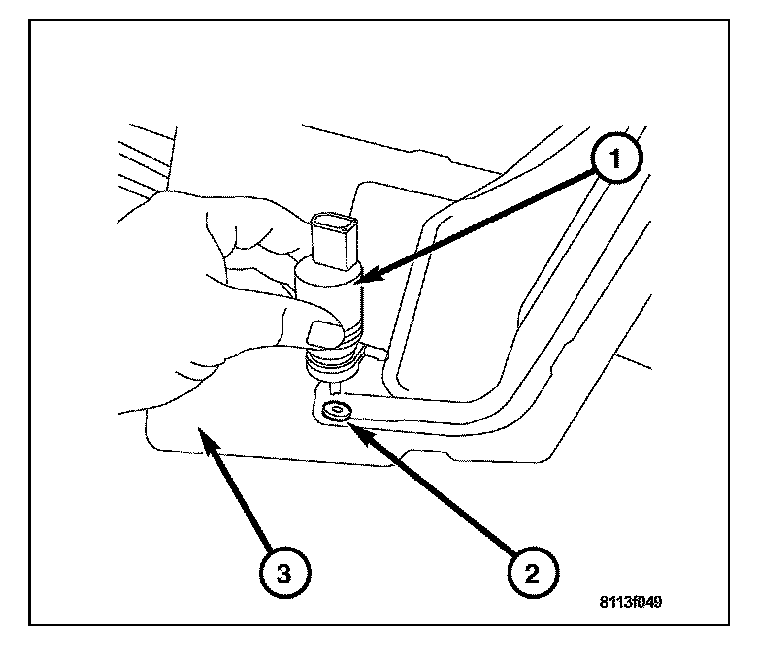

1. Remove the washer reservoir (3).
2. Carefully pry upward on the body of the washer pump motor (1) and pull it out of the rubber grommet (2).

INSTALLATION

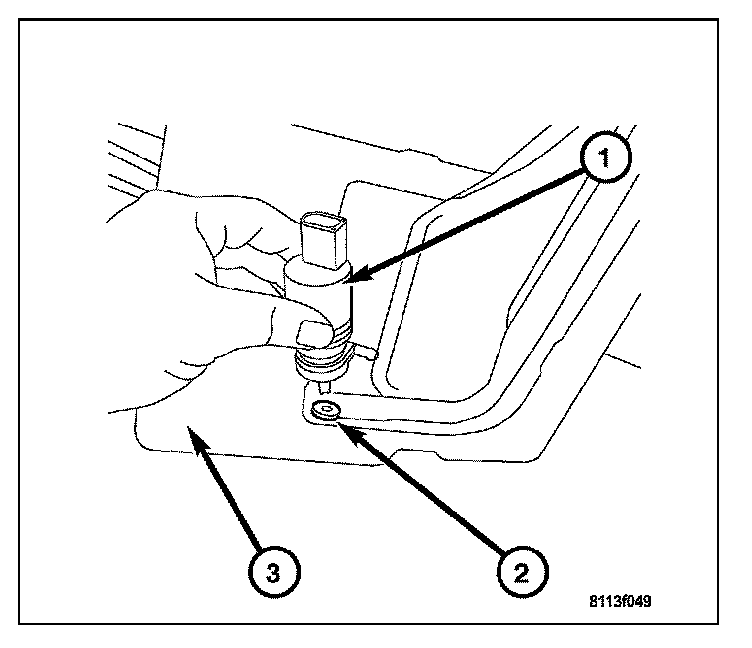

1. Insert the washer pump motor (1) into the rubber grommet (2) at the base of the washer reservoir (3).
2. Press the washer pump motor downward until fully seated.
3. Install the washer reservoir.
