Seat Temperature Control Module: Locations

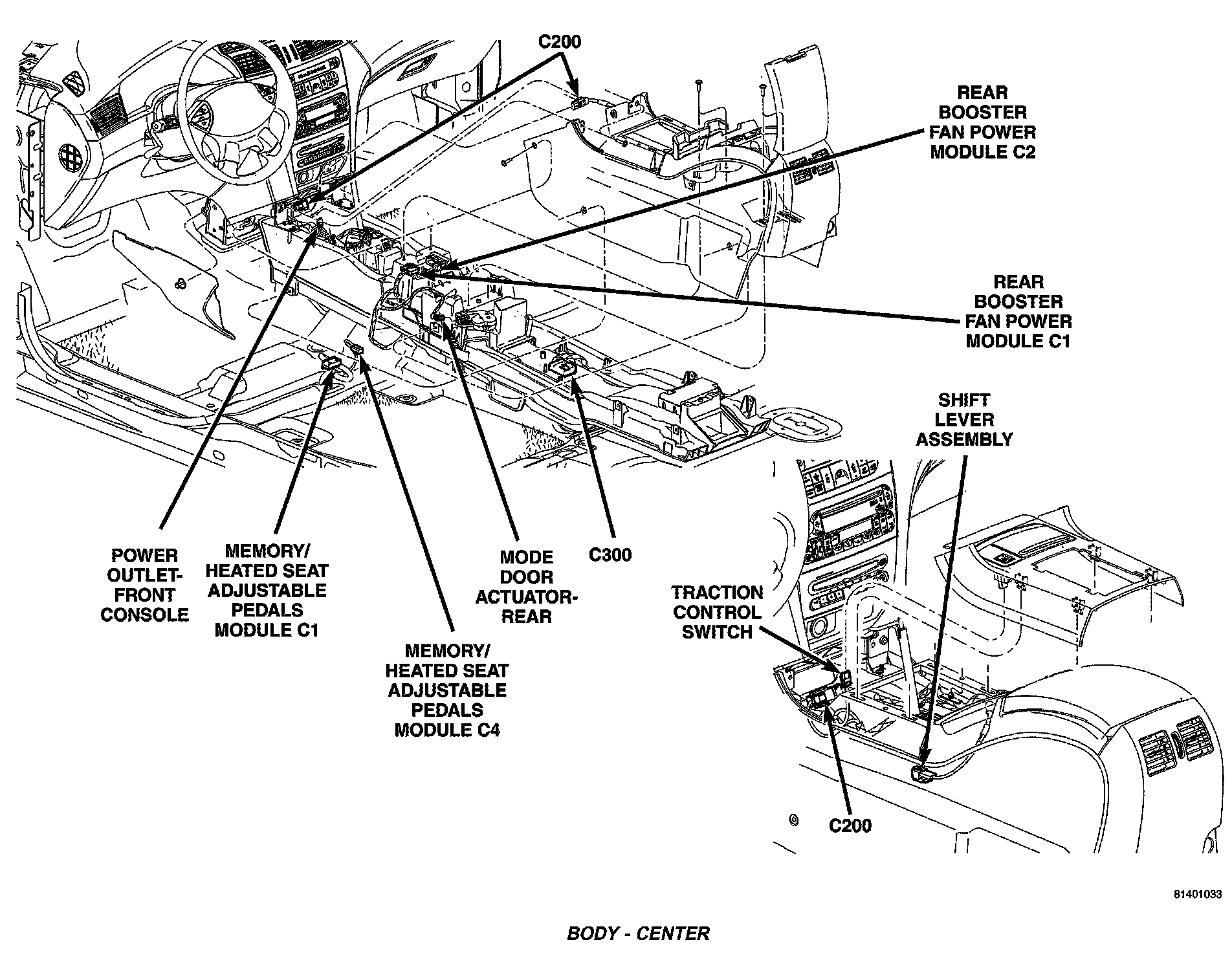

Body - Center:

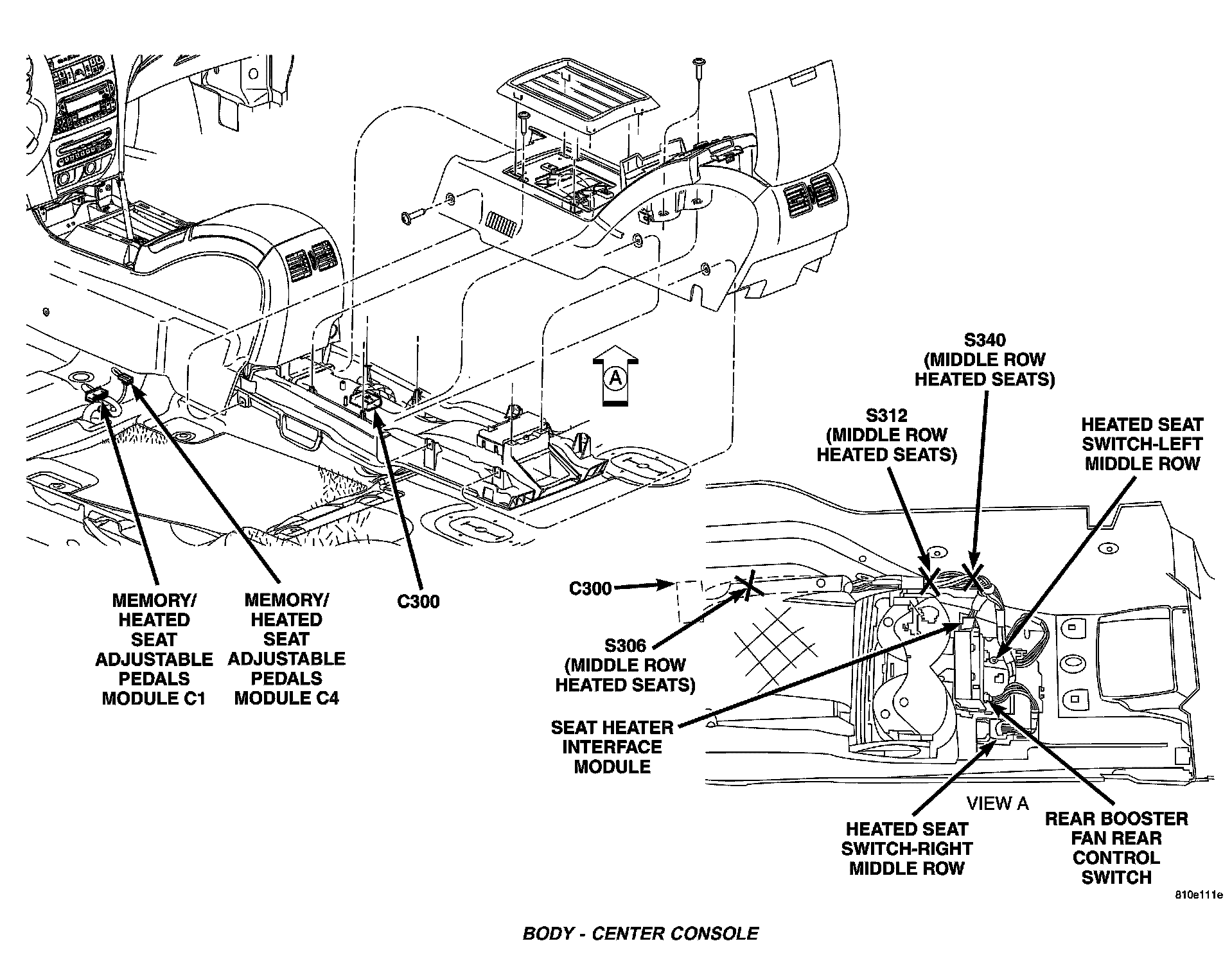

Body - Center Console:



Body:

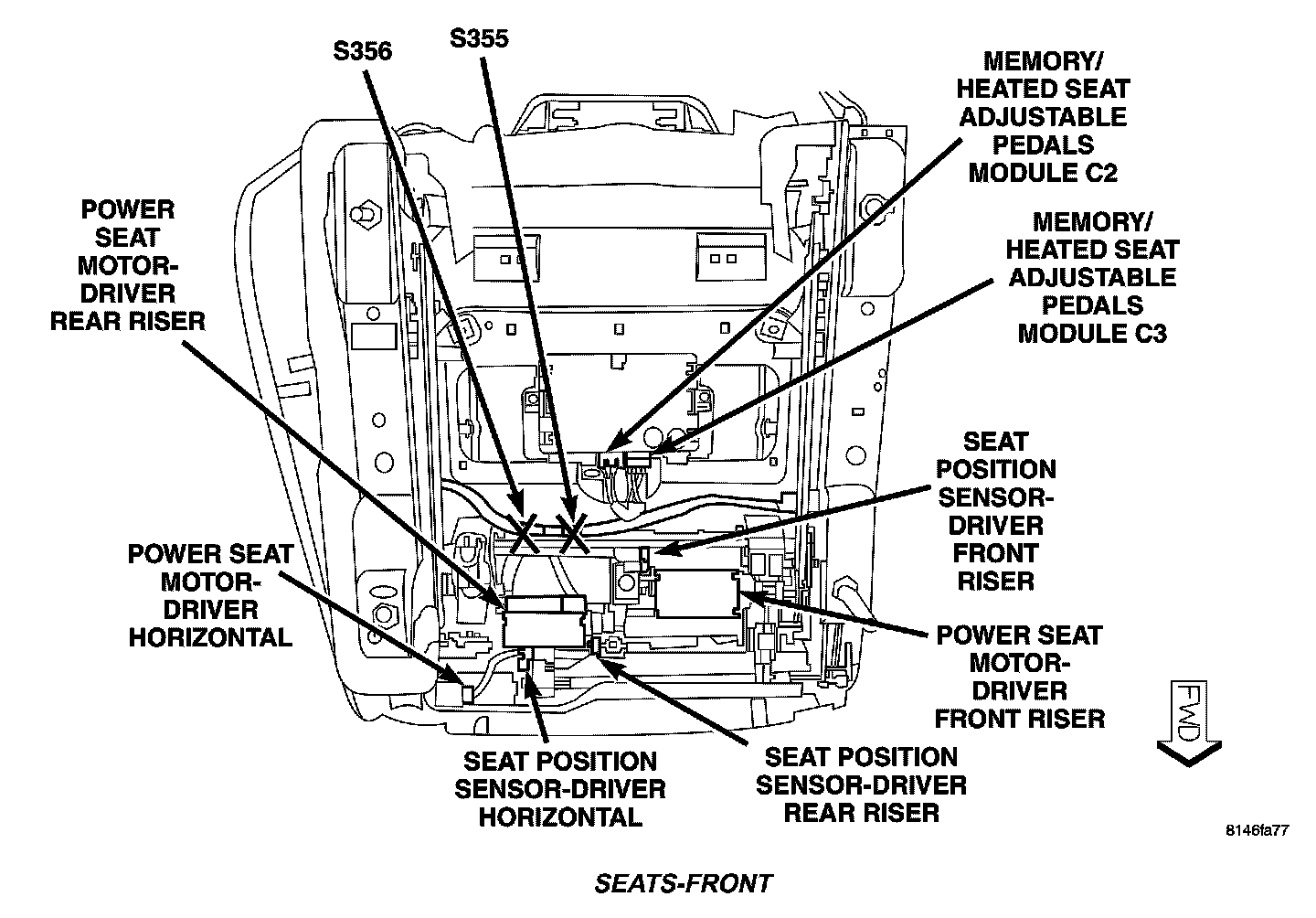

Seats - Front:
