Connector Views
>>
Air Bag Control Module
>>
Occupant Classification Module
Occupant Classification Module

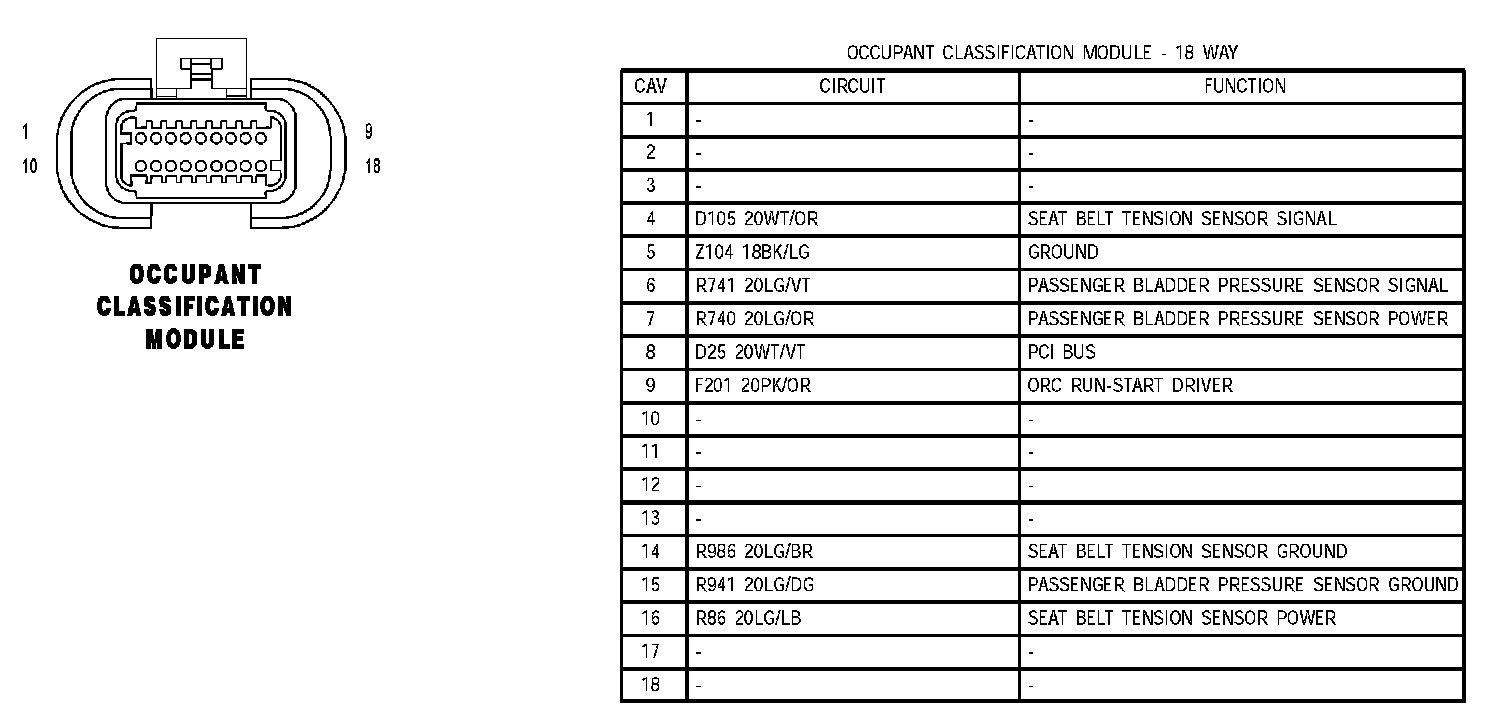

Occupant Classification Module:
