Control Assembly, HVAC
Control Assembly, HVAC

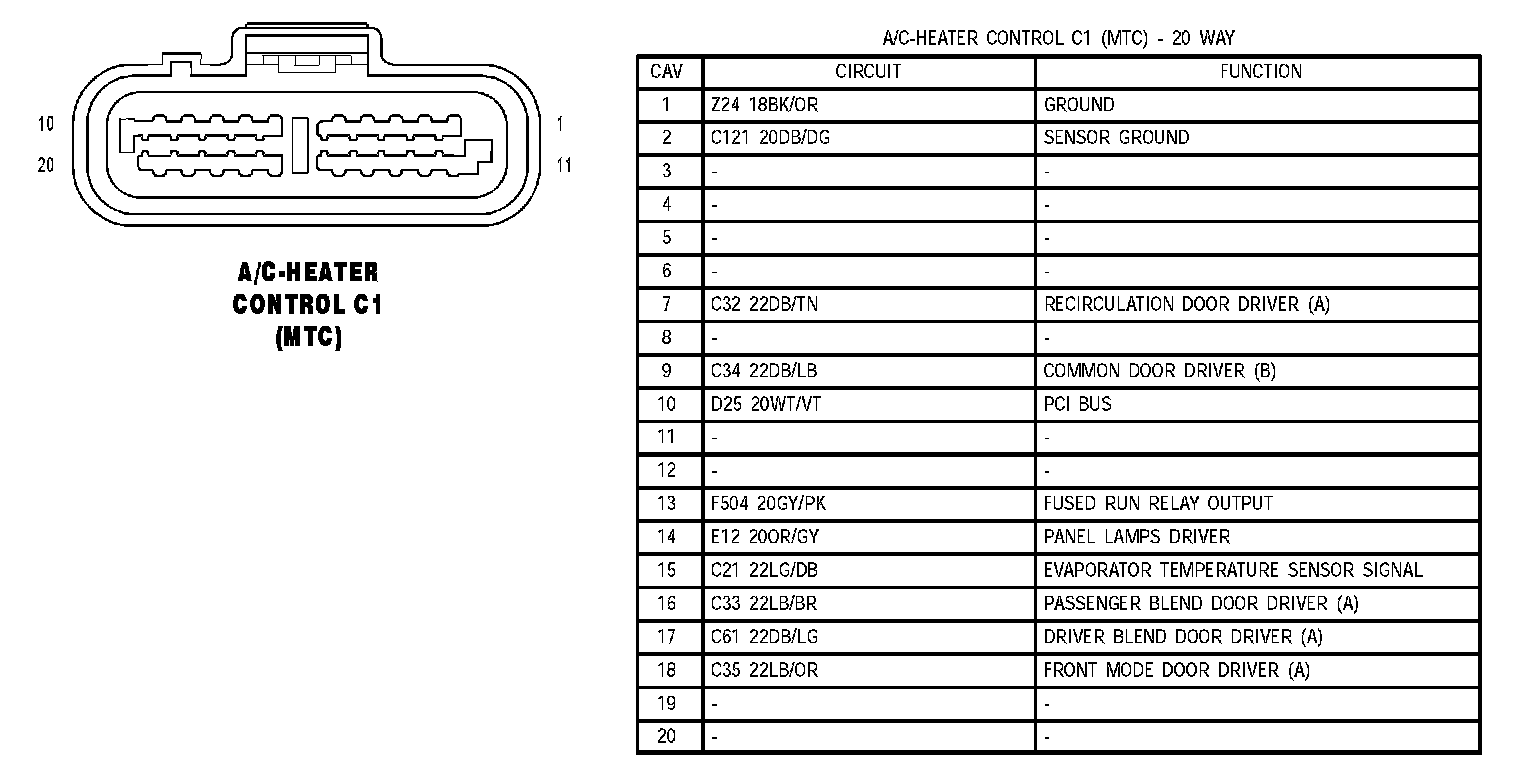

A/C Heater Control C1 (MTC):

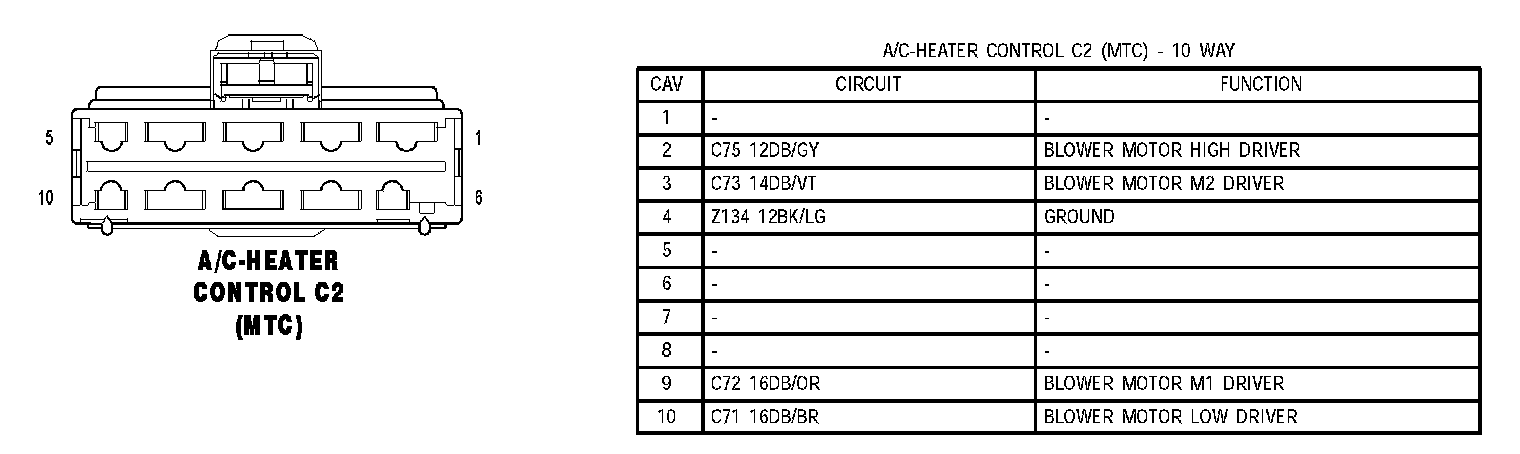

A/C Heater Control C2 (MTC):

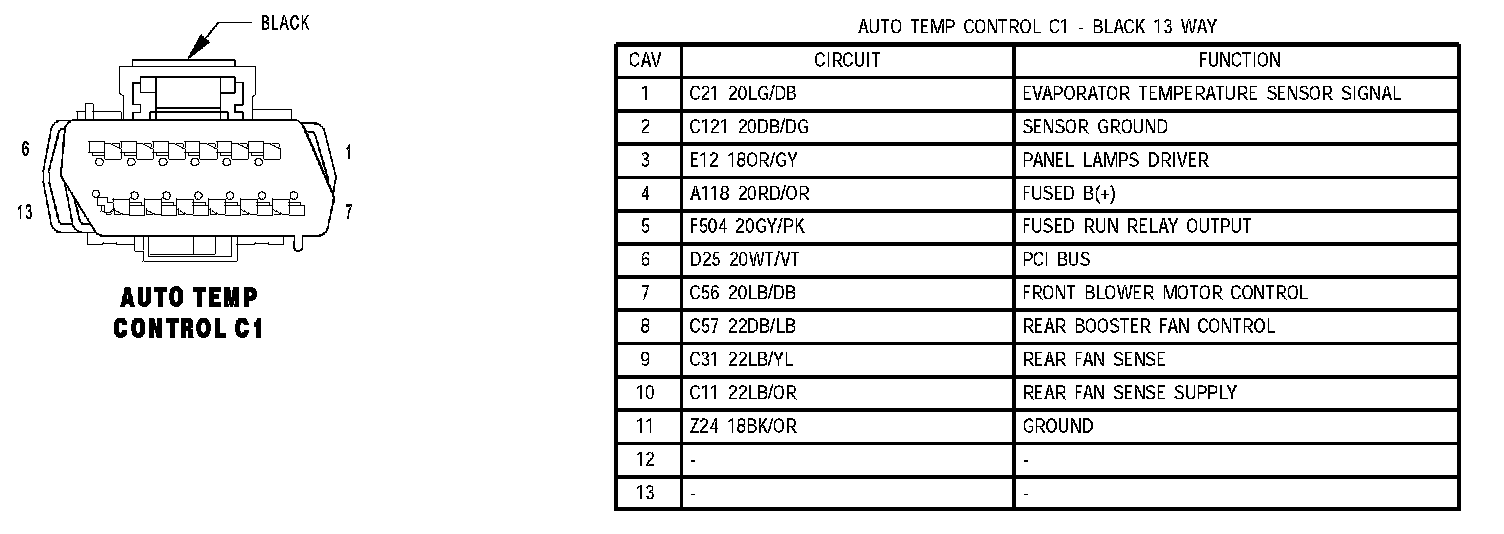

Auto Temp Control C1:

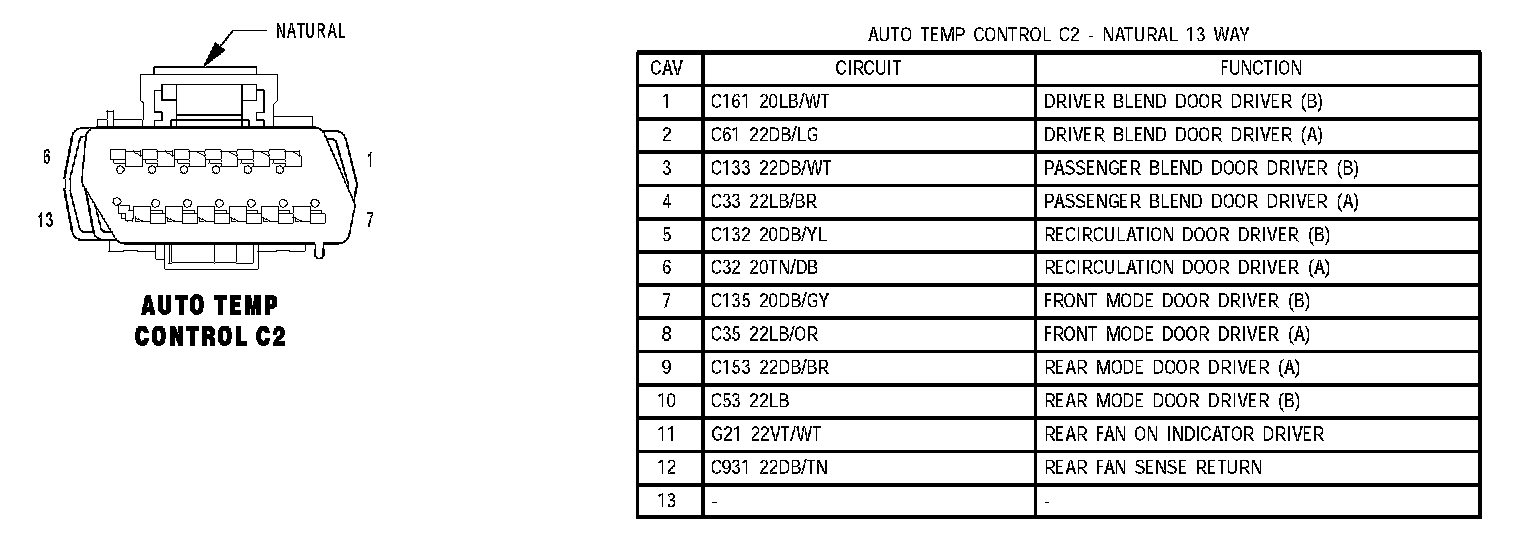

Auto Temp Control C2:
