Door Switch

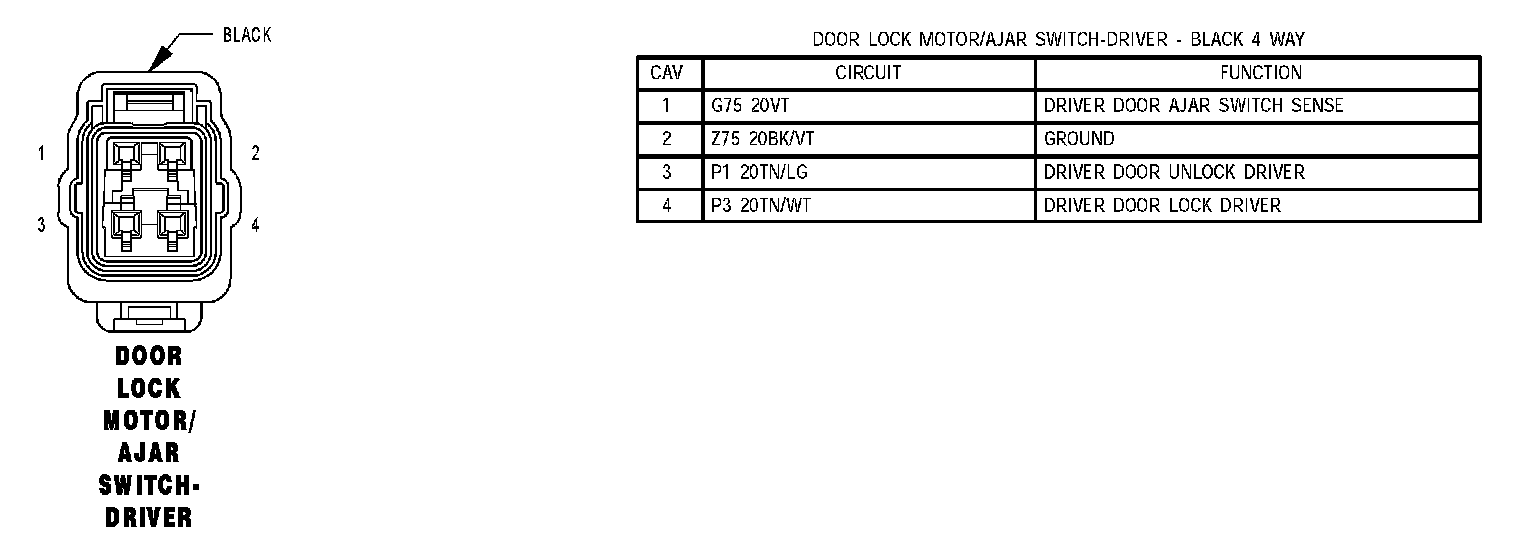

Door Lock Motor/Ajar Switch Driver:

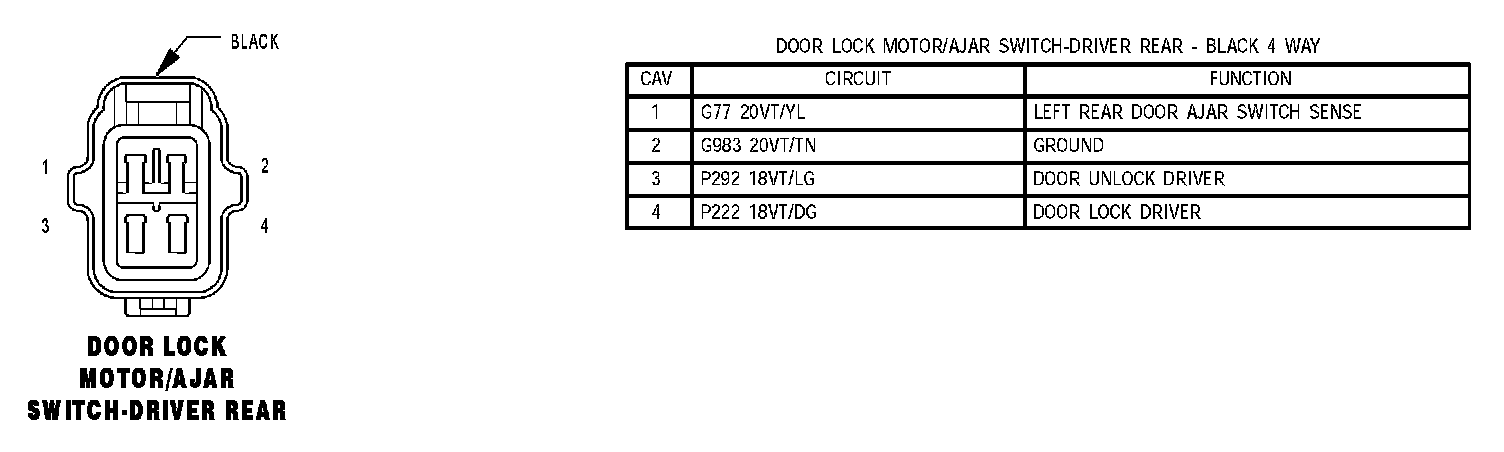

Door Lock Motor/Ajar Switch Driver Rear:

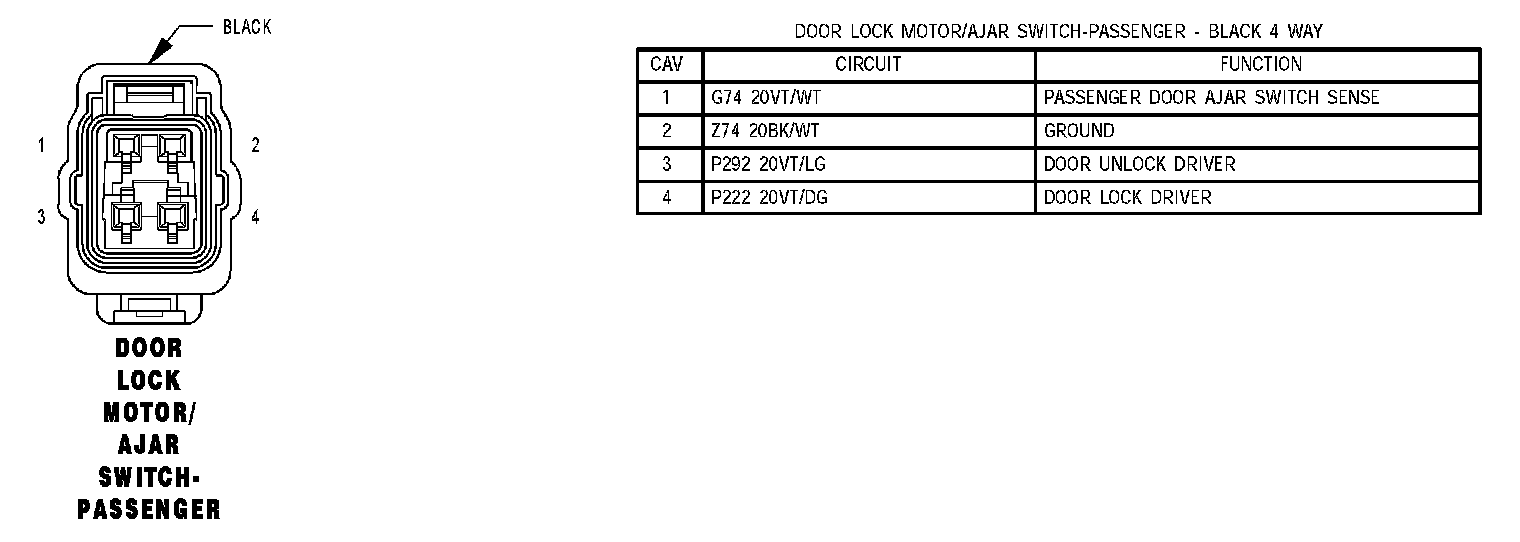

Door Lock Motor/Ajar Switch Passenger:

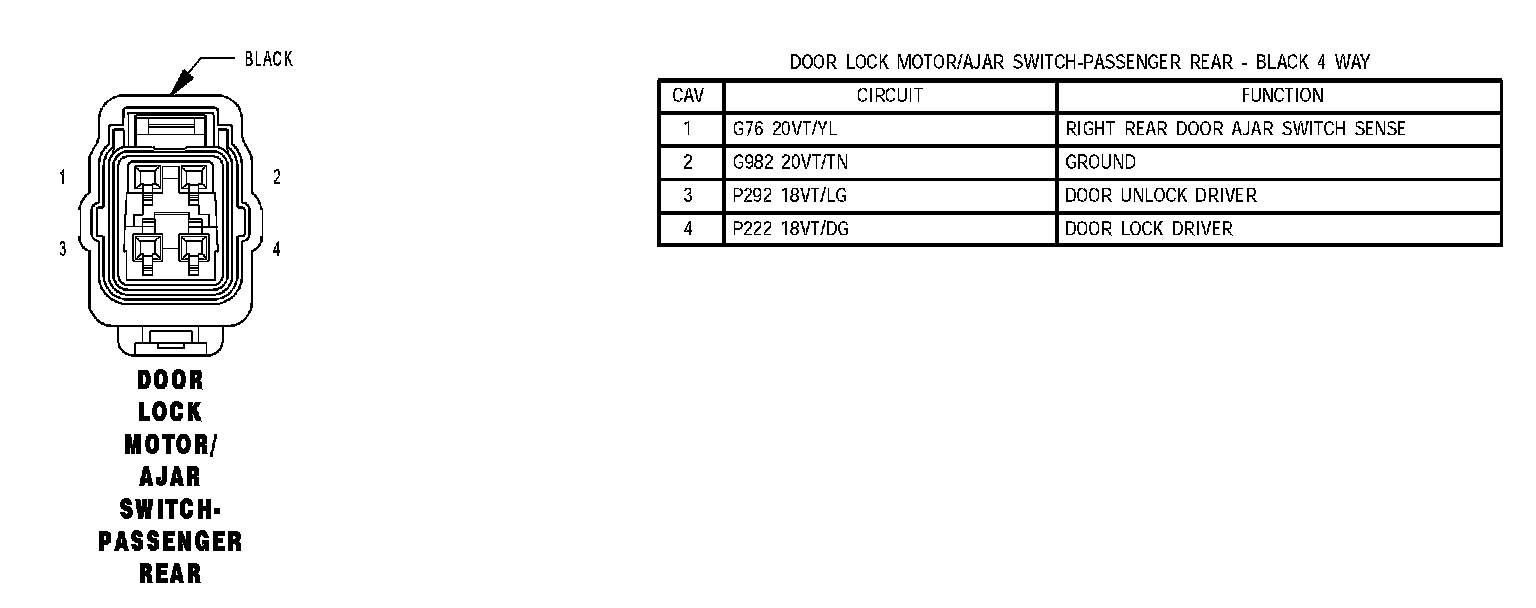

Door Lock Motor/Ajar Switch Passenger Rear:
