Electronic Brake Control Module

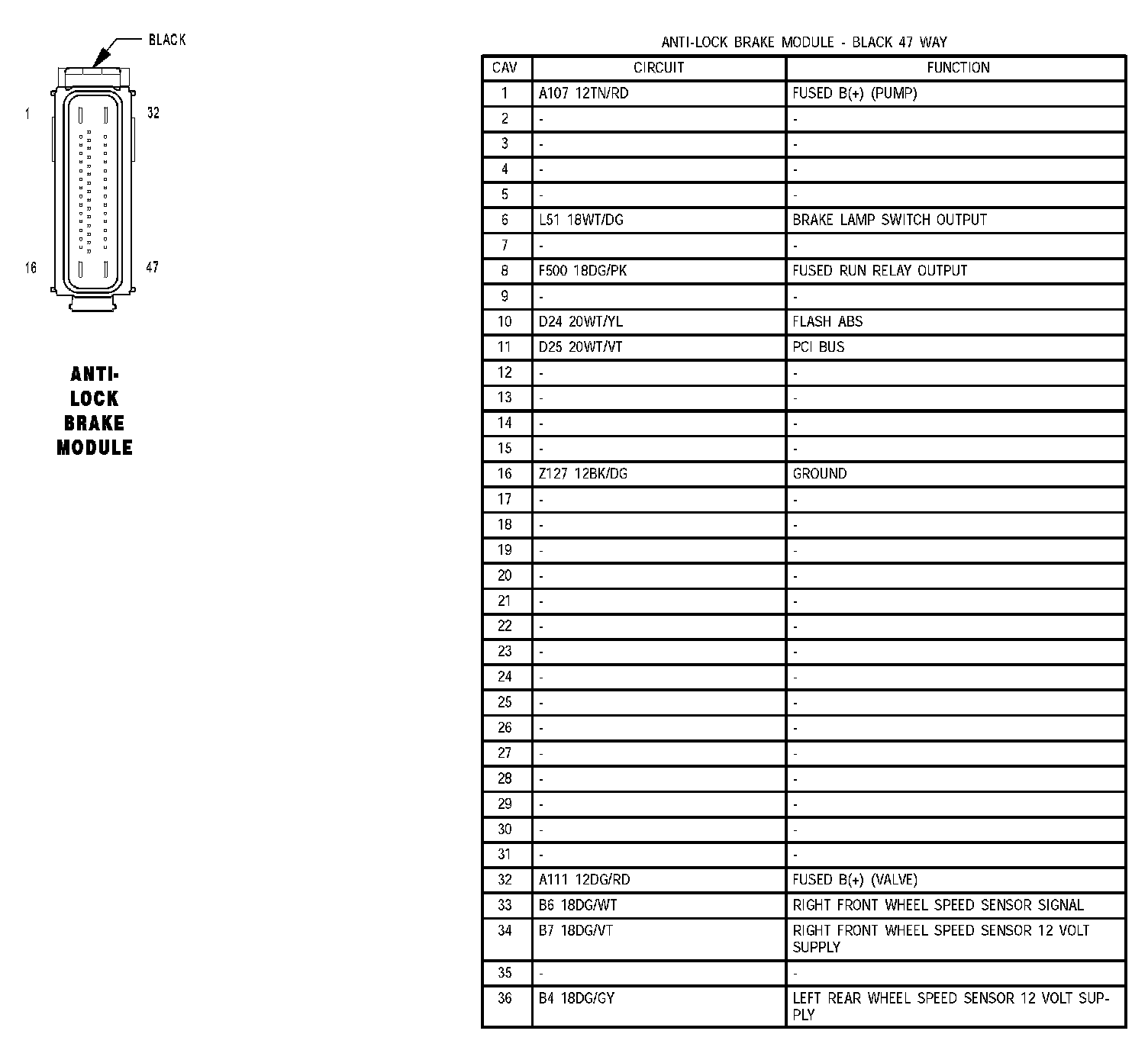

Antilock Brake Module (Part 1 Of 2):

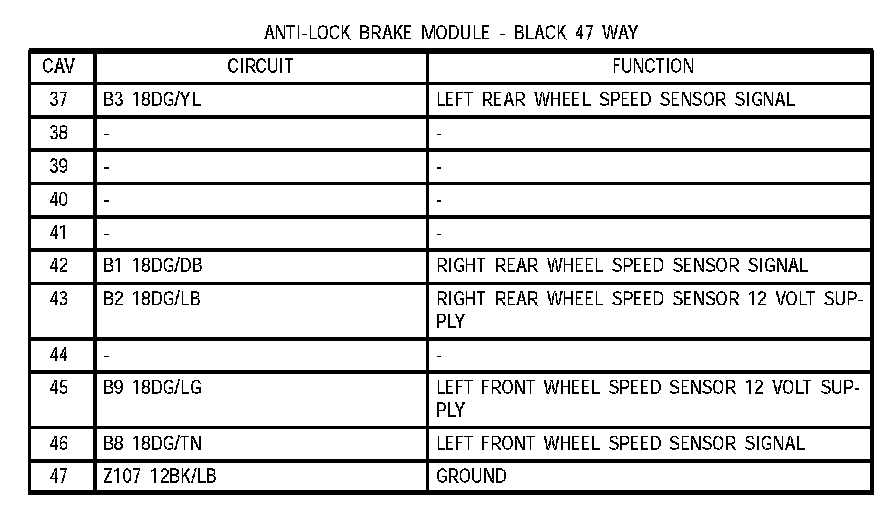

Antilock Brake Module (Part 2 Of 2):
