Impact Sensor
Impact Sensor

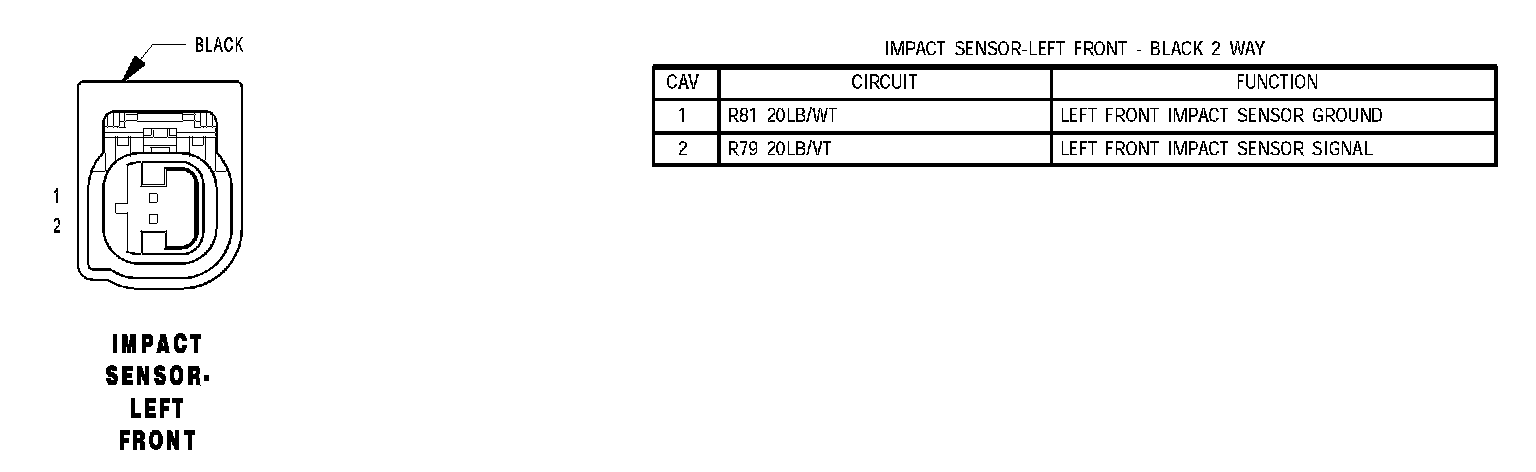

Impact Sensor Left Front:

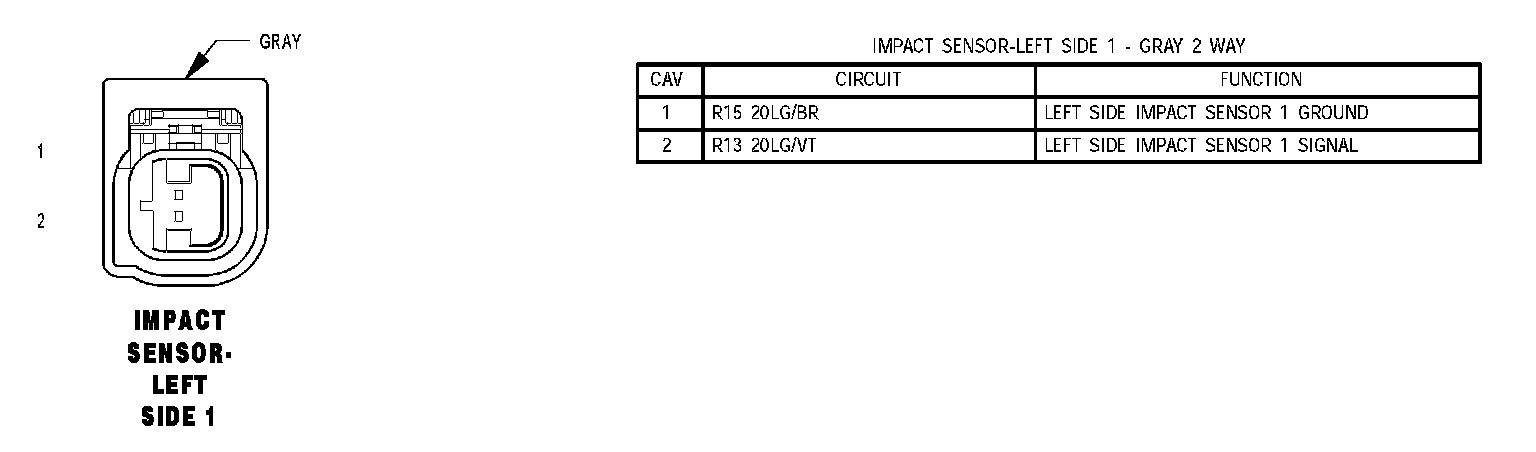

Impact Sensor Left Side 1:
Impact Sensor Left Side 2:
Impact Sensor Right Front:

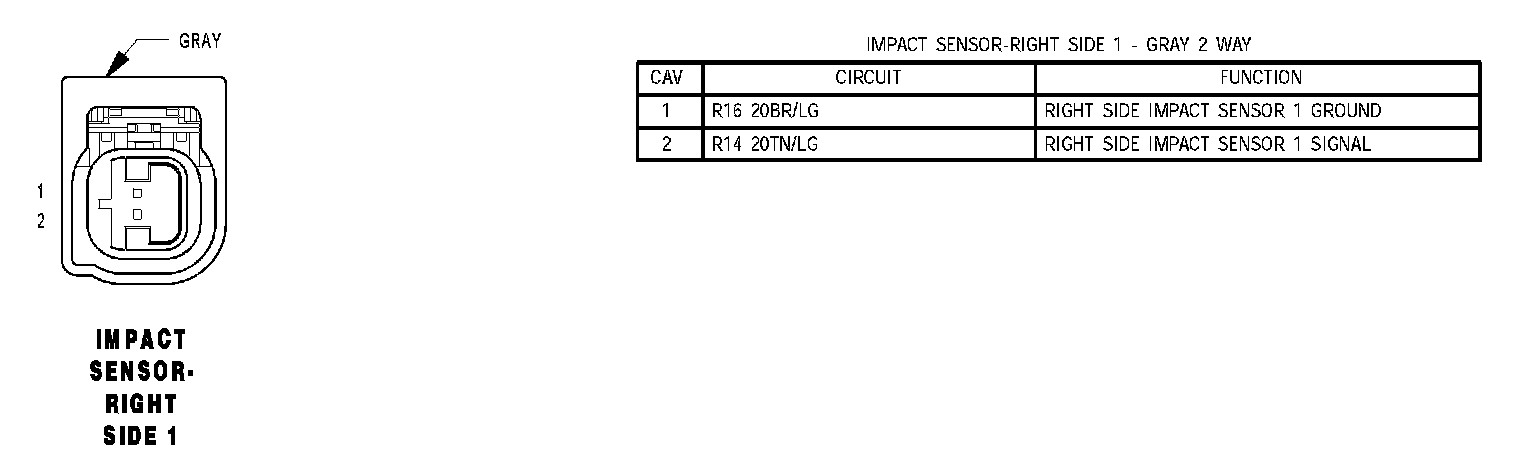

Impact Sensor Right Side 1:

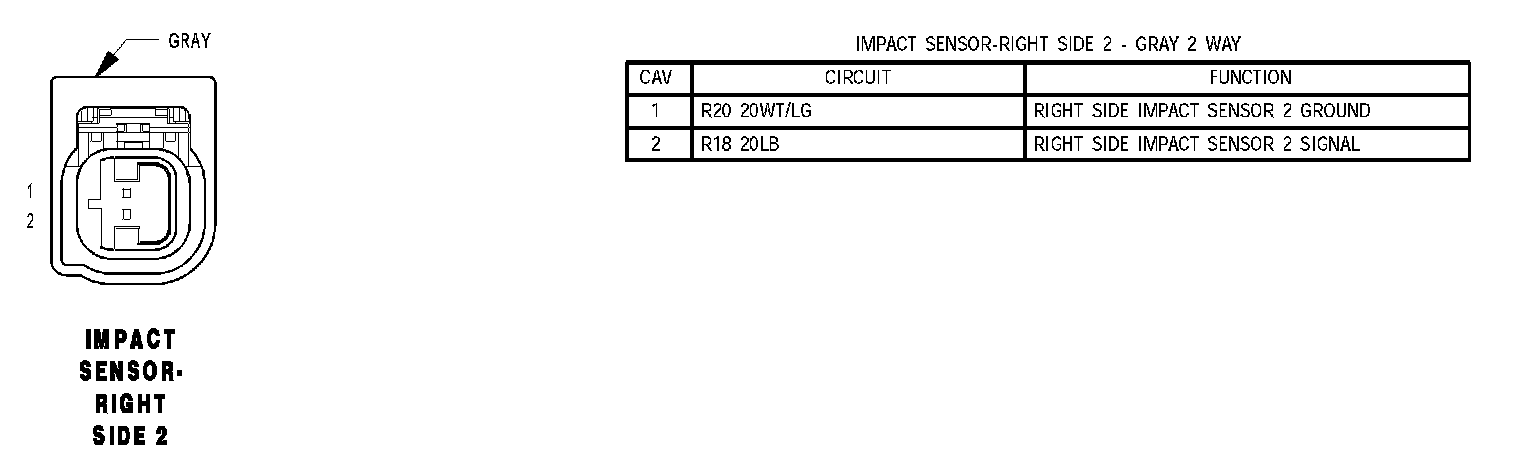

Impact Sensor Right Side 2:
