Map Light

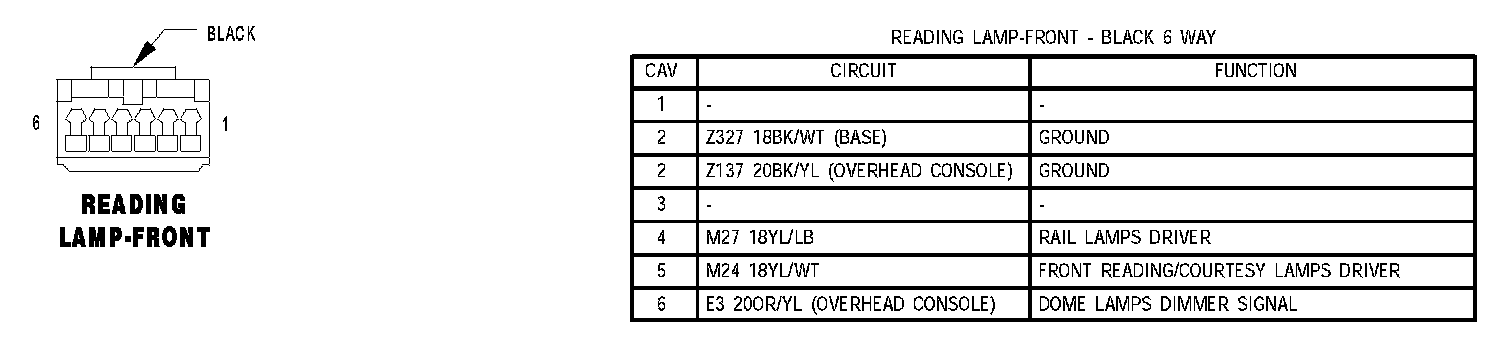

Reading Lamp Front:

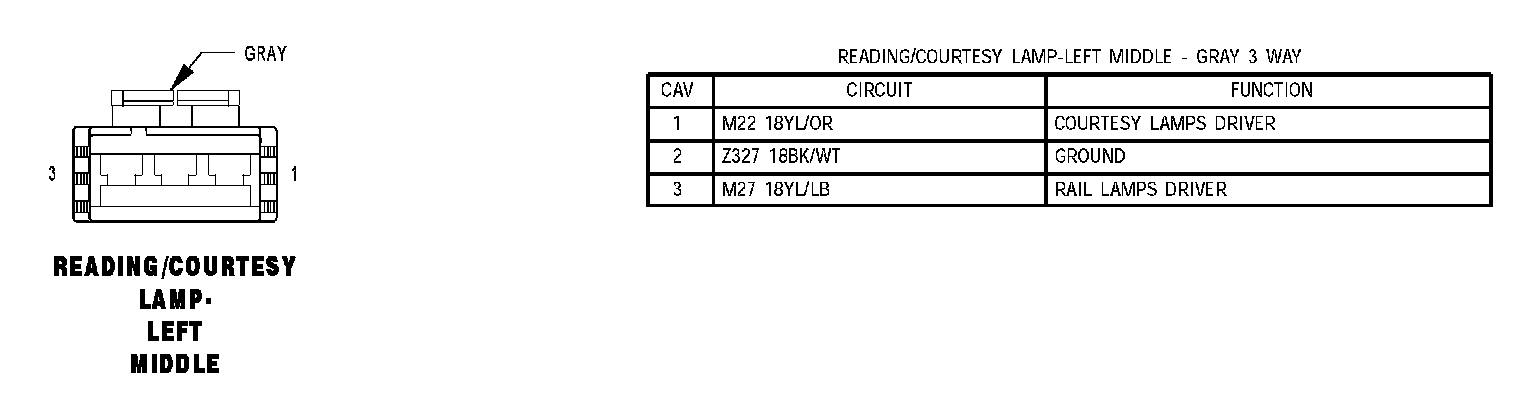

Reading/Courtesy Lamp Left Middle:

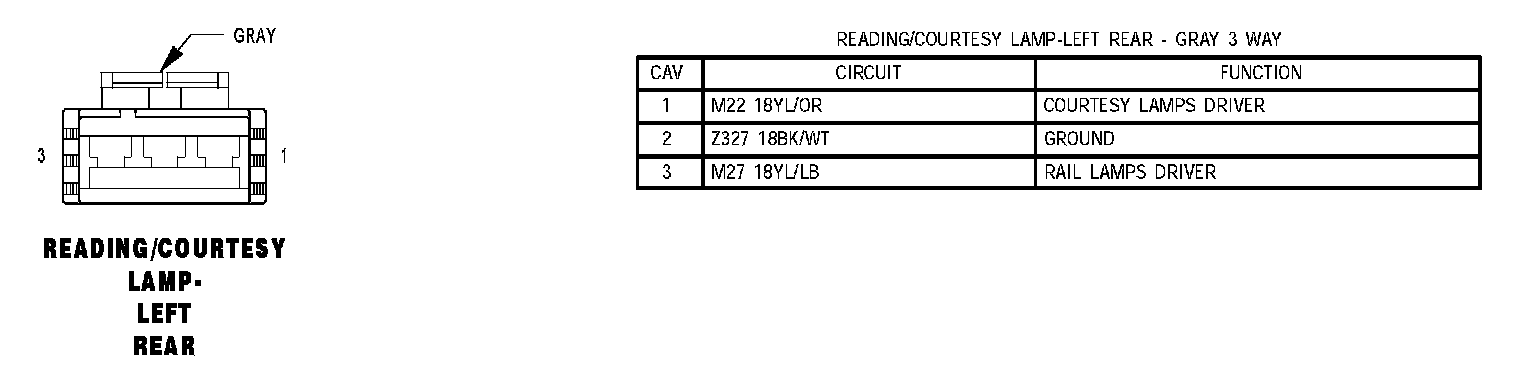

Reading/Courtesy Lamp Left Rear:

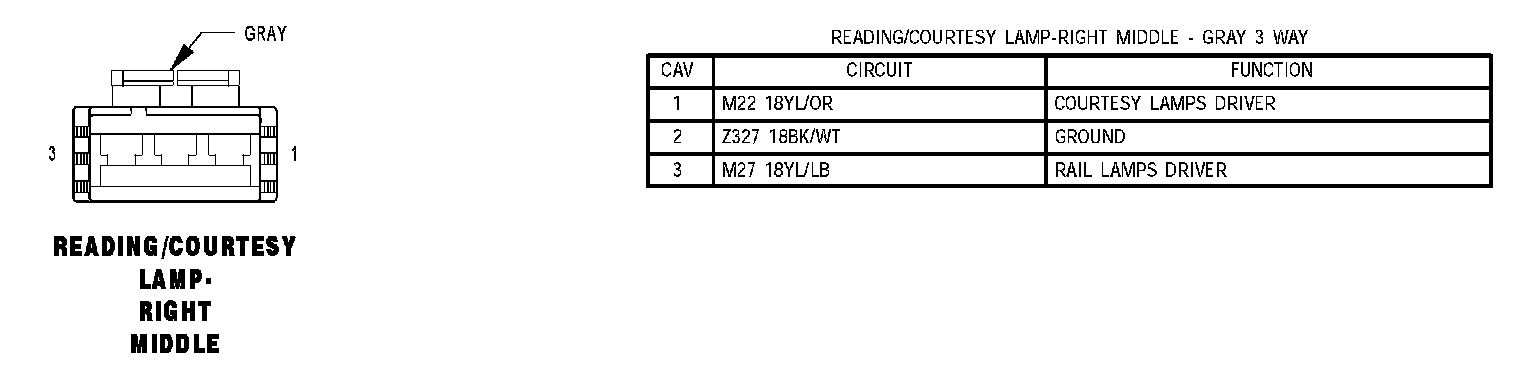

Reading/Courtesy Lamp Right Middle:

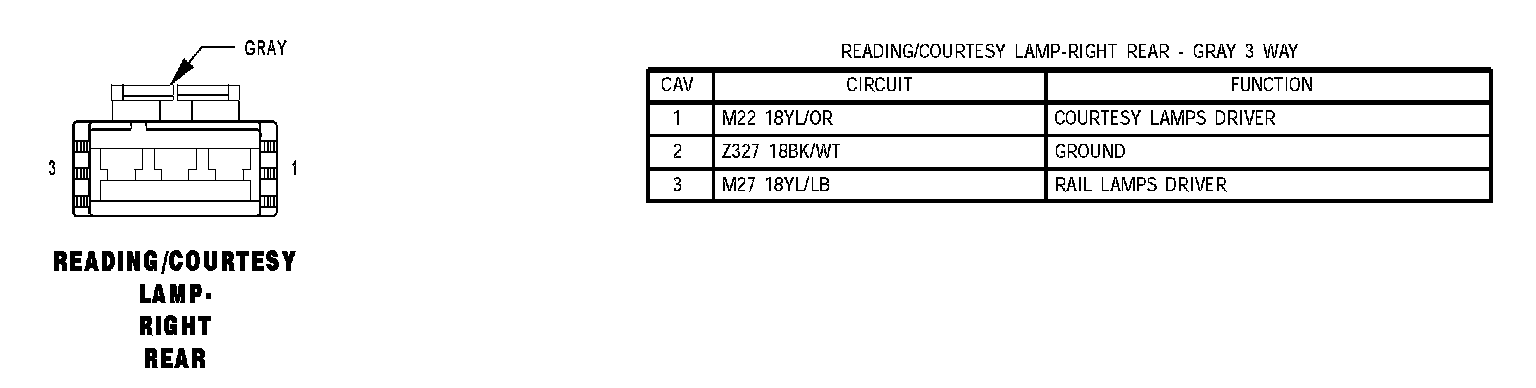

Reading/Courtesy Lamp Right Rear:
