Home
>>
Chrysler
>>
2006
>>
Pacifica V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor
Oxygen Sensor

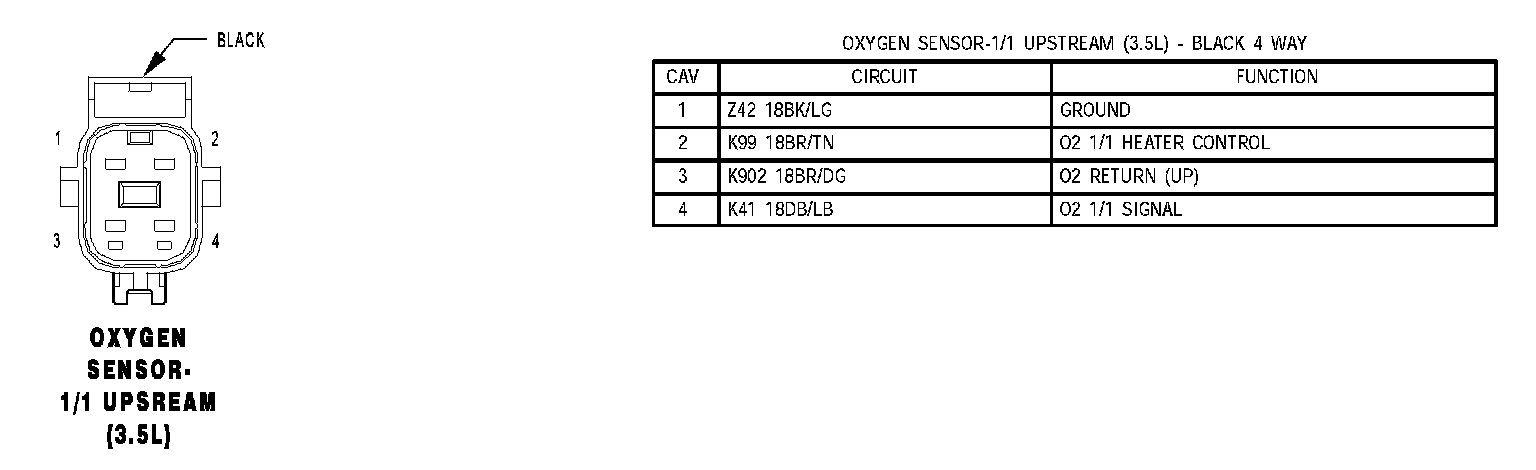

Oxygen Sensor 1/1 Upstream (3.5L):

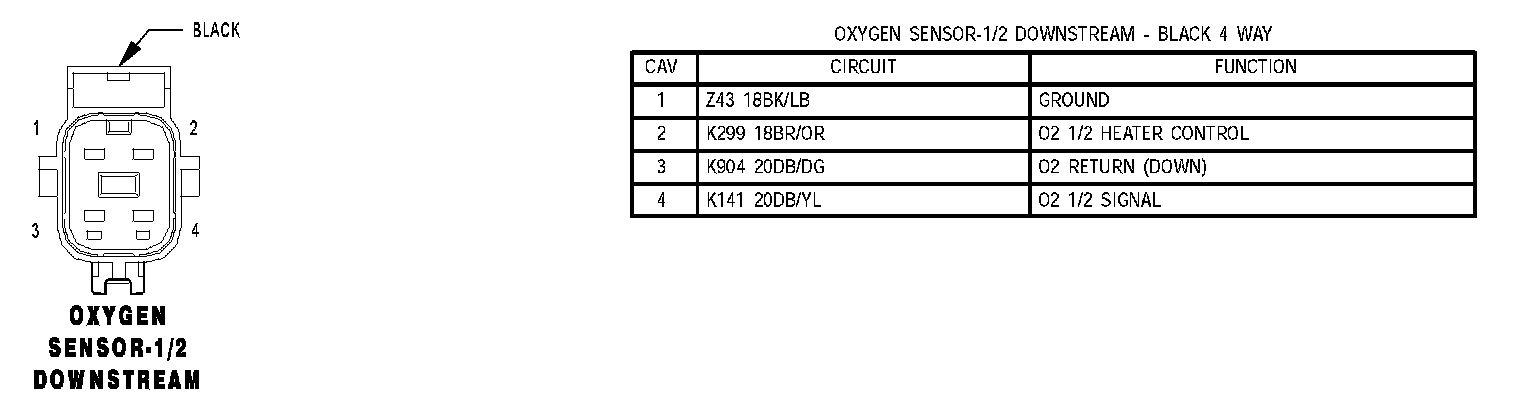

Oxygen Sensor 1/2 Downstream:
