Power Seat Motor Position Sensor

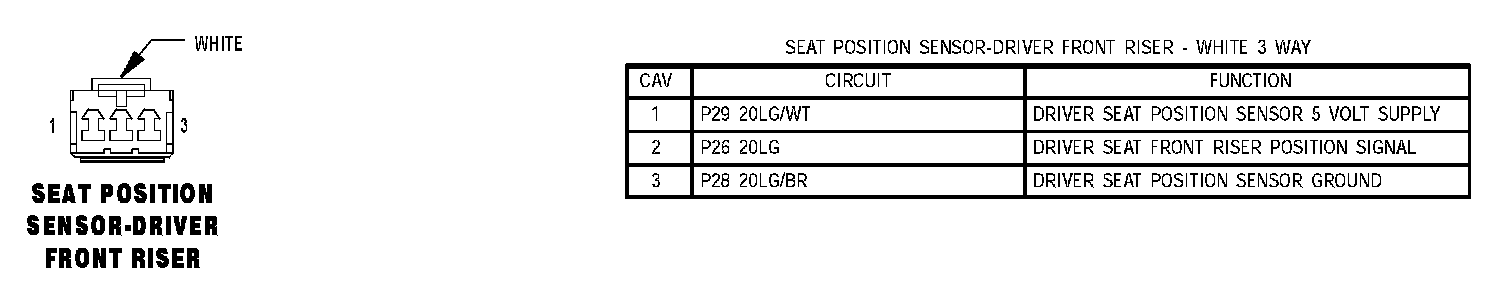

Seat Position Sensor Driver Front Riser:



Seat Position Sensor Driver Horizontal:

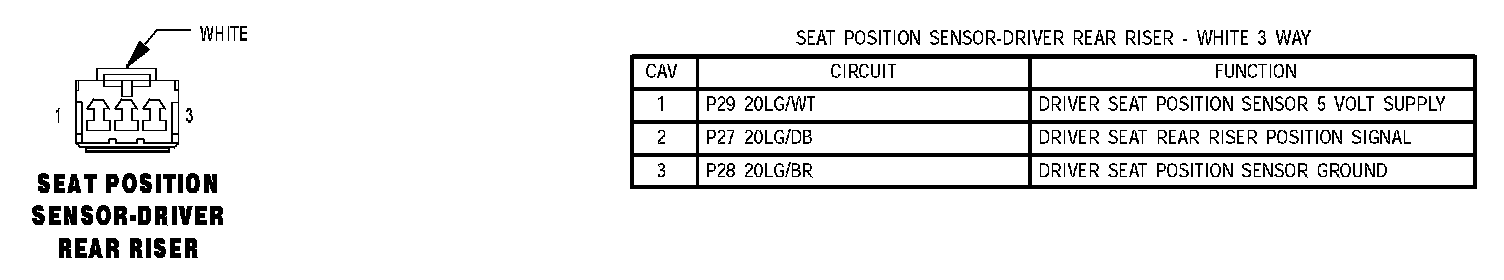

Seat Position Sensor Driver Rear Riser:

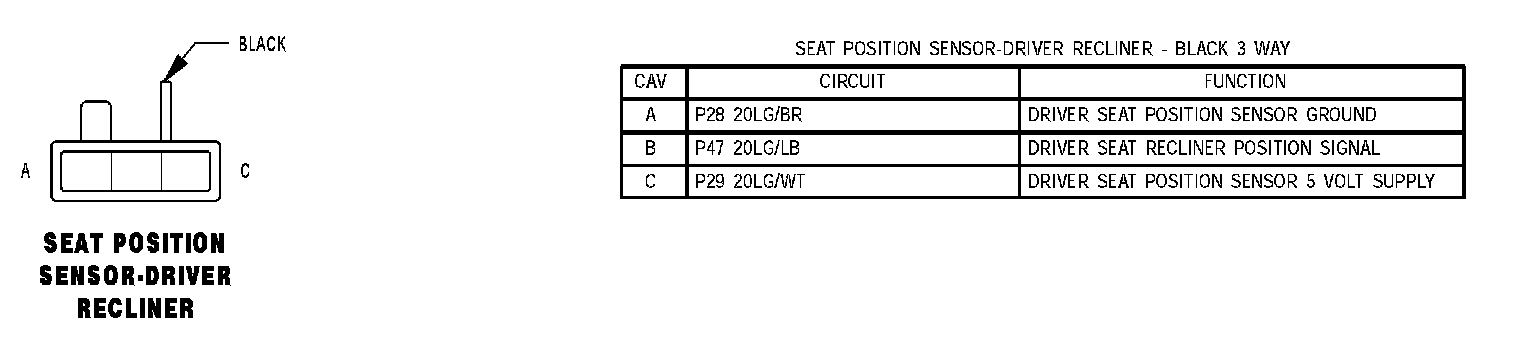

Seat Position Sensor Driver Recliner:
