Seat Temperature Element

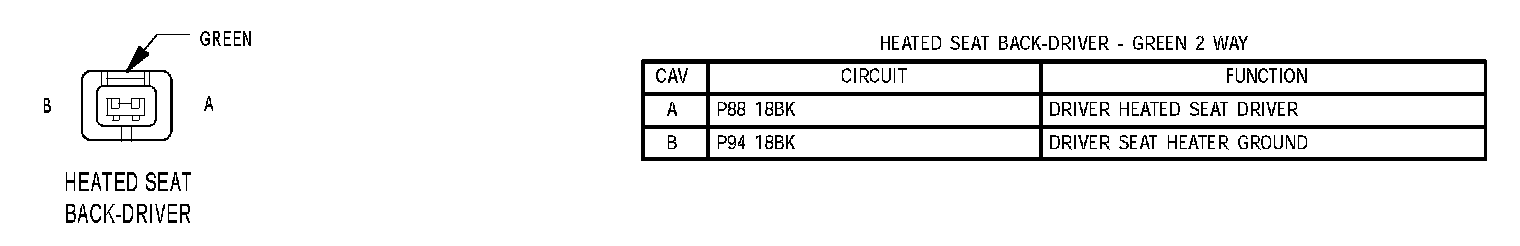

Heated Seat Back Driver:

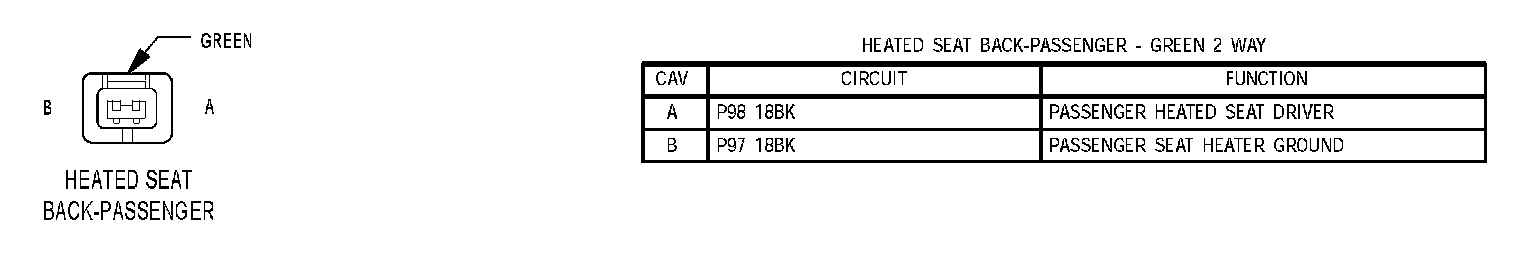

Heated Seat Back Passenger:

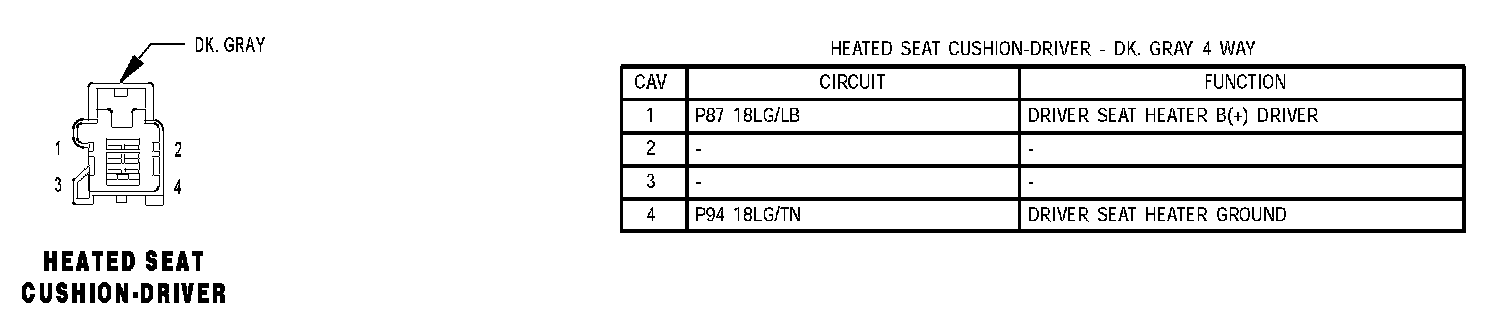

Heated Seat Cushion Driver:



Heated Seat Cushion Passenger:
