Seat Temperature Switch

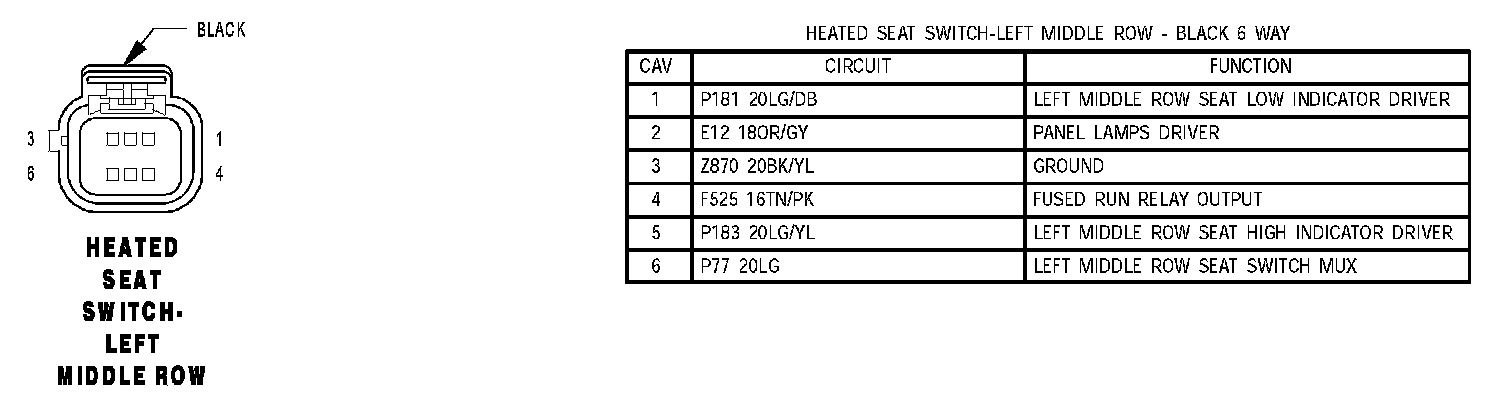

Heated Seat Switch Left Middle Row:

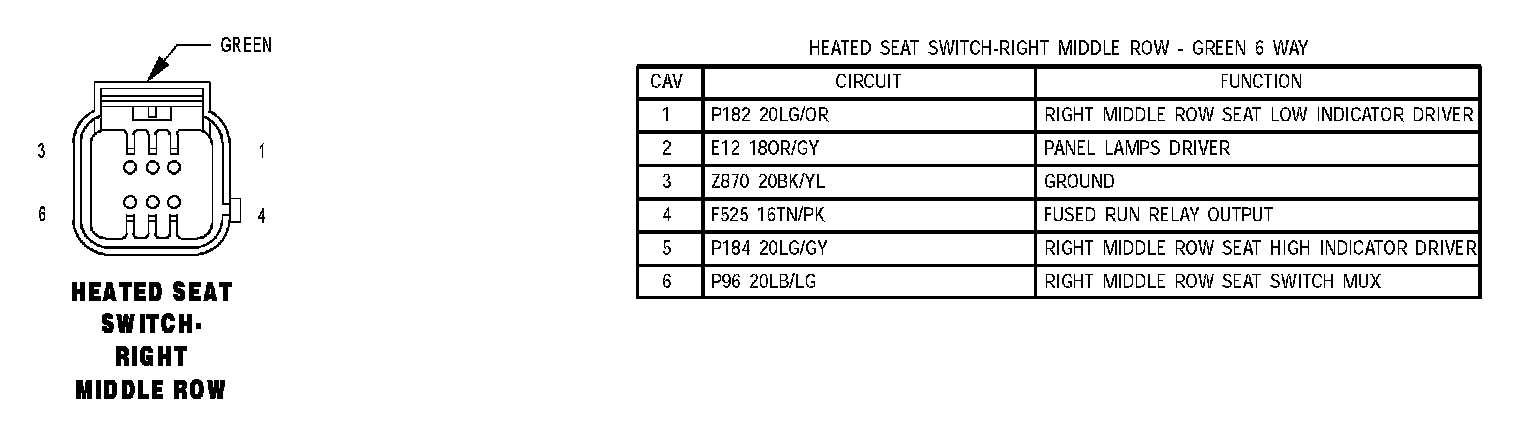

Heated Seat Switch Right Middle Row:

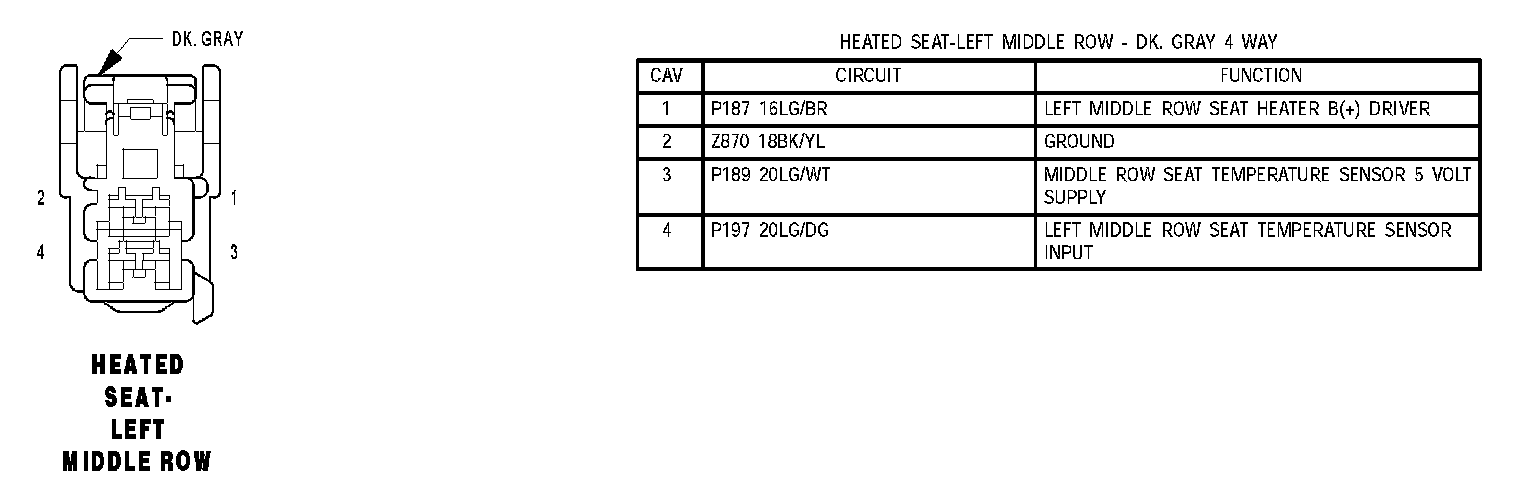

Heated Seat Left Middle Row:

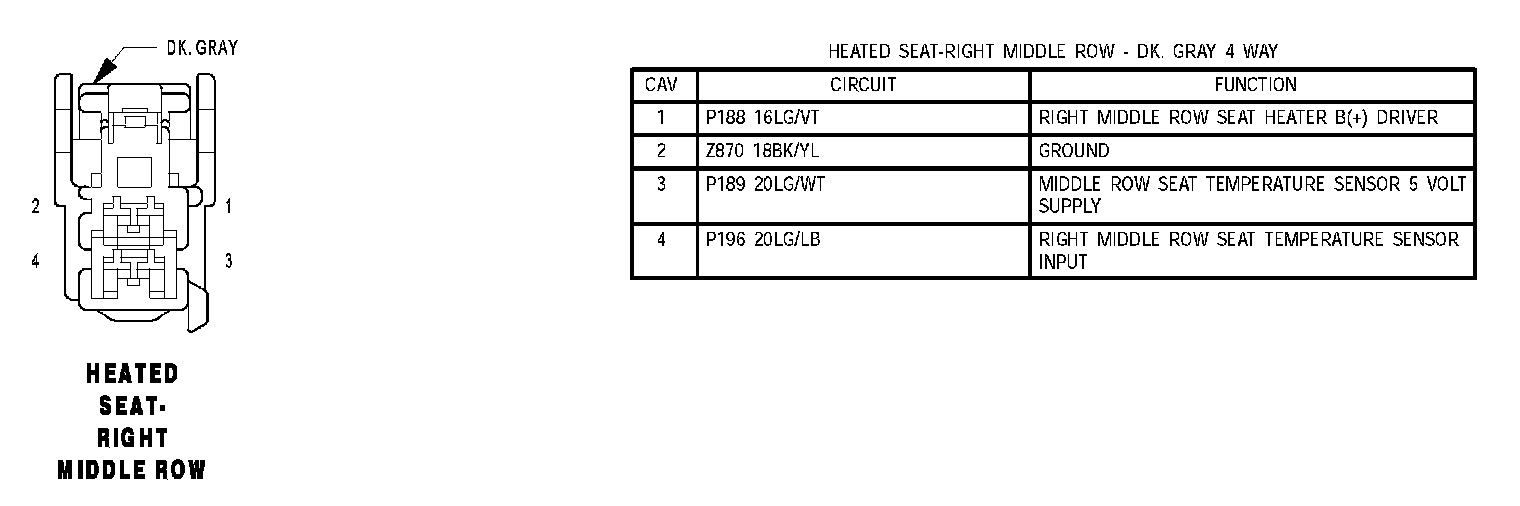

Heated Seat Right Middle Row:
