Compressor Clutch Relay: Service and Repair

A/C COMPRESSOR CLUTCH RELAY

NOTE: Refer to the fuse and relay map on the inside of the integrated power module (IPM) cover for A/C compressor clutch relay location.

REMOVAL
1. Disconnect and isolate the negative battery cable.

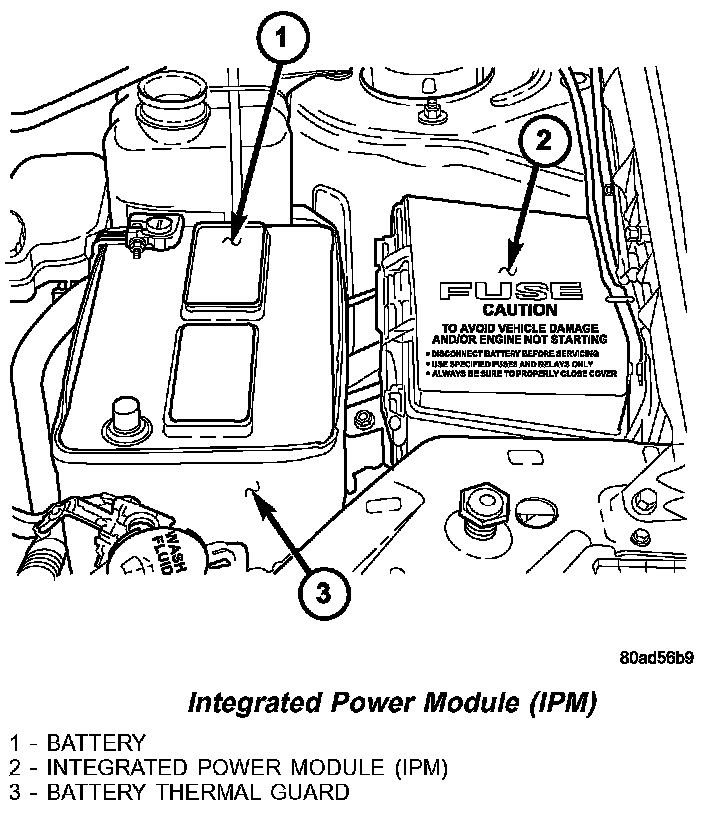

Integrated Power Module (IPM):

2. Remove the cover from the integrated power module (IPM) located in the engine compartment.
3. Remove the A/C compressor clutch relay from the IPM.

INSTALLATION
1. Position the A/C compressor clutch relay into the receptacle in the IPM.
2. Align the A/C compressor clutch relay terminals with the terminal cavities in the IPM receptacle and push down firmly on the relay until the terminals are fully seated.
3. Install the cover onto the IPM.
4. Reconnect the negative battery cable.
