Component Tests and General Diagnostics

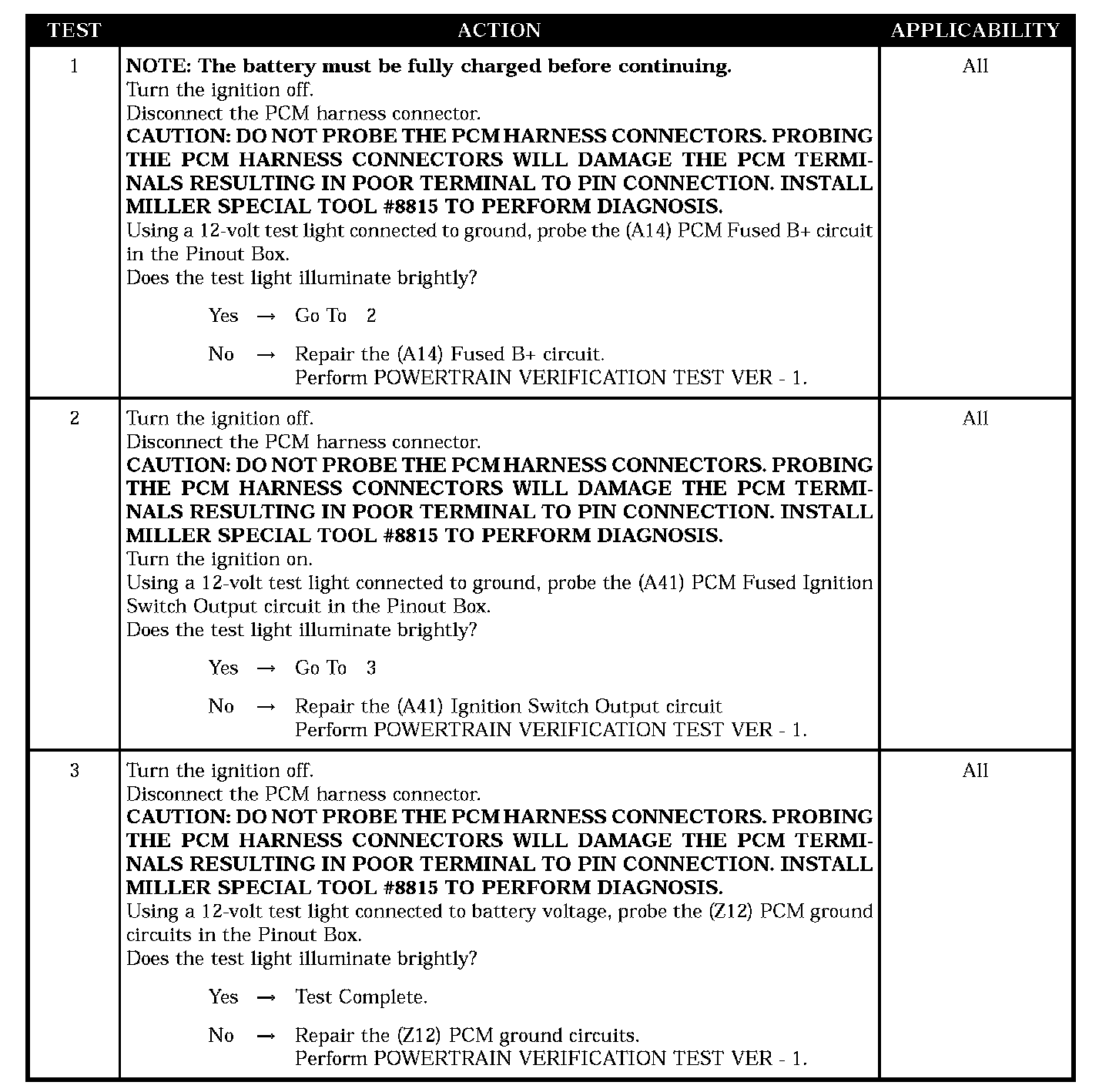

Test 1 - Test 3:

SYMPTOM
CHECKING PCM POWER AND GROUND CIRCUITS

POSSIBLE CAUSES
- (A14) PCM Fused B+ Circuit
- (A41) PCM Fused Ignition Switch Output Circuit
- (Z12) PCM Ground Circuits
