Checking the A/C Relay Output

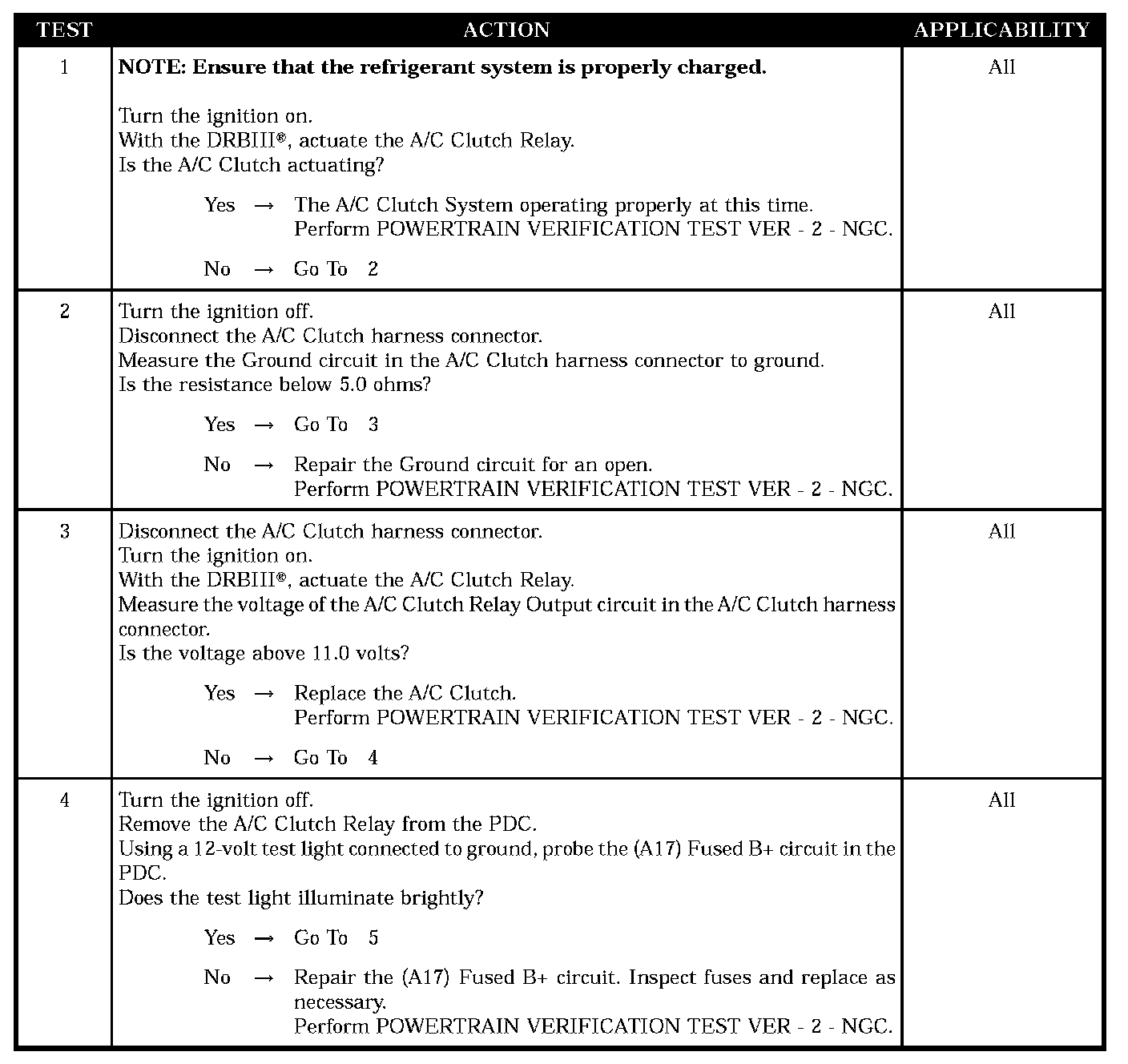

Test 1 - Test 4:

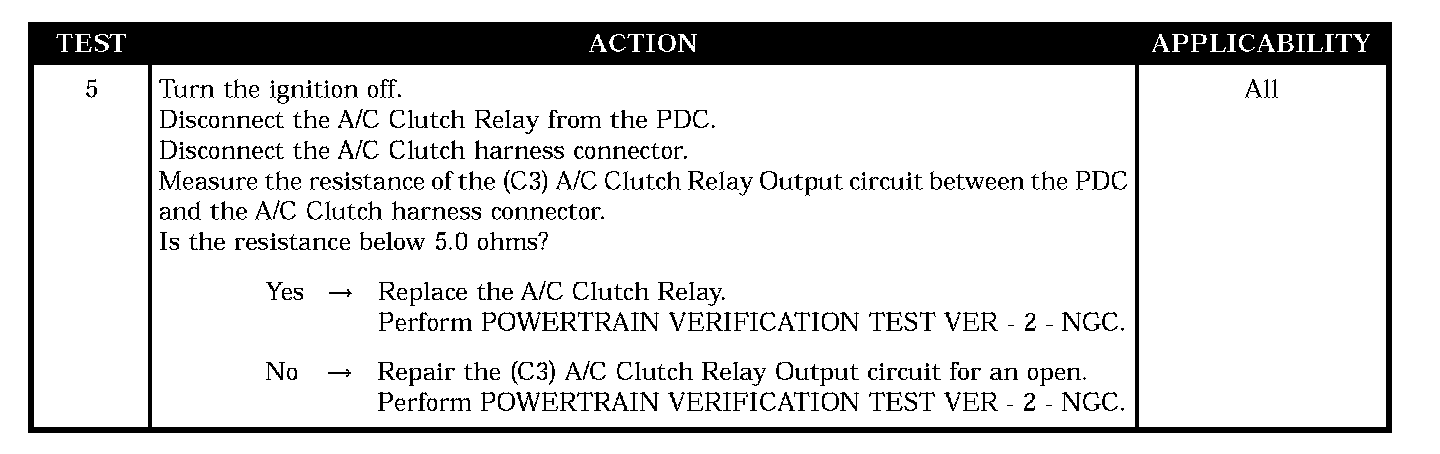

Test 5:

SYMPTOM
CHECKING THE A/C RELAY OUTPUT

POSSIBLE CAUSES
- A/C Clutch Relay Operation
- Ground Circuit Open
- A/C Clutch
- (A17) Fused B+ Circuit
- (C3) A/C Clutch Output Circuit
- A/C Clutch Relay
