Engine Cranks Does Not Start

Test 1:

Test 2 - Test 4:

Test 5 - Test 7:

Test 8 - Test 12:

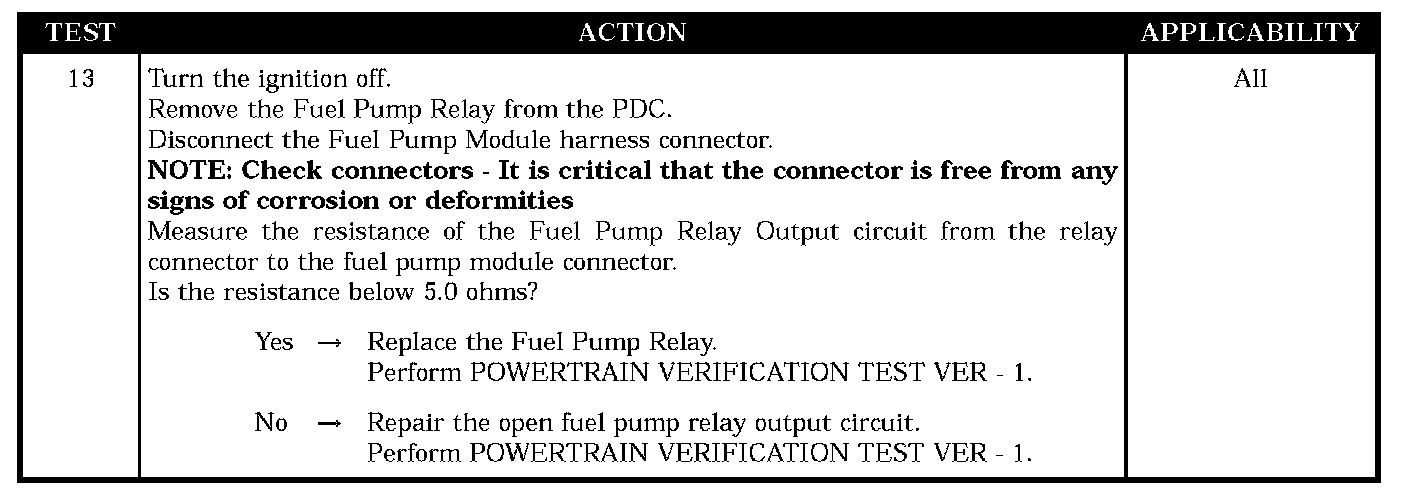

Test 13:

SYMPTOM
ENGINE CRANKS DOES NOT START

POSSIBLE CAUSES
- Fuel Pump Relay
- No Start Pre-test
- Other possible Causes For No Start
- Powertrain Fuses Open
- Fuel Pressure Out Of Specs
- Restricted Fuel Supply Line
- Visual/Physical Inspect Of The Fuel Line And Siphon Line
- Fuel Pump/Fuel Regulator
- Fuel Pump Relay Fused B+ Circuit
- Fuel Pump Relay Output Circuit Open
- Fuel Pump Ground Circuit Open/High Resistance
- Fuel Pump Module
