Power Distribution Module: Service and Repair

NOTE: When a replacement IPM is installed in the vehicle, the IOD fuse must be rotated to the "customer" position.

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the hood cable retaining clip near the Integrated Power Module (IPM).

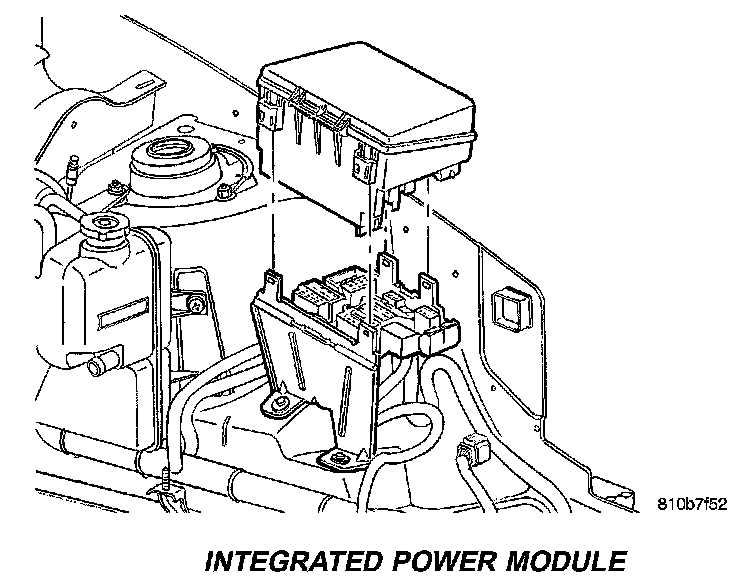

Integrated Power Module:

3. Using a flat bladed tool, depress the four locking tabs on the side of the IPM.
4. Lift the IPM from the bracket.
5. Disconnect the electrical harness connectors from the IPM.
6. Disconnect the battery connection to the IPM by removing the nut attaching the connection to the bolt.

INSTALLATION
1. Install battery connection and retaining nut. Tighten nut to 28 N.m (250 in. lbs.)
2. Connect the electrical harness connectors to the Integrated Power Module (IPM).
3. Position IPM into place, and lock into position.
4. Install the hood cable retaining clip.
5. Connect battery negative cable.
