Fluid Pressure Sensor/Switch: Service and Repair
SOLENOID / PRESSURE SWITCH ASSYREMOVAL
NOTE: If solenoid/pressure switch assembly is being replaced, the Quick-Learn procedure must be performed.
1. Disconnect battery negative cable.
2. Remove air cleaner assembly.

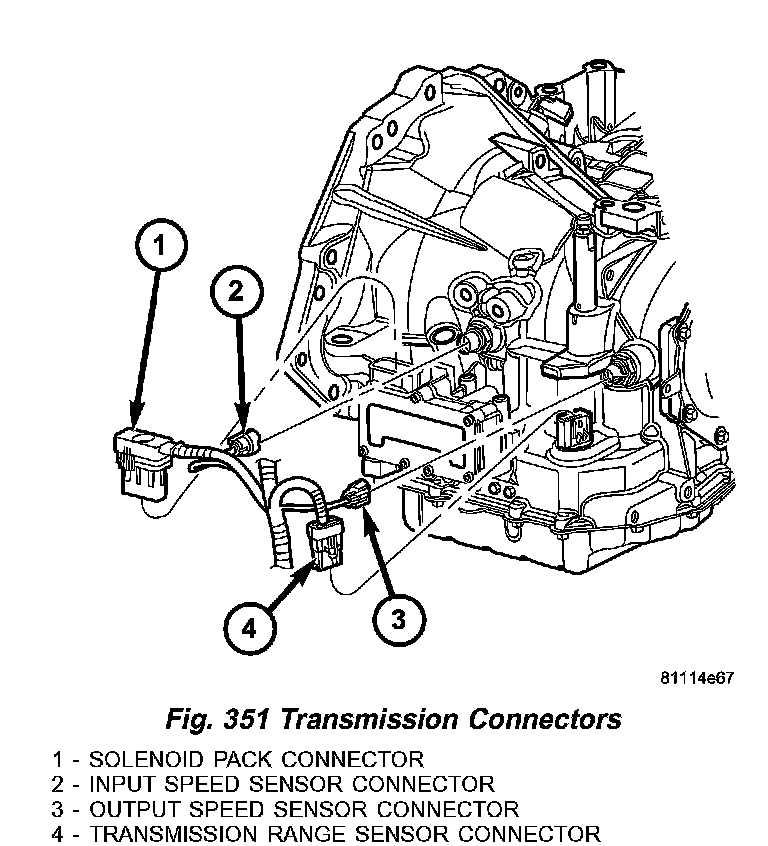

Fig. 351 Transmission Connectors:
3. Disconnect solenoid/pressure switch assembly connector (1) (Fig. 351).
4. Disconnect input speed sensor connector (2).

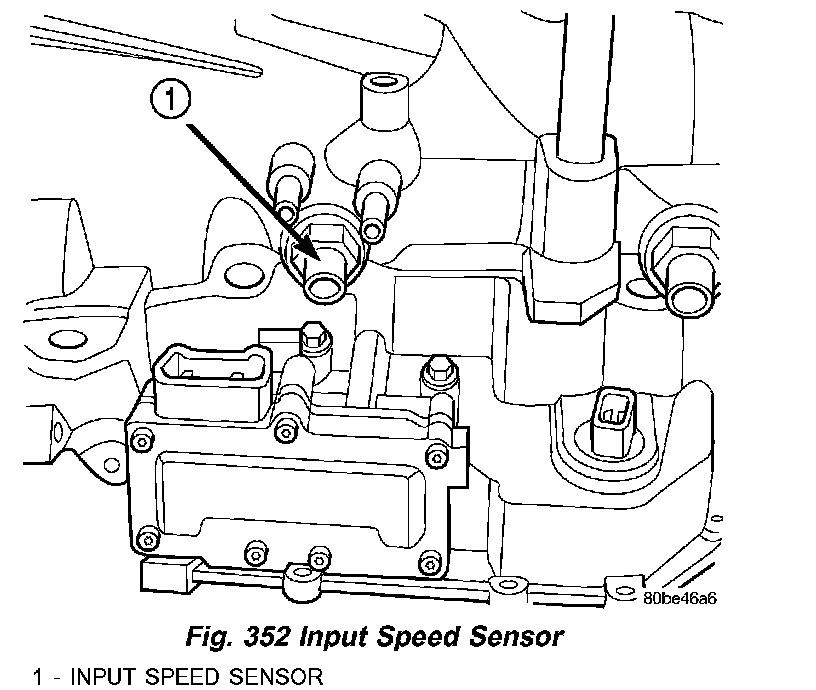

Fig. 352 Input Speed Sensor:
5. Remove input speed sensor (1) (Fig. 352).

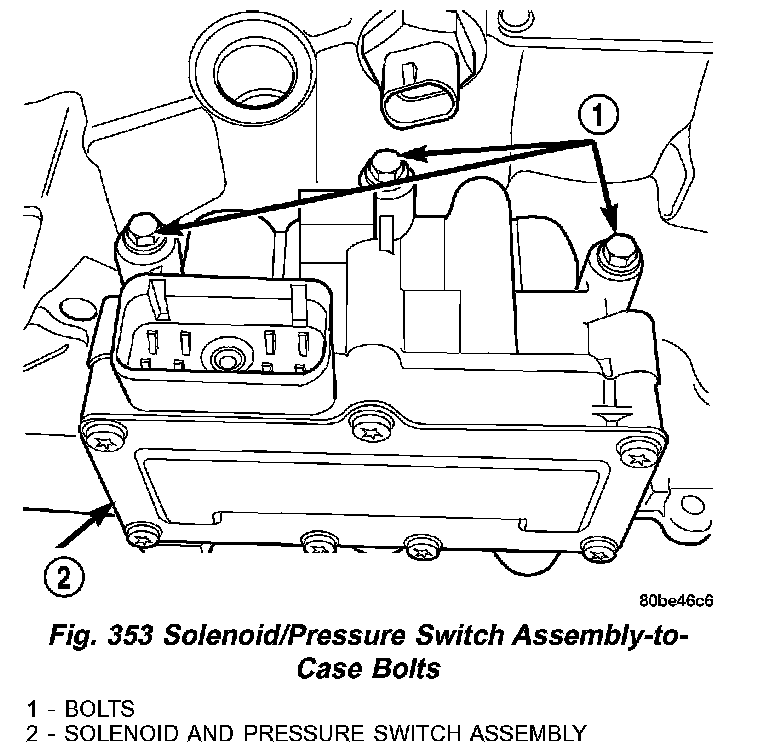

Fig. 353 Solenoid/Pressure Switch Assembly- to-Case Bolts:
6. Remove three solenoid/pressure switch assembly-to-transaxle case bolts (1) (Fig. 353).

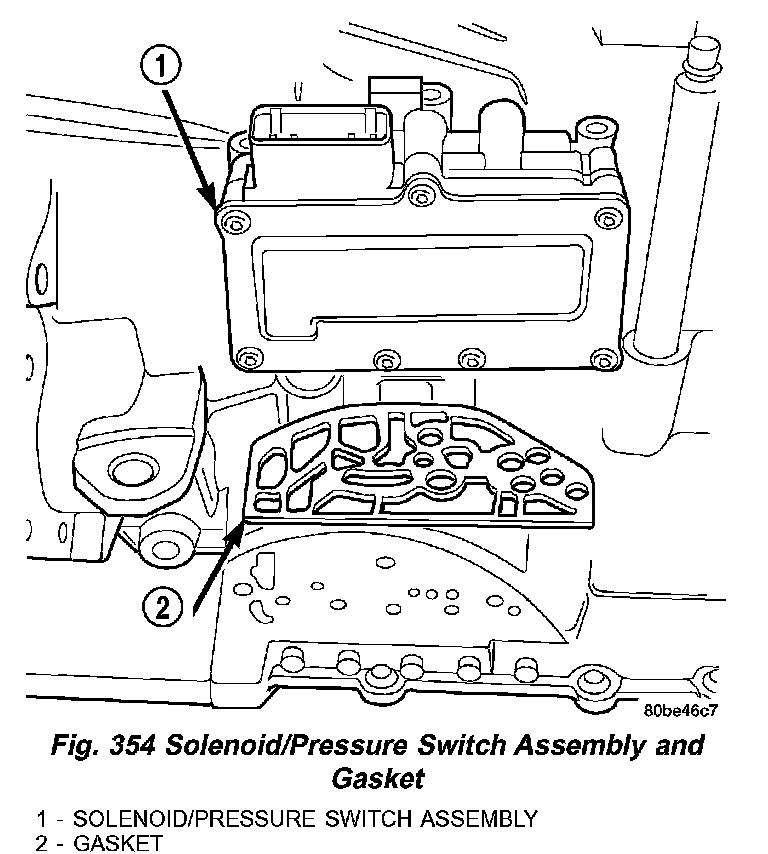

Fig. 354 Solenoid/Pressure Switch Assembly and Gasket:
7. Remove solenoid/pressure switch assembly (1) (Fig. 354) and gasket (2). Use care to prevent gasket material and foreign objects from become lodged in the transaxle case ports.
INSTALLATION
NOTE: If solenoid/pressure switch assembly is being replaced, it is necessary to perform the Quick-Learn procedure.

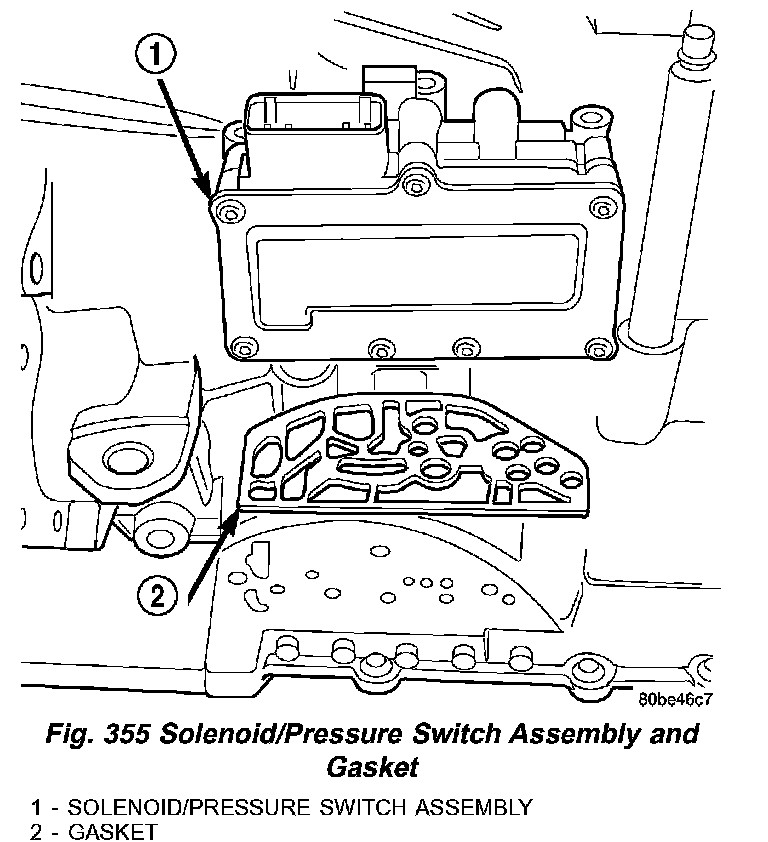

Fig. 355 Solenoid/Pressure Switch Assembly and Gasket:
1. Install solenoid/pressure switch assembly and new gasket to transaxle (Fig. 355).

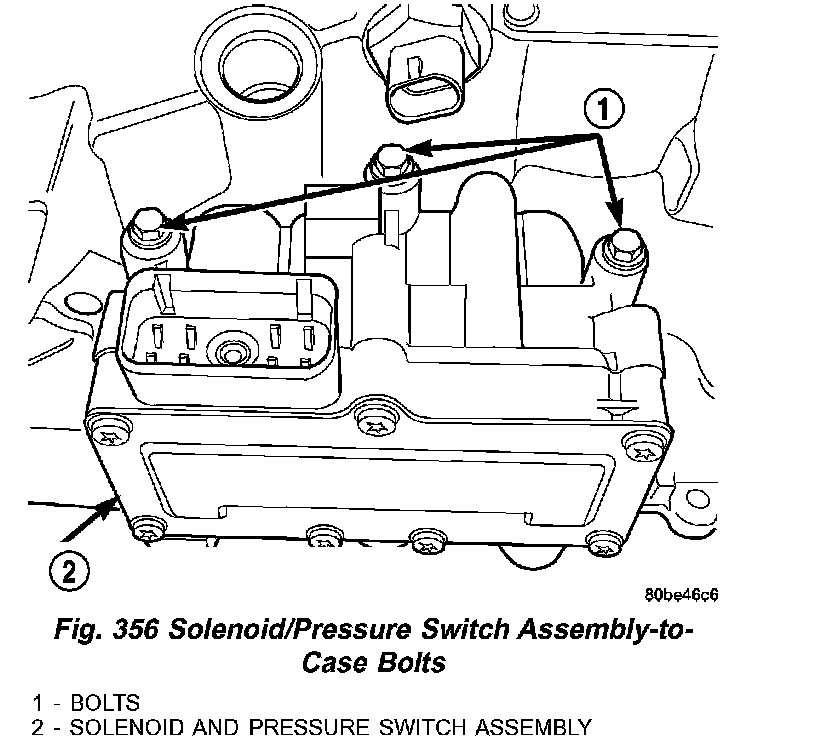

Fig. 356 Solenoid/Pressure Switch Assembly - to - Case Bolts:
2. Install and torque three bolts (1) (Fig. 356) to 12 Nm (105 inch lbs.).

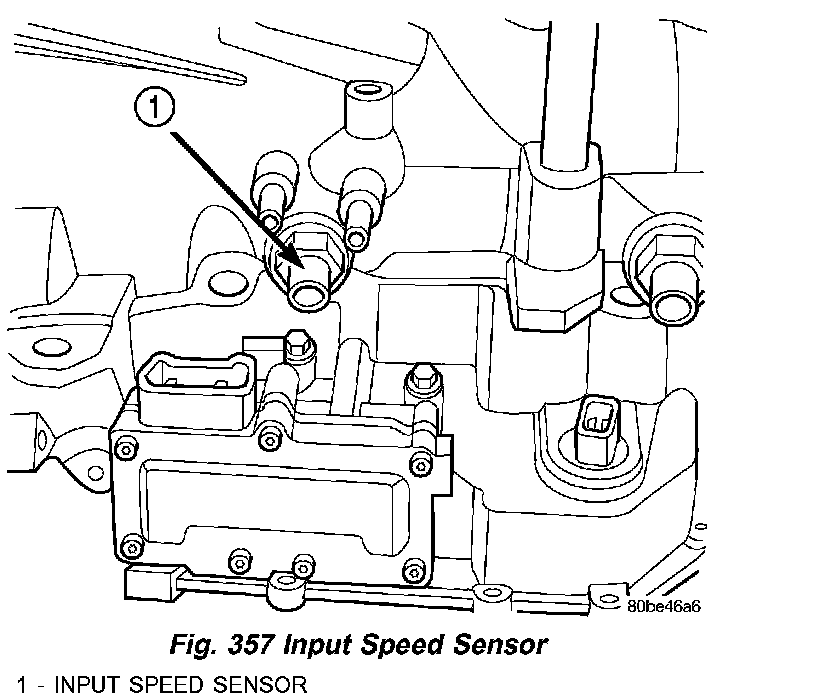

Fig. 357 Input Speed Sensor:
3. Install input speed sensor (1) (Fig. 357) and torque to 27 Nm (20 ft. lbs.).

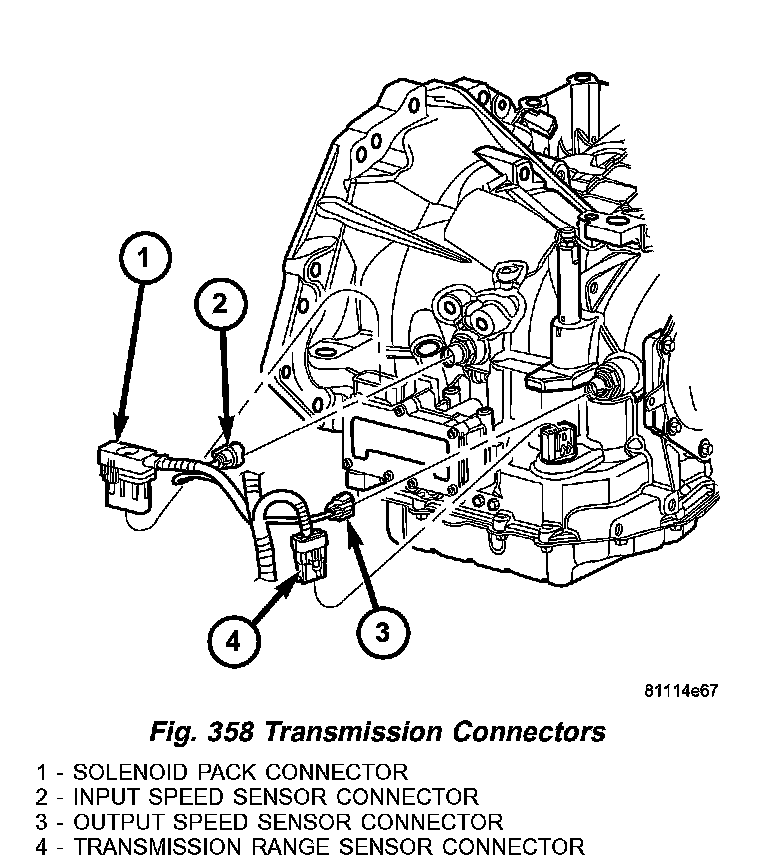

Fig. 358 Transmission Connectors:
4. Connect input speed sensor connector (2) (Fig.358).
5. Install solenoid/pressure switch 8-way connector and torque to 4 Nm (35 inch lbs.).
6. Install air cleaner assembly.
7. Connect battery negative cable.
8. If solenoid/pressure switch assembly was replaced, perform the Quick-Learn procedure.
