Service Specifications

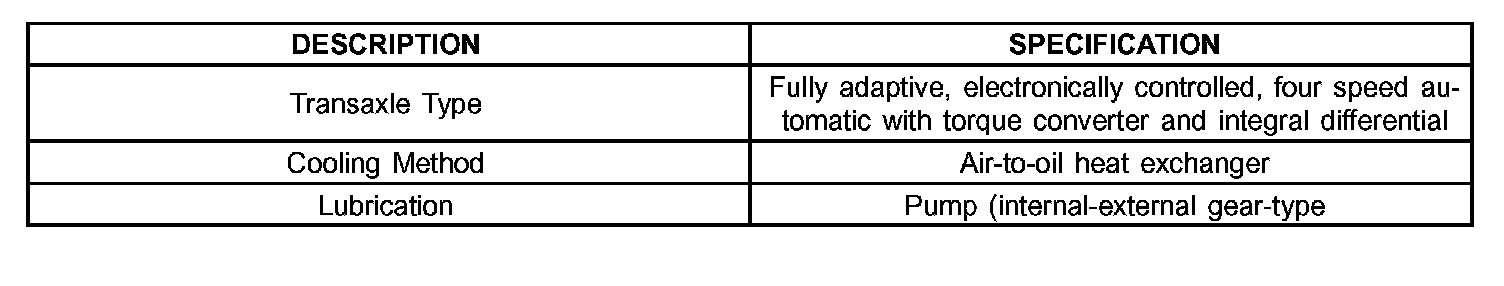

GENERAL SPECIFICATIONS:

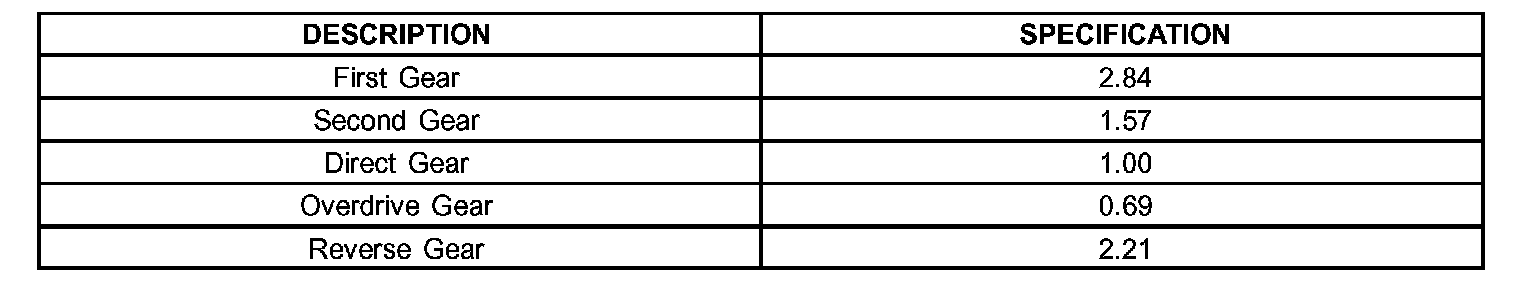

GEAR RATIOS:

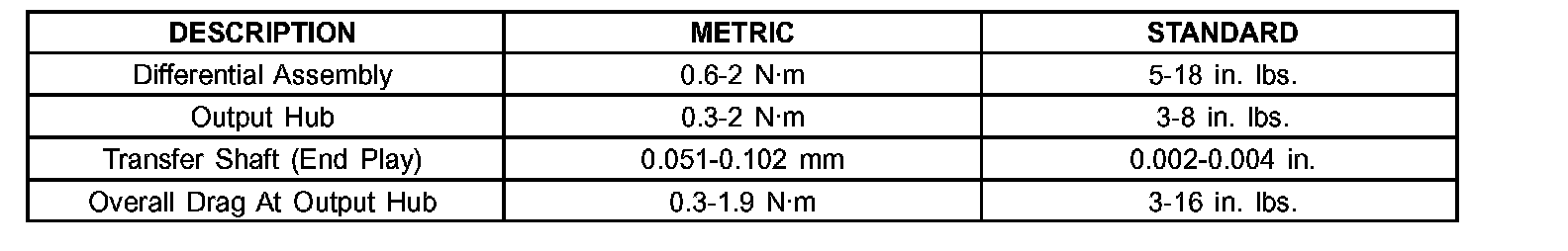

BEARING SETTINGS (END PLAY & TURNING TORQUE):

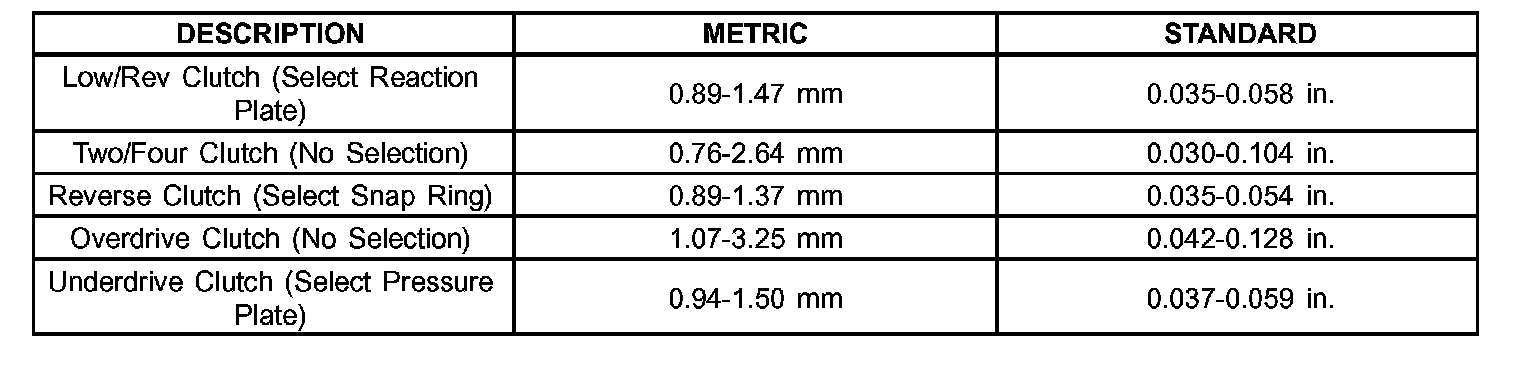

CLUTCH CLEARANCES:



OIL PUMP CLEARANCES:



INPUT SHAFT:
