Speed Sensor - Input

SPEED SENSOR - INPUT

REMOVAL
1. Disconnect battery negative cable.

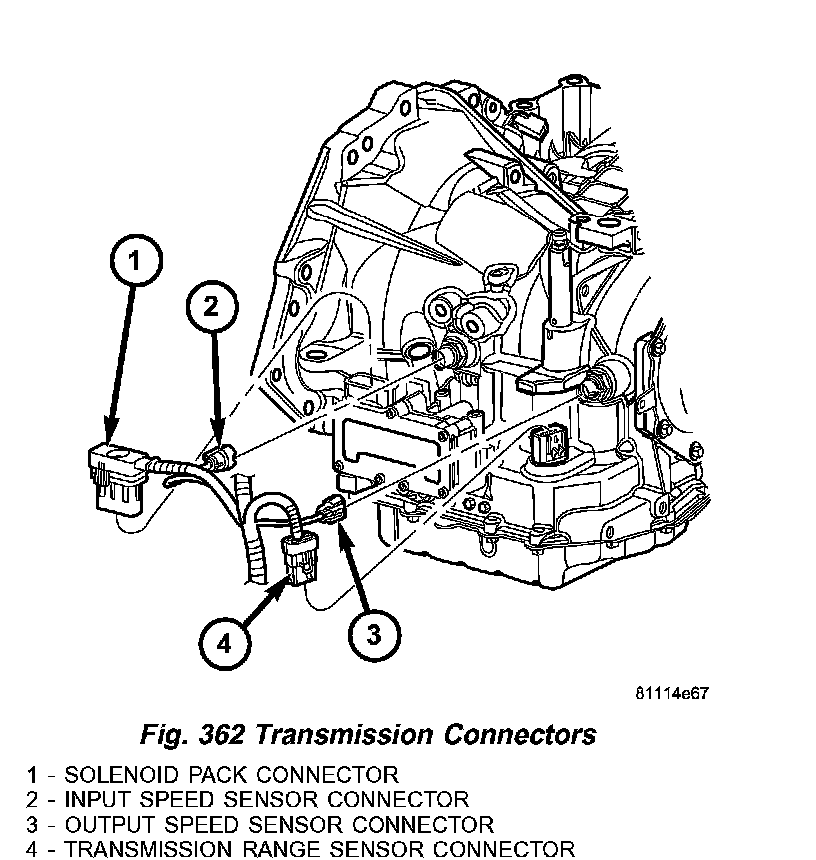

Fig. 362 Transmission Connectors:

2. Disconnect input speed sensor connector (2) (Fig. 362).

Fig. 363 Input (Turbine) Speed Sensor:

3. Unscrew and remove input speed sensor (1) (Fig. 363).

Fig. 364 O-ring Location:

4. Inspect speed sensor O-ring (2) (Fig. 364) and replace if necessary.

INSTALLATION

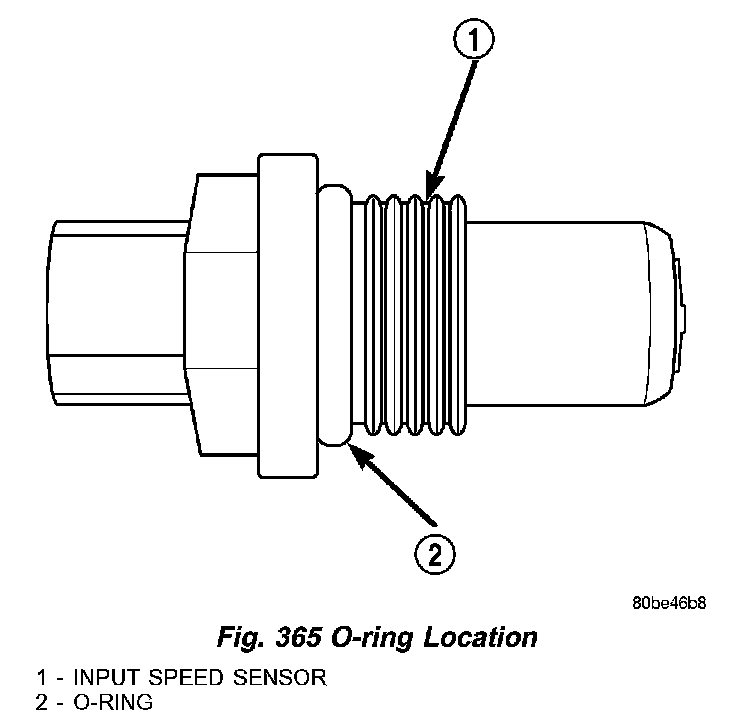

Fig. 365 O-ring Location:

1. Verify O-ring (2) (Fig. 365) is installed into position.

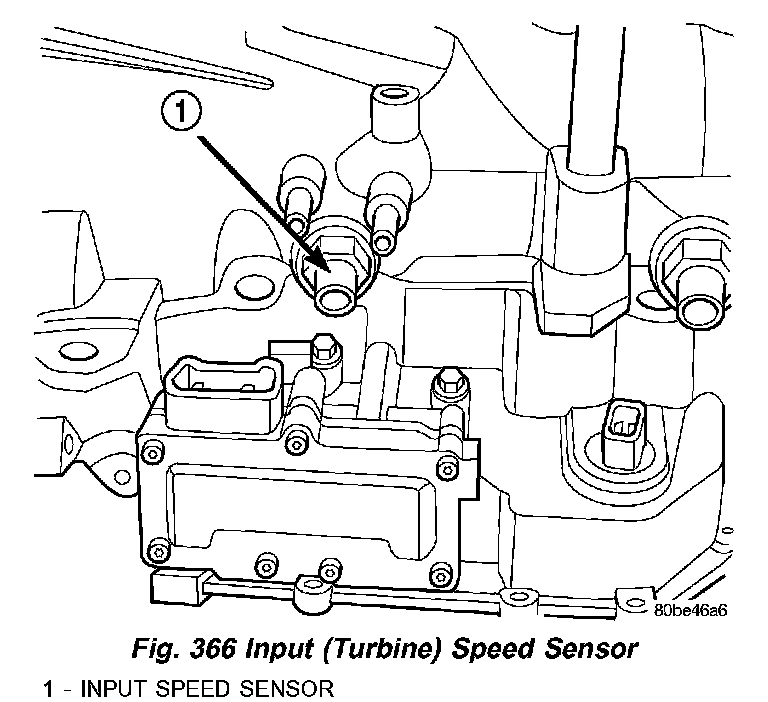

Fig. 366 Input (Turbine) Speed Sensor:

2. Install and tighten input speed sensor (1) (Fig. 366) to 27 Nm (20 ft. lbs.).

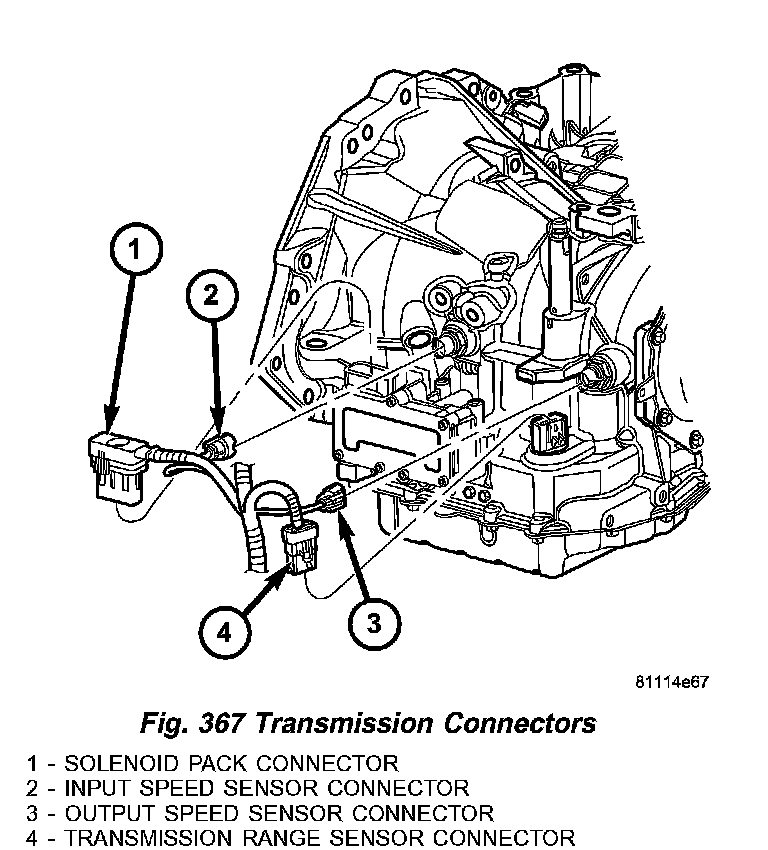

Fig. 367 Transmission Connectors:

3. Connect speed sensor connector (2) (Fig. 367).
4. Connect battery negative cable.
