Speed Sensor - Output

SPEED SENSOR - OUTPUT

REMOVAL
1. Disconnect battery negative cable.
2. Raise vehicle on hoist.

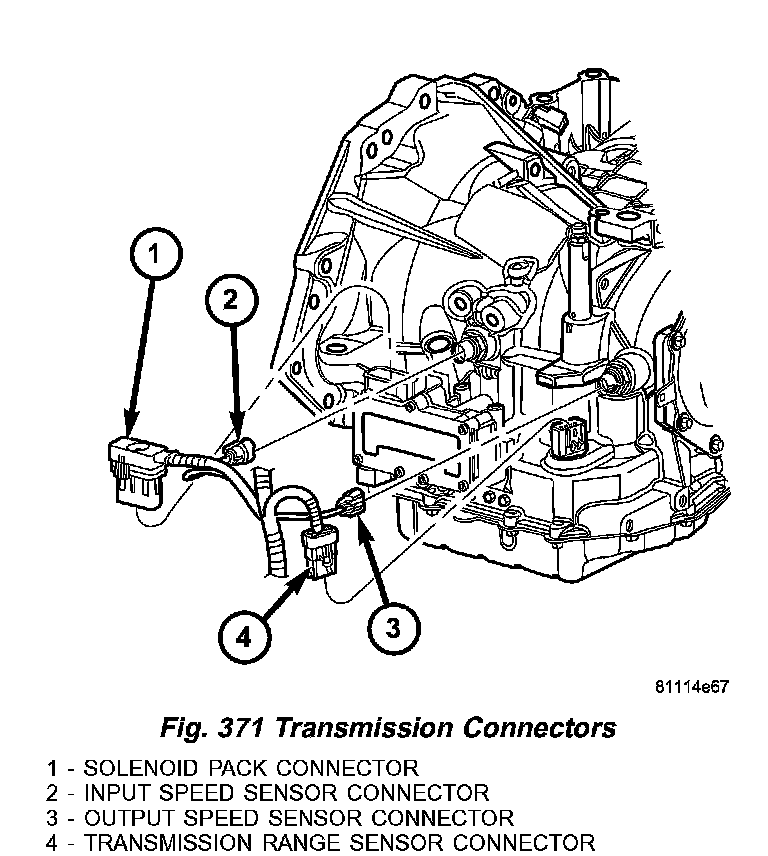

Fig. 371 Transmission Connectors:

3. Disconnect output speed sensor connector (3) (Fig. 371).

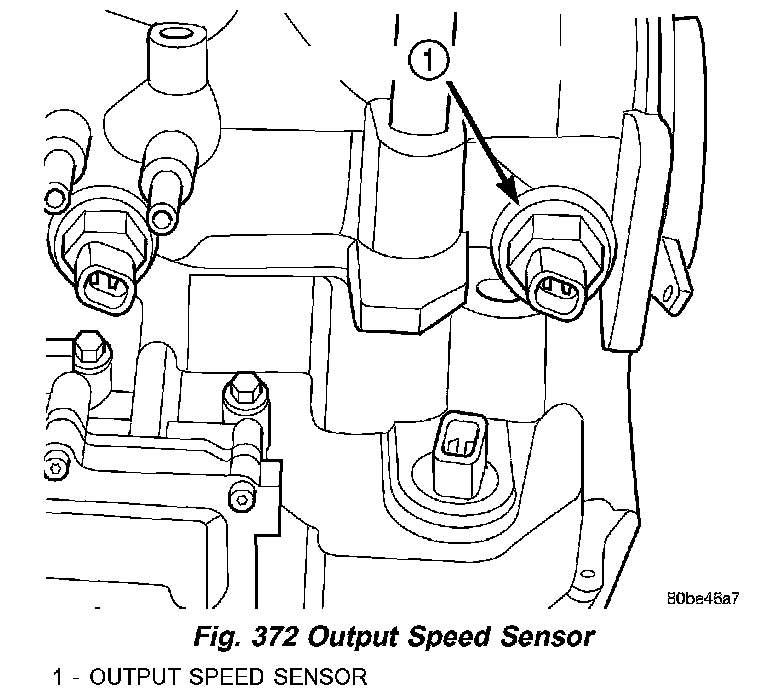

Fig. 372 Output Speed Sensor:

4. Unscrew and remove output speed sensor (1) (Fig. 372).

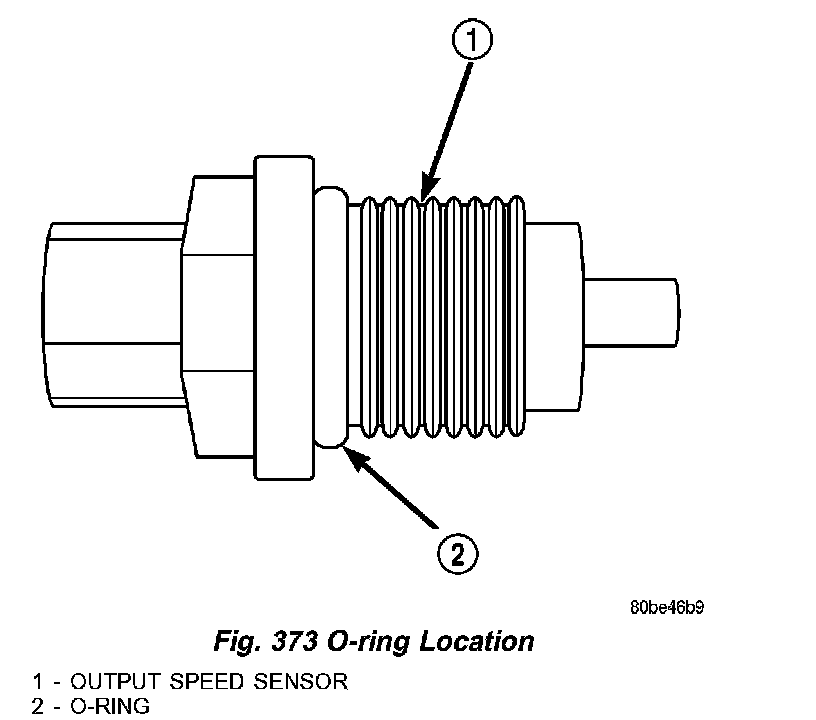

Fig. 373 O-ring Location:

5. Inspect speed sensor O-ring (2) (Fig. 373) and replace if necessary.

INSTALLATION

Fig. 374 O-ring Location:

1. Verify O-ring (2) (Fig. 374) is installed into position.

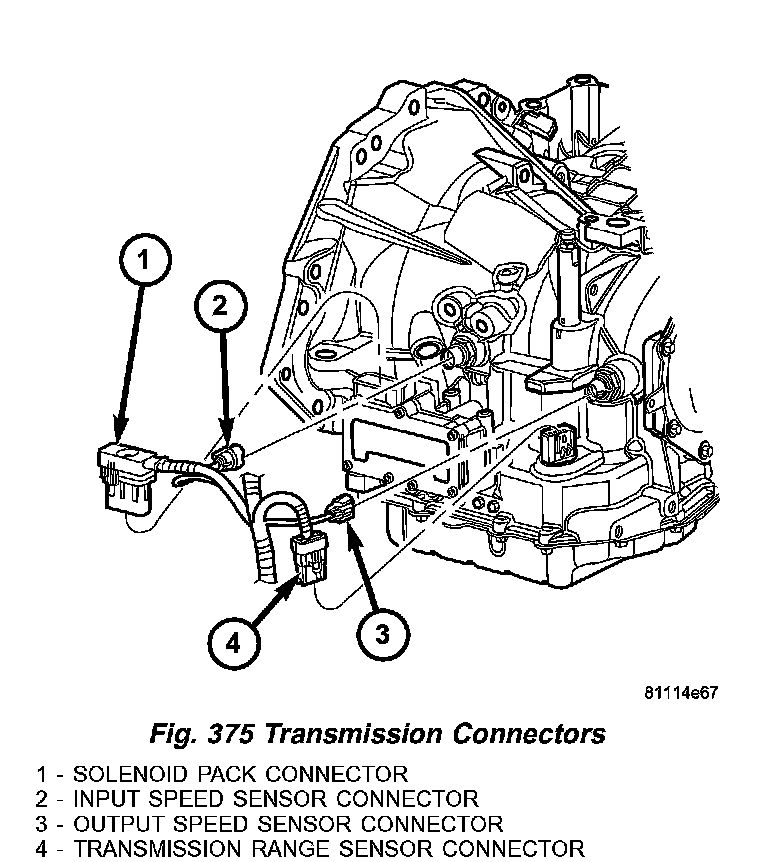

Fig. 375 Transmission Connectors:

2. Install and tighten output speed sensor (1) to 27 Nm (20 ft. lbs.).
3. Connect speed sensor connector.
4. Connect battery negative cable.
