Installation

INSTALLATION

1. Install PTU lower bracket.

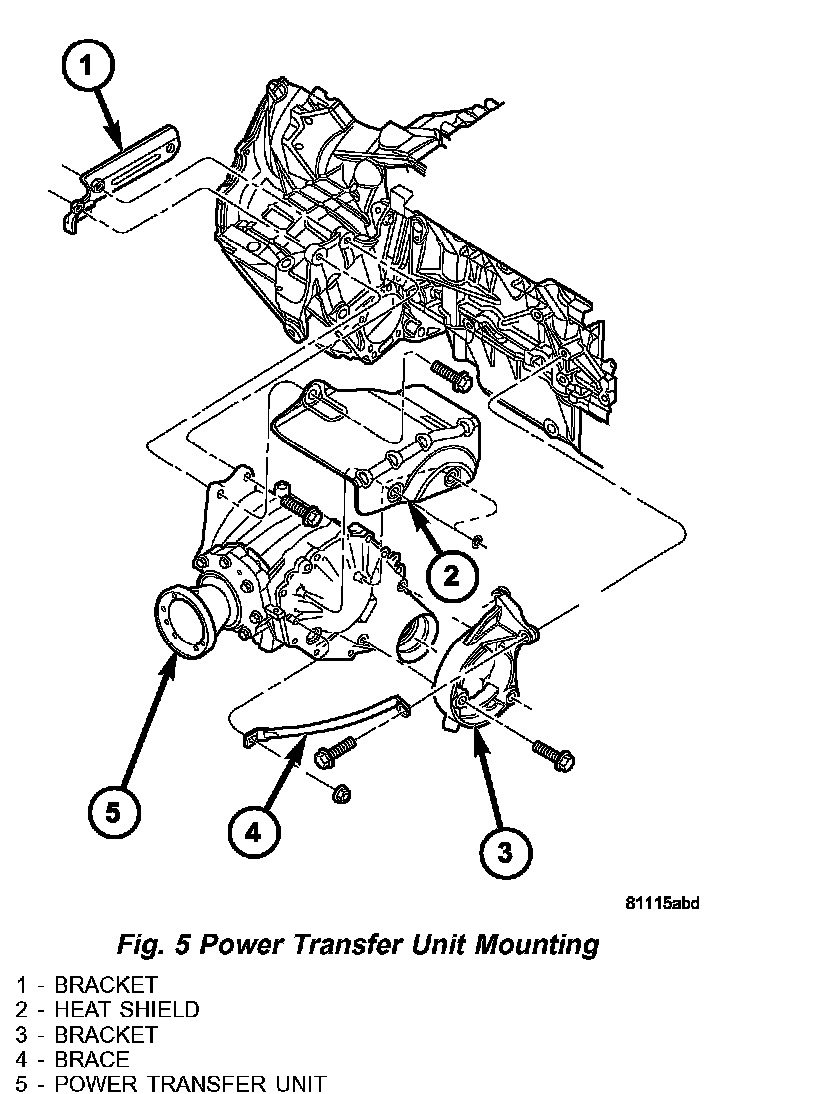

Fig. 5 Power Transfer Unit Mounting:

2. Install PTU-to-transaxle upper bolts and torque to 54 Nm (40 ft. lbs.) (Fig. 5).

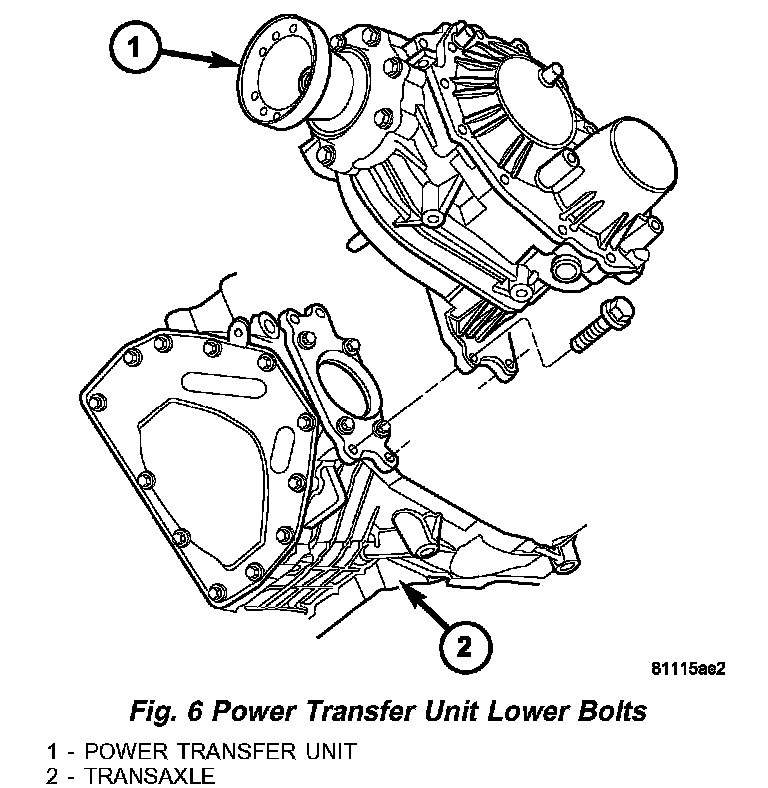

Fig. 6 Power Transfer Unit Lower Bolts:

3. Install PTU into position. Install two (2) lower PTU-to-bracket bolts and torque to 28 Nm (21 ft. lbs.) (Fig. 6).
4. Install brace and bracket.

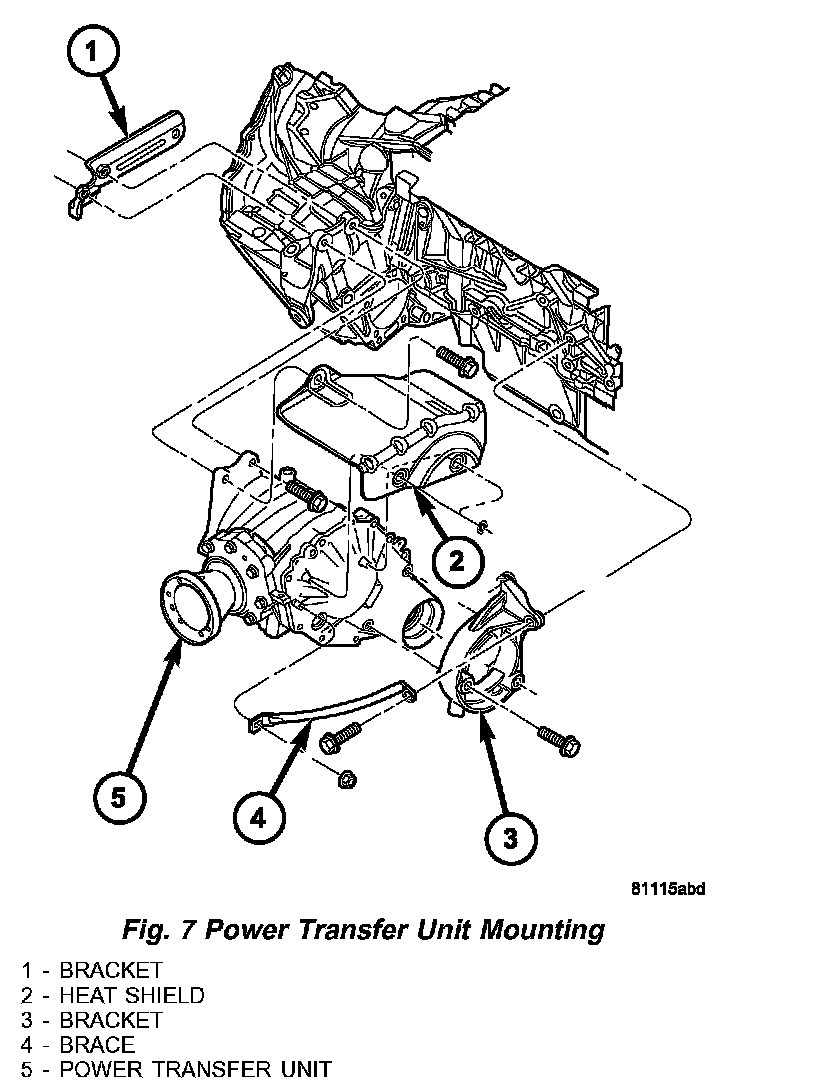

Fig. 7 Power Transfer Unit Mounting:

5. Install PTU heat shield (2) (Fig. 7).
6. Install PTU/rear mount bracket. Install and torque six bolts to 54 Nm (40 ft. lbs.).
7. Torque oil pan-to-transaxle collar bolts to 54 Nm (40 ft. lbs.).
8. Install propeller shaft assembly.
9. Install right halfshaft assembly.
10. Install engine cradle crossmember.
11. Check and adjust PTU Fluid level. The PTU holds 1.0L (2.1 pts.) of Mopar 75W-90 Gear and Axle Lubricant.
