Lamp-Side Repeater - Export
>>
Removal
Removal
REMOVAL

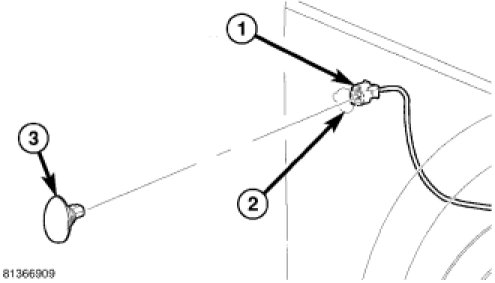

1.
Push lamp (3) to the left and disengage lamp by rotating it out of the metal around its left edge.
2.
Remove lamp.
3.
Rotate Socket out.
4.
Remove Bulb.
