Component ID:
333
Component :

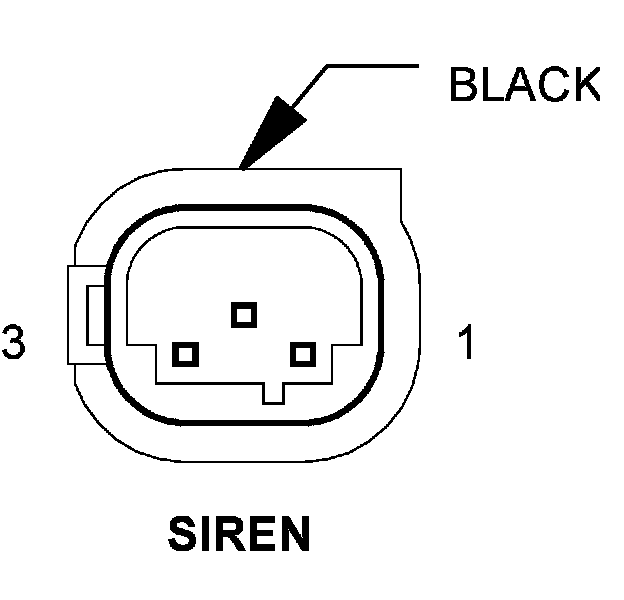

SIREN
Connector:
Name :
SIREN
Color :
BLACK
# of pins :
3
Pin
Description
Circuit
1
FUSED B(+)
20RD/GY
2
GROUND
20BR
3
SIREN SIGNAL OUTPUT
20YL/RD
