Installation

PITMAN ARM - LHD




1. Remove any oil and grease from the splined section of the pitman arm shaft and the pitman arm.

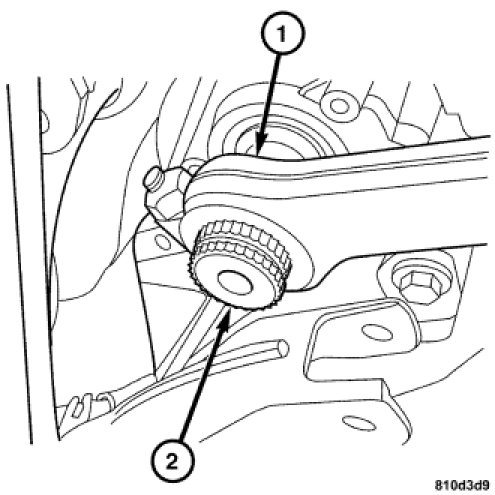

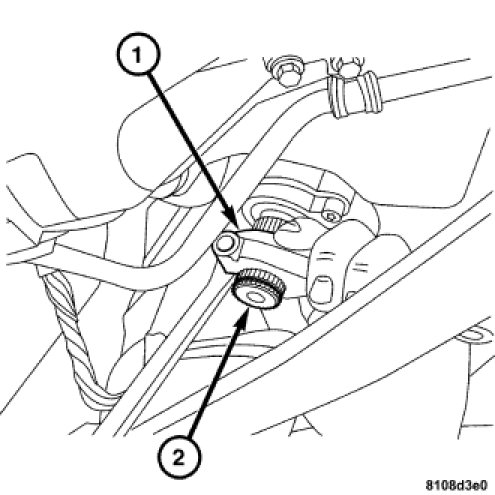

2. Install the pitman arm (1) to the pitman arm shaft (2).




3. Install the snap ring (2).

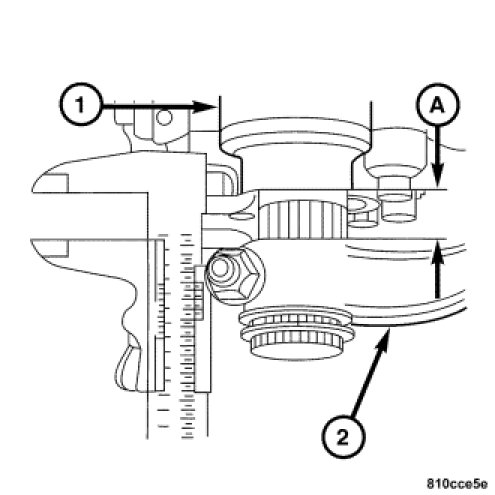

4. Install the pitman arm to the previously measured depth of measurement "A". Tighten the pinch bolt to 55 Nm (41 ft. lbs.).
