Automatic Transmission

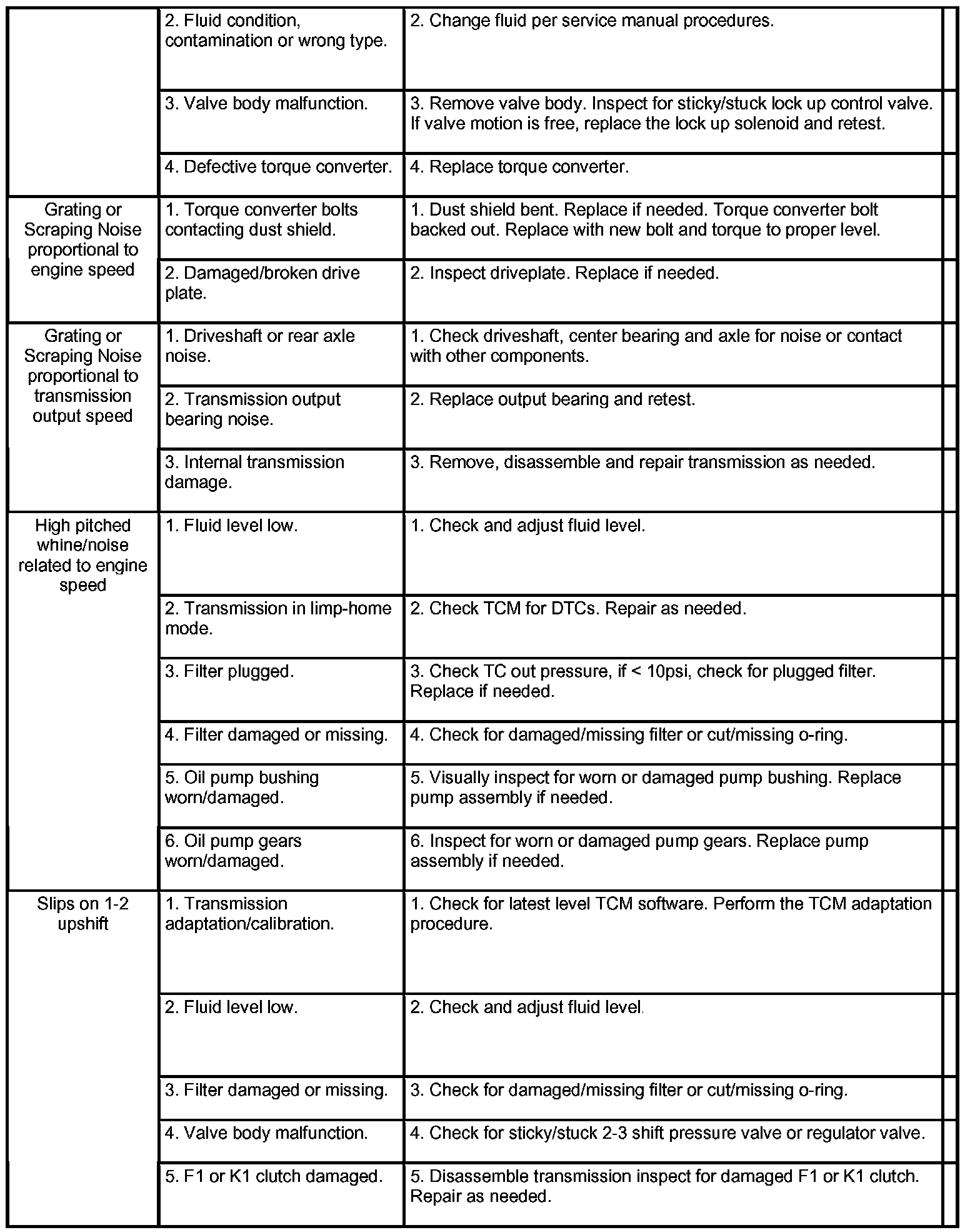

AUTOMATIC TRANSMISSION

AUTOMATIC TRANSMISSION (Part 1):




AUTOMATIC TRANSMISSION (Part 2):




AUTOMATIC TRANSMISSION (Part 3):




AUTOMATIC TRANSMISSION (Part 4):




AUTOMATIC TRANSMISSION (Part 5):
