Removal

3.8L




1. Remove the 2 flange bolts at EGR valve.

2. Remove the tube bracket bolt.

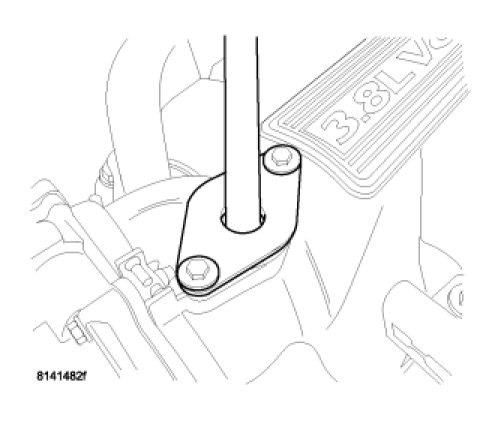

3. Remove the 2 bolts from tube flange at intake manifold.




4. Remove EGR tube from seal.

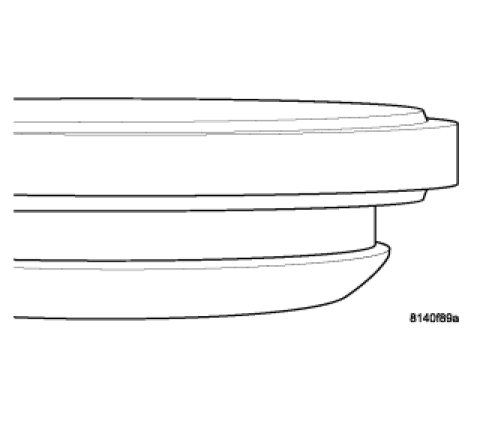

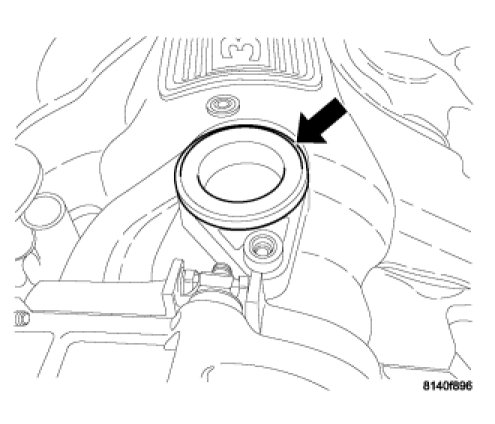

5. Remove seal.
