Cruise Control Vacuum Reservoir: Service and Repair

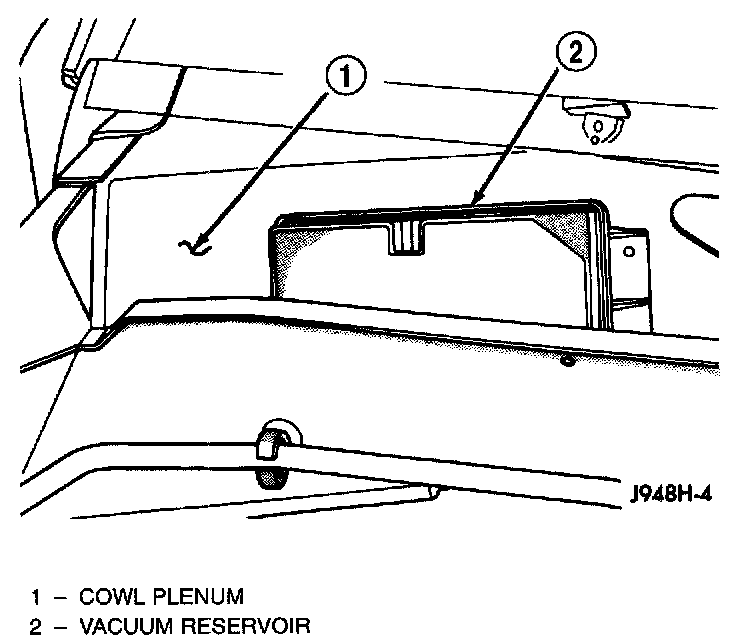

The vacuum reservoir is located under the plastic cowel plenum cover at lower base of windshield.

REMOVAL
1. Disconnect and isolate battery negative cable.
2. Remove both windshield wiper arm/blade assemblies. Refer to Wiper and Washer Systems.

Cowl Grille Panel Weather-strip:

3. Remove rubber weather-strip at front edge of cowel grill.

Plastic Anchor Screws Remove/Install:

4. Release cowel grill plastic anchor screws.
5. Lift cowel plenum cover/grille panel from vehicle far enough to access vacuum reservoir.

Vacuum Reservoir Remove/Install:

6. Disconnect vacuum supply line from vacuum reservoir.
7. Remove 2 vacuum reservoir mounting screws.
8. Remove vacuum reservoir from vehicle.

INSTALLATION
1. Install vacuum reservoir and two mounting screws. Tighten screws to 2.2 N.m (20 in lbs) torque.
2. Connect vacuum supply hose to vacuum reservoir.
3. Position cowel plenum cover/grille panel to vehicle.
4. Install and tighten cowel cover fasteners to vehicle body.
5. Install rubber weather-strip at front edge of cowel grill.
6. Install windshield wiper arms. Refer to Wiper and Washer Systems.
7. Connect negative battery to cable.
