Chime Remains On With Ignition On

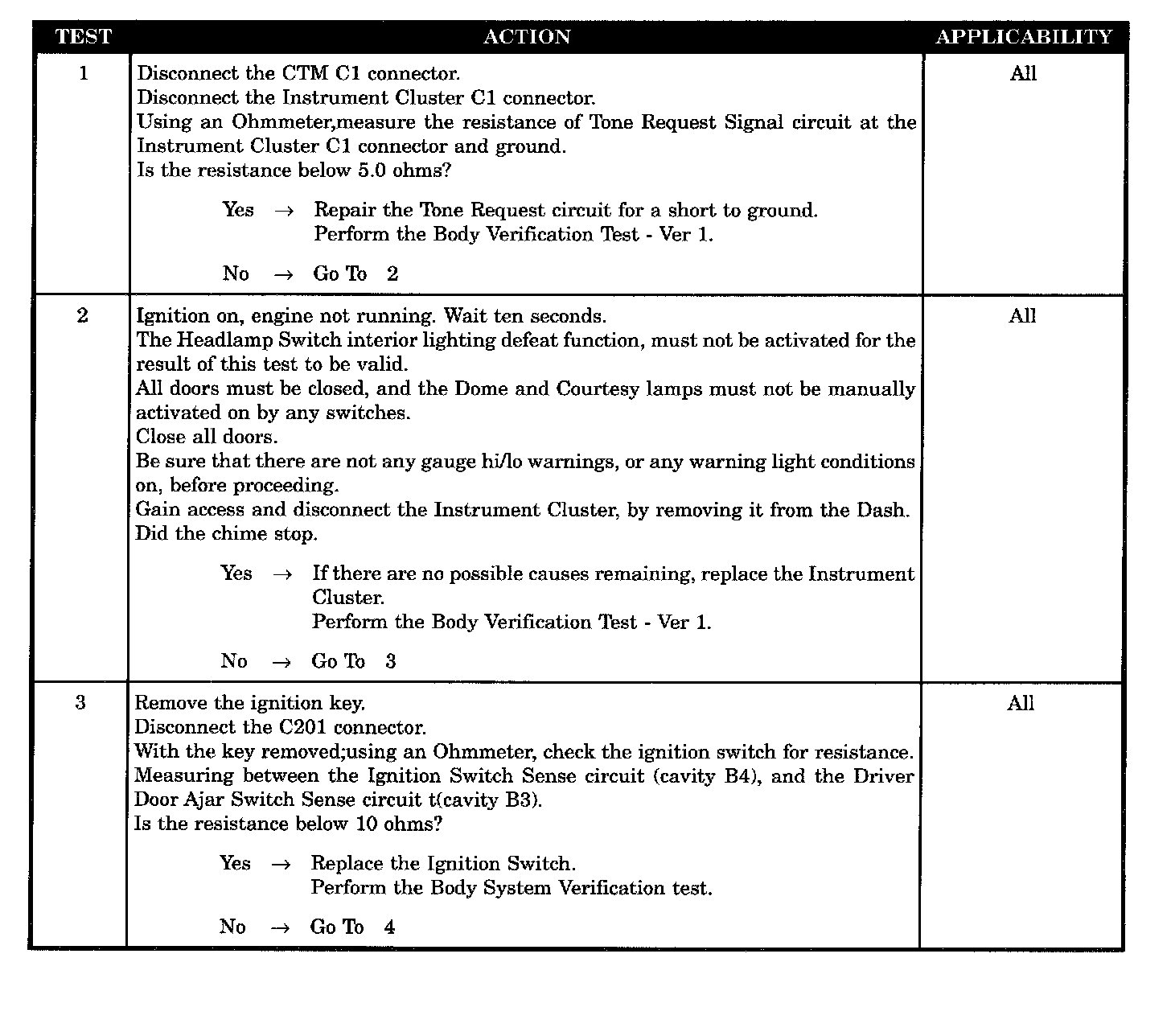

Test 1 - 3:

Test 4 - 6:

SYMPTOM
CHIME REMAINS ON WITH IGNITION ON

POSSIBLE CAUSES
- Shorted key-in switch
- Tone request circuit shorted ground
- Headlamp switch open-chime/INT lighting
- Instrument cluster-chime stays ON
- [1][2]CTM-chime stays ON
