Checking Intake Air Heater #2

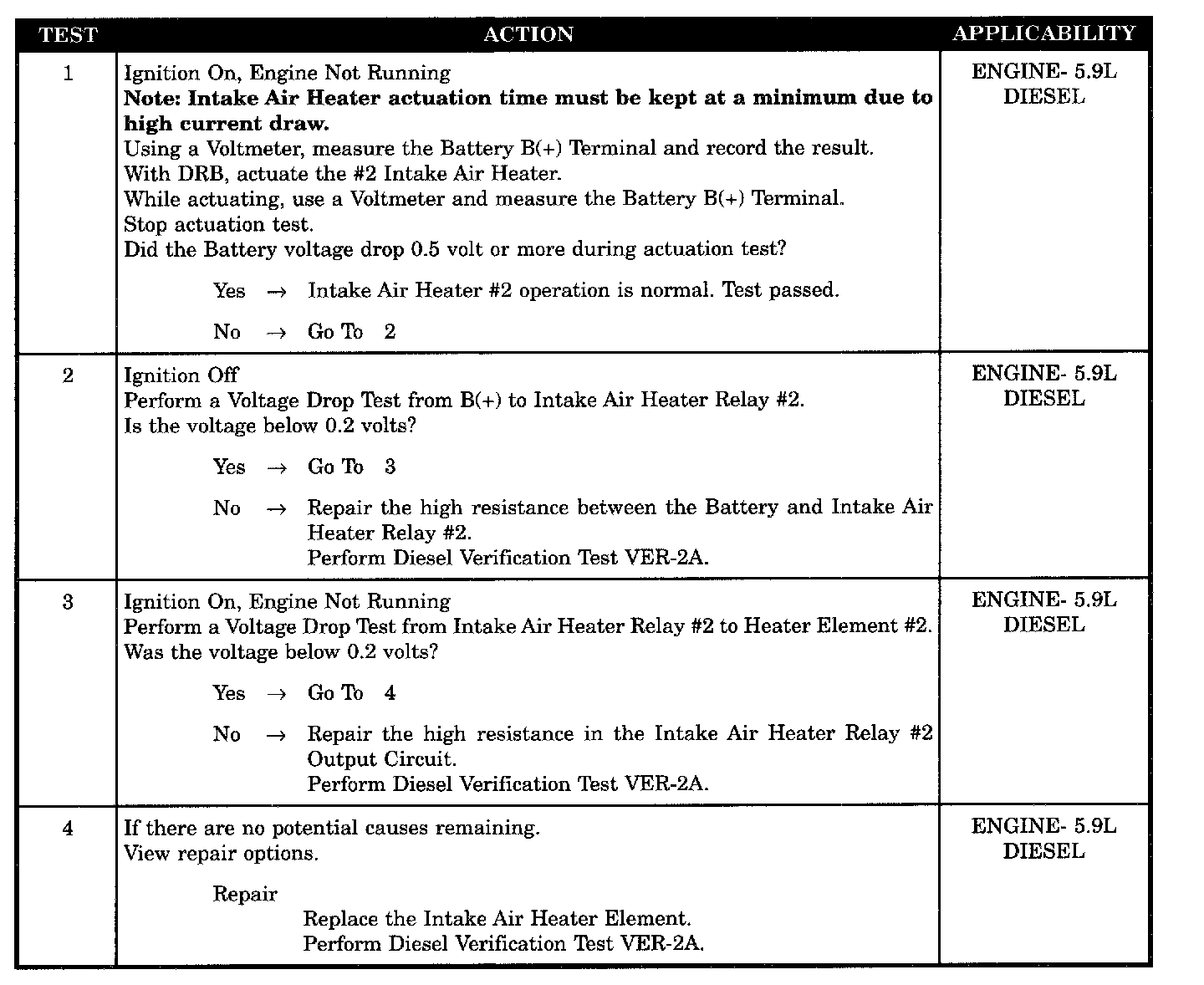

Tests 1 - 4:





SYMPTOM
* CHECKING THE INTAKE AIR HEATER # 2

POSSIBLE CAUSES
- High resistance between battery & intake relay
- High resistance intake air heater relay output circuit
- Intake air heater element
