CMP/CKP Position Sensor Circuit - Dynamic Plausibility

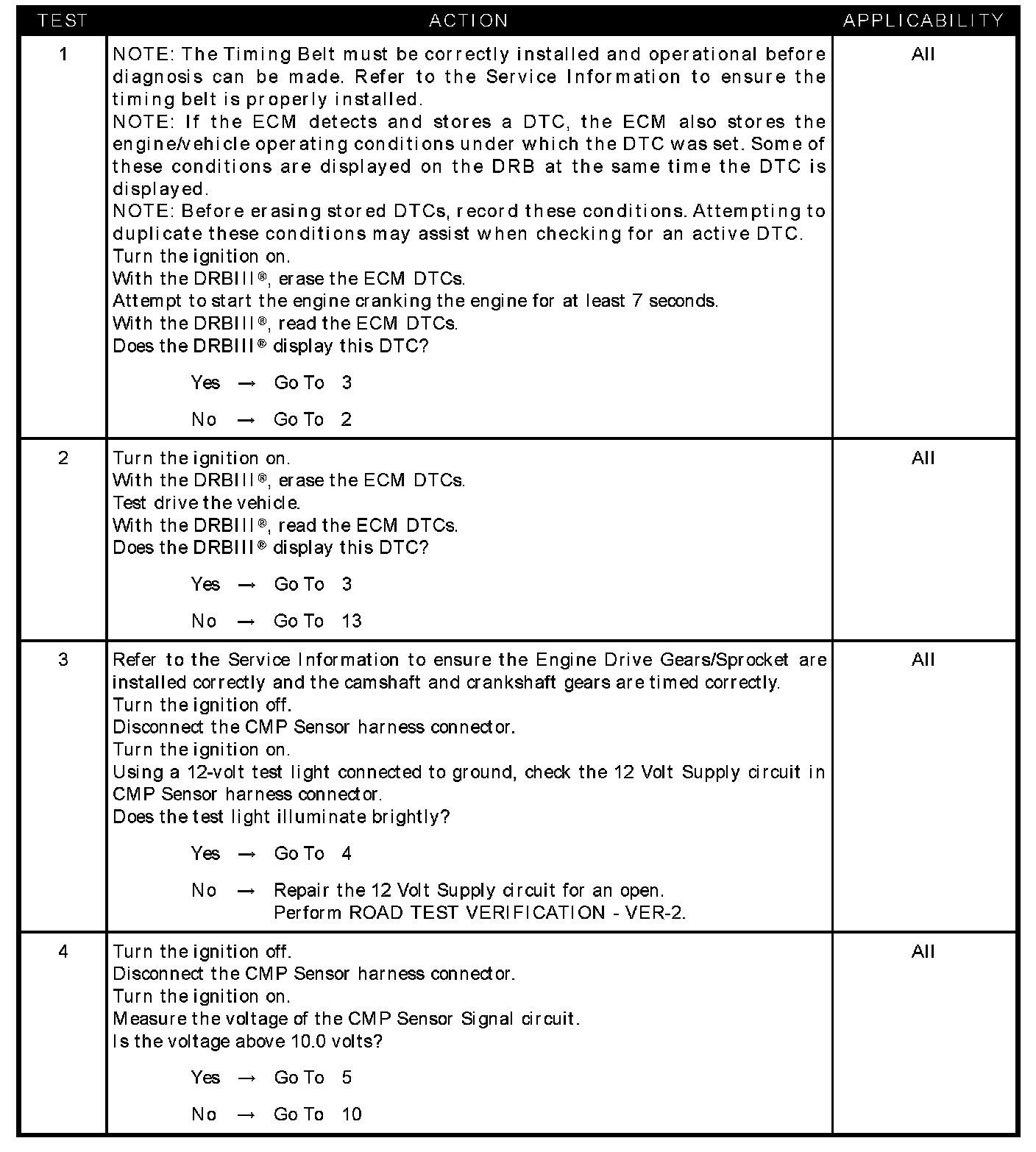

Test 1 - 4:

Test 5 - 8:

Test 9 - 12:

Test 13:

SYMPTOM
P1354-CMP/CKP POSITION SENSOR CIRCUIT - DYNAMIC PLAUSIBILITY

WHEN MONITORED
With the engine cranking or running.

SET CONDITION
The ECM detects the Camshaft Sensor Signal is missing.

POSSIBLE CAUSES
- Damaged CMP sensor or Camshaft ECM
- Sensor ground circuit open
- Intermittent condition
- 12 volt supply circuit open
- CMP sensor signal circuit open
- CMP sensor signal circuit shorted to ground
- Camshaft position sensor
- ECM sensor ground circuit open
- CMP sensor signal circuit shorted to the sensor ground circuit
- CMP sensor circuit shorted to voltage
