Canada - Recall - F05 Antilock Brake System Control Module
BulletinF05
Issue Date
2006-07-12
IMPORTANT
DEALER SERVICE INSTRUCTIONS
SAFETY RECALL F05-ANTILOCK BRAKE SYSTEM CONTROL MODULE
Please remove and discard from your files all previous copies of Safety Recall F05 (dated 2006-07-04). This revision has additional parts information to clarify the ABS Control Module application for Dodge Ram Mega Cab models.
MODELS:
2006 (DR) DODGE RAM PICKUP TRUCK (1500 SERIES)
2006 (DH) DODGE RAM PICKUP TRUCK (1500 Mega Cab & 2500 SERIES)
2006 (D1) DODGE RAM PICKUP TRUCK (3500 SERIES)
2006 (ND) DODGE DAKOTA PICKUP TRUCK
NOTE:
This recall applies only to the above vehicles equipped with a Four-Wheel Antilock Brake System (sales code BGK or BRT) built from September 12, 2005 through December 11, 2005 (MDH 09-12-21 through 12-11-14).
IMPORTANT:
Many of the vehicles within the above build period have already been inspected or repaired and, therefore, have been excluded from this recall.
Recall information for Canadian Dealers is now available on DealerCONNECT
See Group 30 - CANADIAN RECALLS
DealerCONNECT > Service > Repair > TechCONNECT > Group 30 - CANADIAN RECALLS
^ The Antilock Brake System (ABS) control module on about 5,100 of the above vehicles may cause the rear brakes to lock up during certain braking conditions. This could result in a loss of vehicle control and cause a crash without warning.

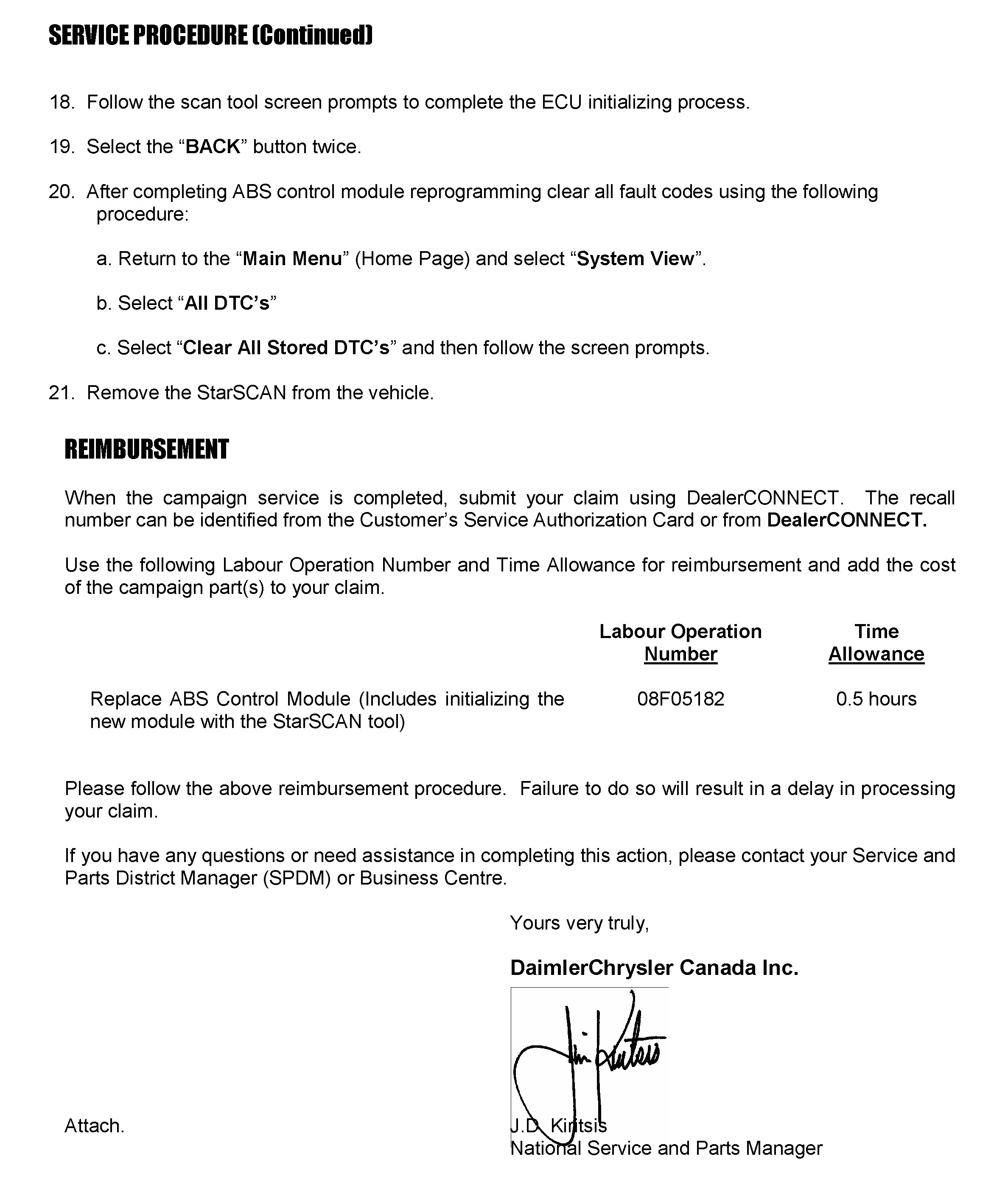

^ To correct this condition, the ABS control module must be replaced and initialized with the Star SCAN tool.
The V.I.N. range for vehicles involved in this campaign is as follows:
3D7KS28D06G127993 - 3D7LX38C36G193179
1D7HU18216J126024 - 1D7HU18N36J157253
1D7HW48J16S515789 - 1D7HW42K66S592496
PARTS PACKAGE INFORMATION
See your dealer notification letter for additional parts information.
DEALER VIN LISTS Located On DealerCONNECT - Global Recall System(GRS)
Global Recall System(GRS) has been developed to provide dealers with an up-to-date list of involved vehicles by recall number and by dealer code. Owners known to DaimlerChrysler are also listed. Involved vehicles will be removed from GRS within several days of submitting repair claims.
To use the GRS in DealerCONNECT, you first need to click on the "Service" tab and then in the Reports and Information section click on "Global Recall System". Your dealer's VIN list for each recall displayed can be sorted by: VIN sequence, city, postal code, phone number or those vehicles that according to our records were unsold at time of the recall launch.
Dealer Information
Owner Letter
