Service Specifications

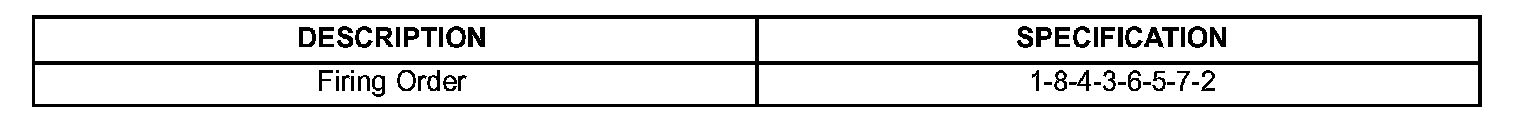

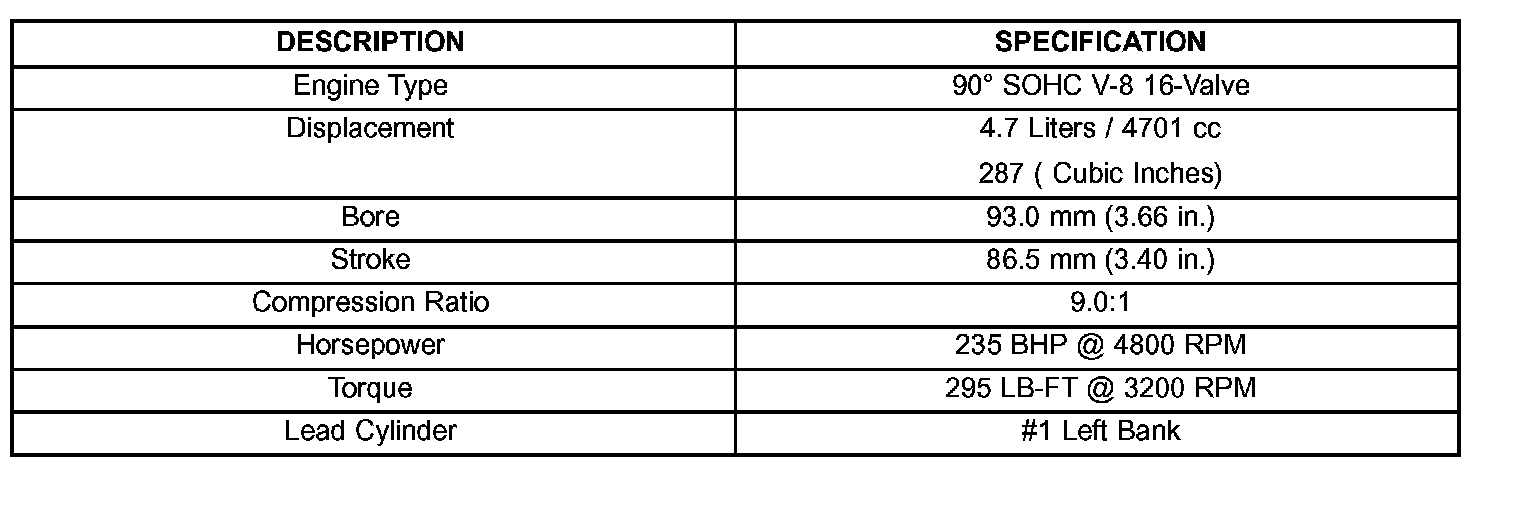

GENERAL DESCRIPTION (part 1):

GENERAL DESCRIPTION (part 2):

CYLINDER BLOCK:

PISTONS:

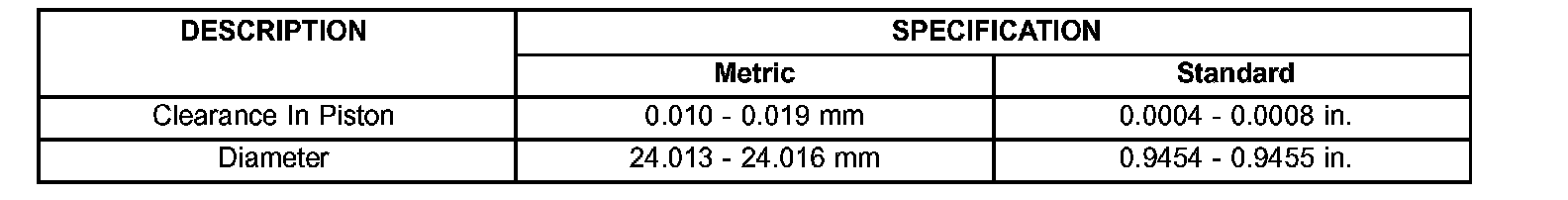

PISTON PINS:

PISTON RINGS:

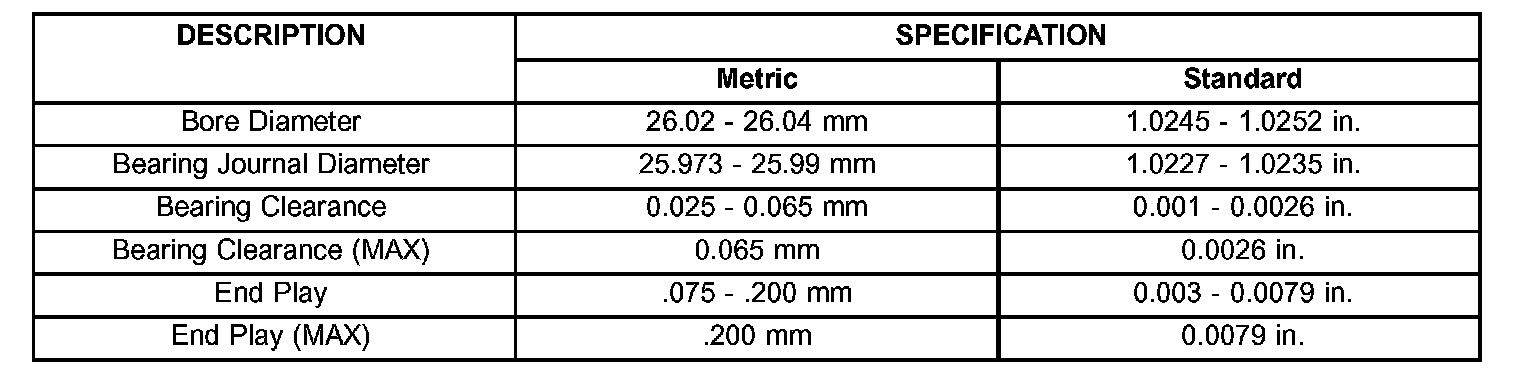

CONNECTING RODS:

CRANKSHAFT:

CAMSHAFT:

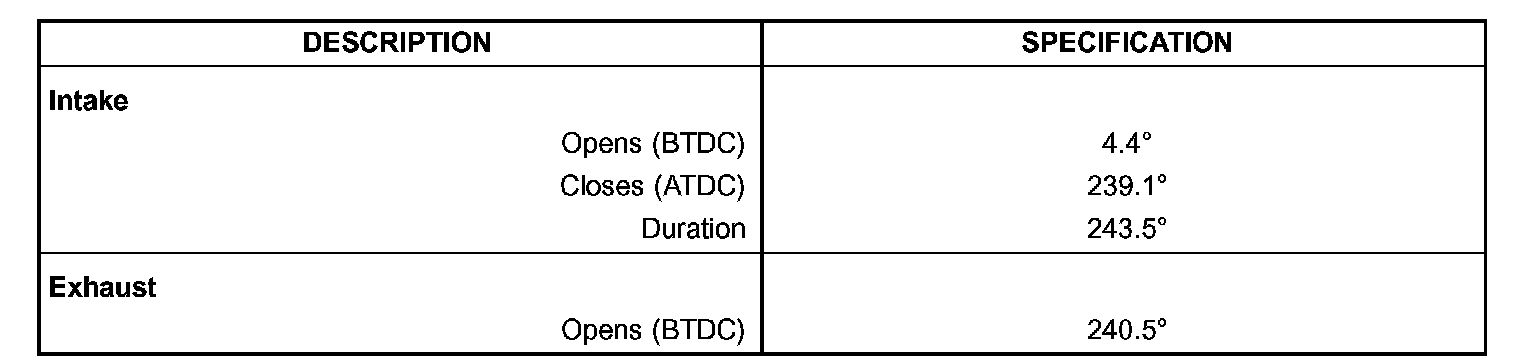

VALVE TIMING (part 1):

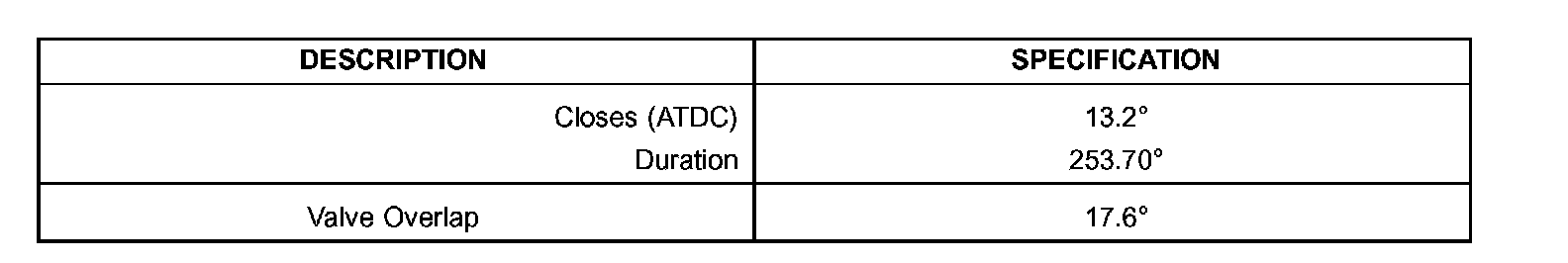

VALVE TIMING (part 2):

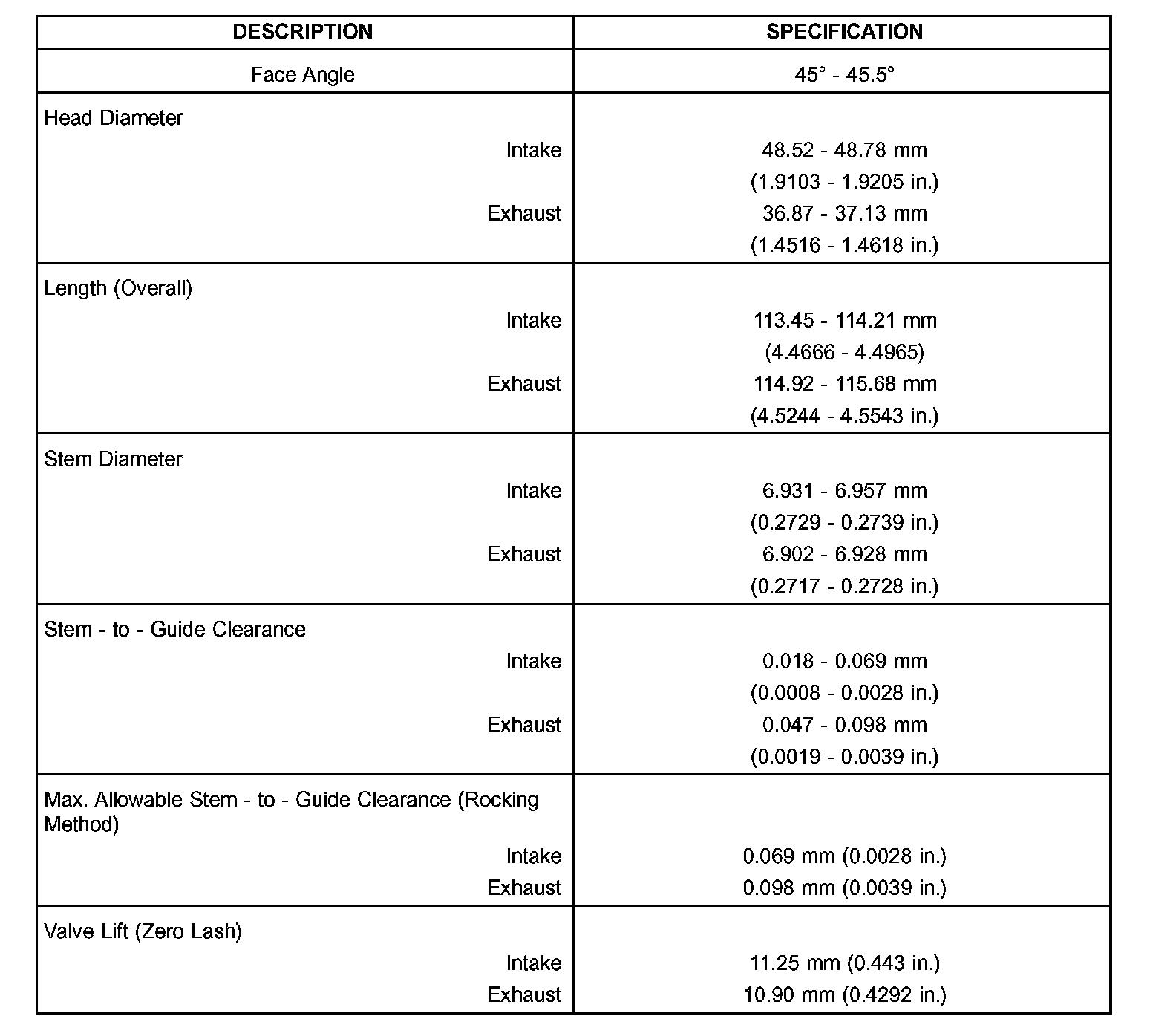

VALVES:

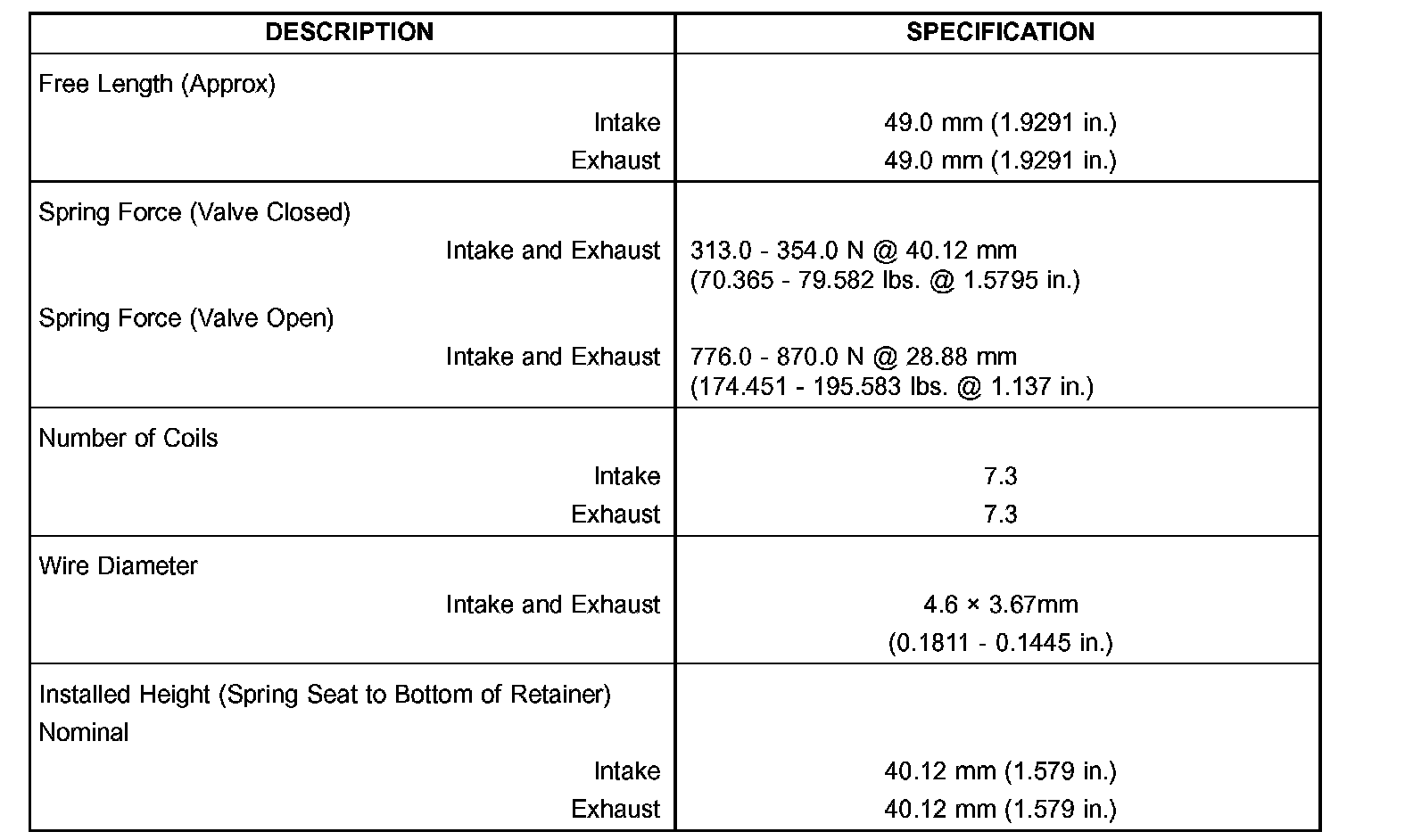

VALVE SPRING:

CYLINDER HEAD:

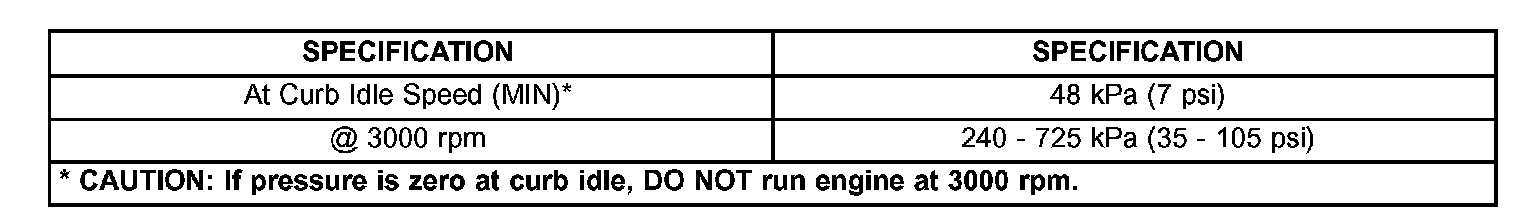

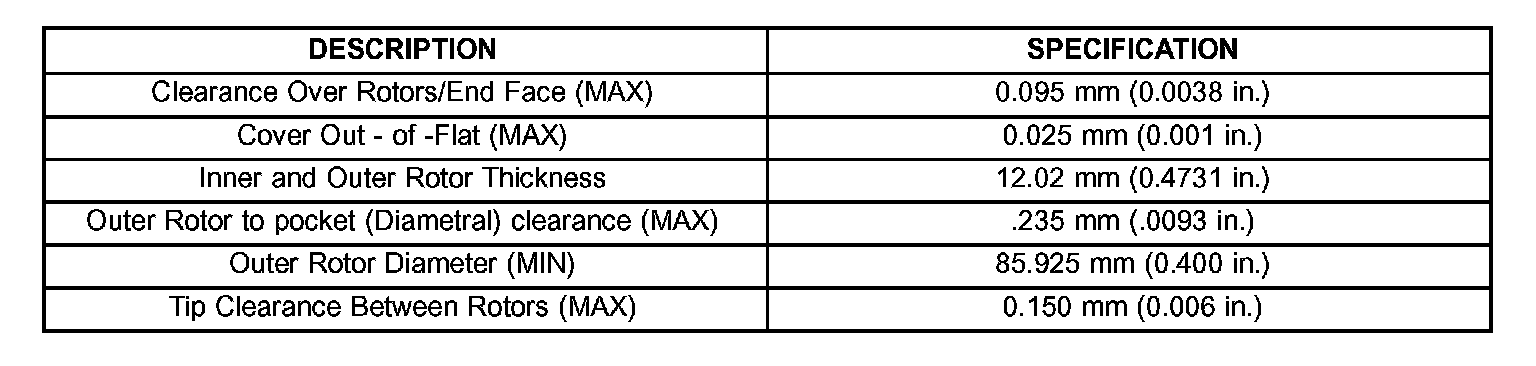

OIL PUMP:

OIL PUMP:
