Parking Brake Warning Switch

Component ID: 542
Component : SWITCH-PARKING BRAKE

Connector:
Name : SWITCH-PARKING BRAKE C1
Color : WHITE
# of pins : 1




Pin Description Circuit
1 - 572 20BR/WT

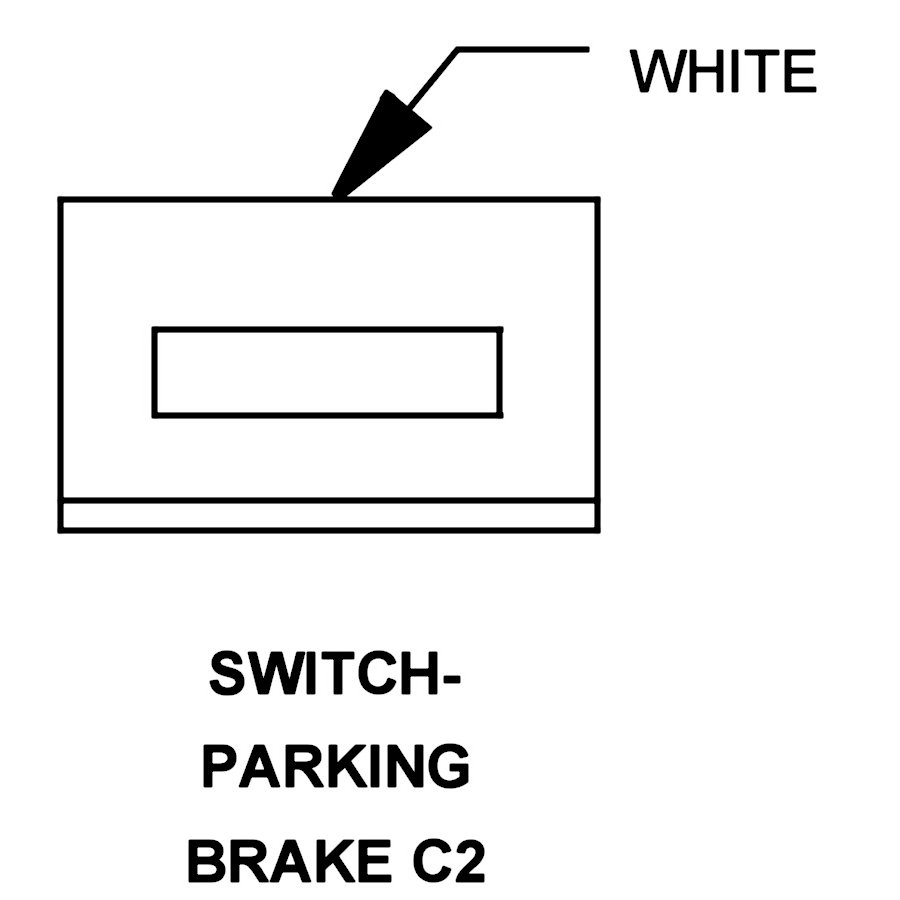

Connector:
Name : SWITCH-PARKING BRAKE C2
Color : WHITE
# of pins : 1




Pin Description Circuit
1 GROUND 573 20BR
