Antilock Brake Module (RWAL) (Headlamp And Dash) 14 Way






Connector (RWAL) - (HEADLAMP AND DASH) 14 WAY

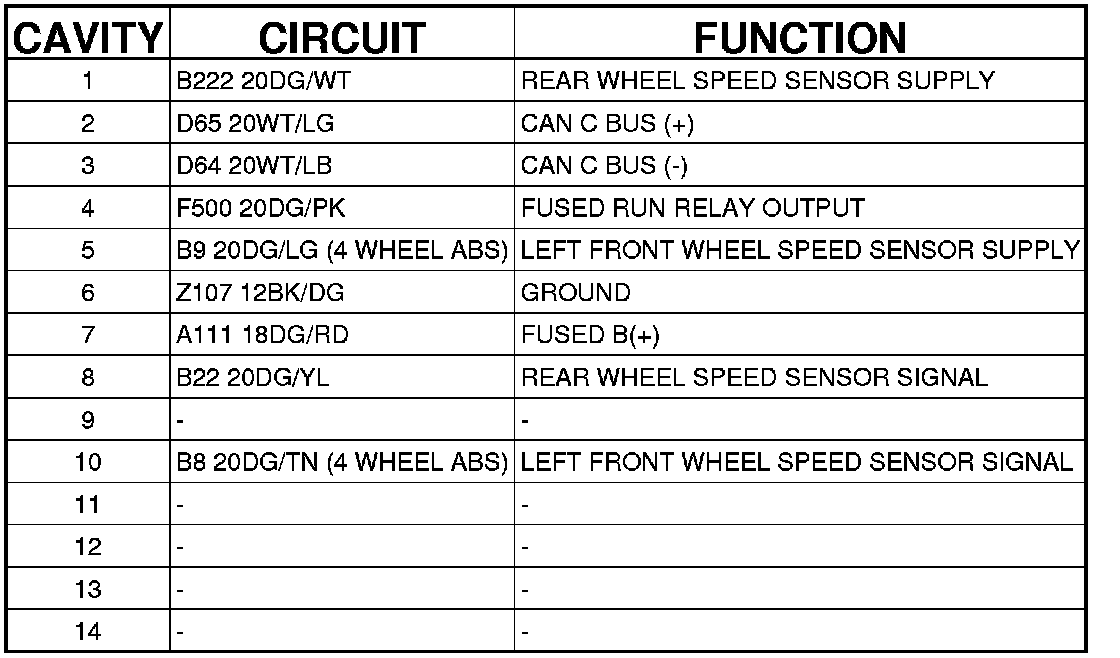

MODULE-ANTI-LOCK BRAKES (RWAL) - (HEADLAMP AND DASH) 14 WAY
