C1404

C1404- TRANSFER CASE RANGE POSITION SENSOR CIRCUIT LOW





For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Ignition on. Battery voltage between 9.0 and 16.0 volts.

- Set Condition:
The TIPM detects a short to ground on the Transfer Case Position Sensor Signal circuit for 2.0 seconds.





1. T-CASE POSITION SENSOR VOLTAGE BELOW 0.2 VOLTS
1. Ignition on, engine not running.
2. With the scan tool under TIPM, read the T-Case Position Sensor voltage.

Is the voltage below 0.2 volts?

Yes

- Go To 2

No

- Go To 6

2. (T313) MODE SENSOR SIGNAL CIRCUIT VOLTAGE BELOW 4.9 VOLTS




1. Turn the ignition off to the lock position.
2. Disconnect the Transfer Case Motor harness connector.
3. Ignition on, engine not running.
4. Measure the voltage of the (T313) Mode Sensor Signal circuit and the (Z904) Sensor Ground at the Transfer Case Motor harness connector.

Is the voltage below 4.9 volts?

Yes

- Go To 3

No

- Replace the Transfer Case (4WD) Switch.
- Perform TRANSFER CASE VERIFICATION TEST Transfer Case Verification Test.

3. (T313) MODE SENSOR SIGNAL CIRCUIT OPEN




1. Turn the ignition off to the lock position.
2. Disconnect the TIPM C1 harness connector.
3. Measure the resistance of the (T313) Mode Sensor Signal circuit between the Transfer Case (4WD) Switch harness connector and the TIPM C1 harness connector.

Is the resistance above 5.0 ohms?

Yes

- Repair the (T313) Mode Sensor Signal circuit for an open.
- Perform TRANSFER CASE VERIFICATION TEST Transfer Case Verification Test.

No

- Go To 4

4. (T313) MODE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND




1. Measure the resistance between ground and the (T313) Mode Sensor Signal circuit at the Transfer Case Motor harness connector.

Is the resistance below 5.0 ohms?

Yes

- Repair the (T313) Mode Sensor Signal circuit for a short to ground.
- Perform TRANSFER CASE VERIFICATION TEST Transfer Case Verification Test.

No

- Go To 5

5. (T313) MODE SENSOR SIGNAL CIRCUIT SHORTED TO (Z904) SENSOR GROUND CIRCUIT

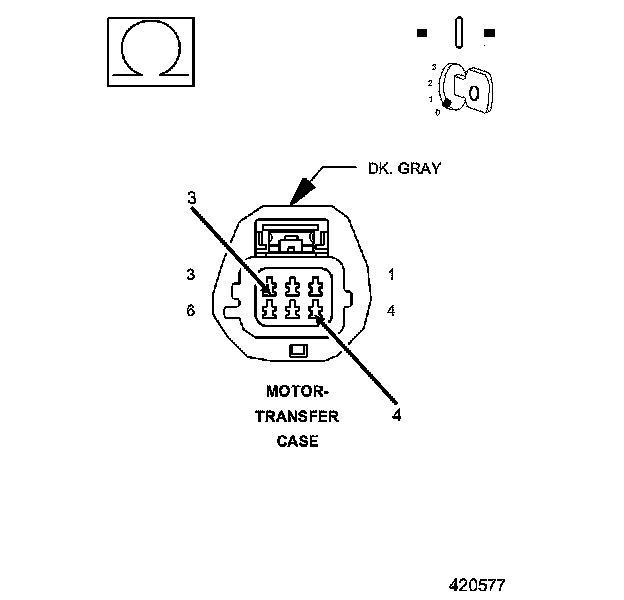

1. Measure the resistance between the (T313) Mode Sensor Signal circuit and the (Z904) Sensor Ground circuit at the Transfer Case Motor harness connector.

Is the resistance below 5.0 ohms?

Yes

- Repair the (T313) Mode Sensor Signal circuit for a short to the (Z904) Sensor Ground circuit.
- Perform TRANSFER CASE VERIFICATION TEST Transfer Case Verification Test.

No

- Replace the Totally Integrated Power Module.
- Perform TRANSFER CASE VERIFICATION TEST Transfer Case Verification Test.

6. INTERMITTENT WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
3. While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.
4. Look for the data to change or for the DTC to reset during the wiggle test.

Were any problems found?

Yes

- Repair as necessary.
- Perform TRANSFER CASE VERIFICATION TEST Transfer Case Verification Test.

No

- Test complete.
