Totally Integrated Power Module C9 (Headlamp And Dash) 12 Way

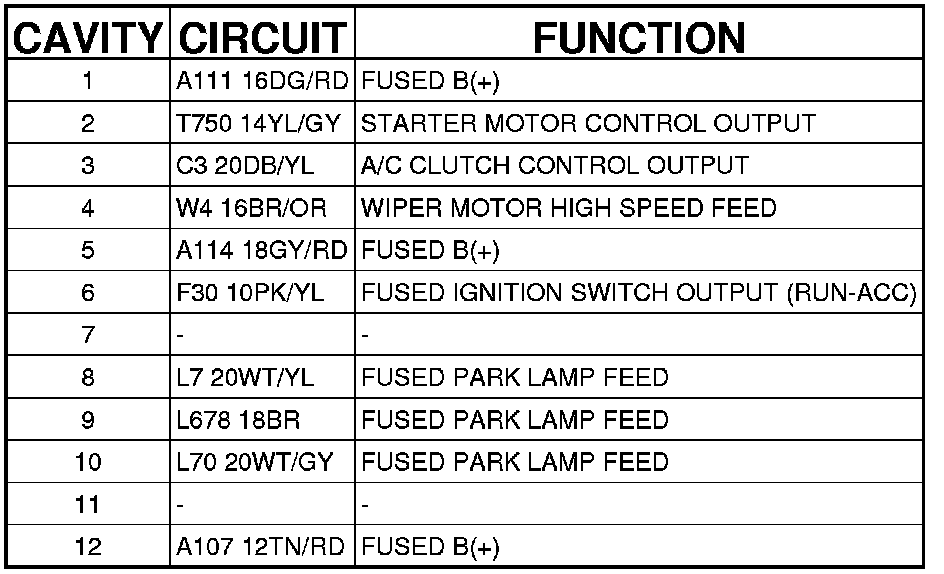

Connector C9 - (HEADLAMP AND DASH) 12 WAY




MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 12 WAY
