Engine Controls - Long Crank Time/Hard Start
NUMBER: 18-031-10GROUP: Vehicle Performance
DATE: November 09, 2010
HELP USING THE wiTECH DIAGNOSTIC APPLICATION FOR FLASHING AN ECU IS AVAILABLE BY SELECTING "HELP" THEN "HELP CONTENTS" AT THE TOP OF THE wiTECH DIAGNOSTIC APPLICATION WINDOW.
THE wiTECH SOFTWARE LEVEL MUST BE AT RELEASE 11.01 OR HIGHER TO PERFORM THIS PROCEDURE.
SUBJECT:
Flash: Hard Start Or Long Crank Time
OVERVIEW:
This bulletin involves selectively erasing and reprogramming the Powertrain Control Module (PCM) with new software.
MODELS:
2011 (KA) Nitro
NOTE:
This bulletin applies to vehicles equipped with a 4.0L engine (Sales code EGS) built before September 10, 2010, 20XX.
SYMPTOM/CONDITION:
The customer may experience a hard to start, long crank time or even a no start. The customer may describe that If the gas pedal is pushed slightly the vehicle starts as expected.
An adjustment was made to the air, fuel mixture strategy in the PCM. Updating the PCM software will correct the conditions listed above.
DIAGNOSIS:
Using a Scan Tool (wiTECH(TM)) with the appropriate Diagnostic Procedures available in TechCONNECT, verify all engine and transmission systems are functioning as designed. If DTC's are present record them on the repair order and repair as necessary before proceeding further with this bulletin.
If the above condition is present, perform the Repair Procedure.

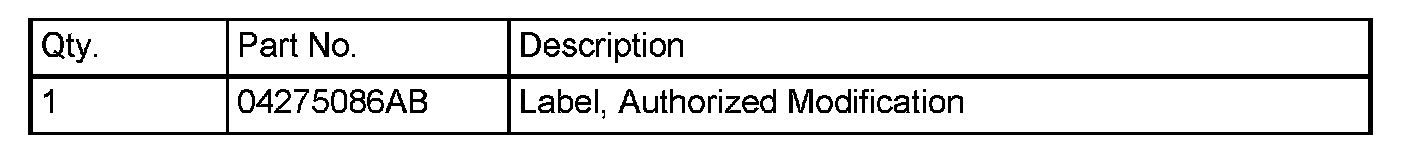

PARTS REQUIRED:
REPAIR PROCEDURE:
NOTE:
If this flash process is interrupted/aborted, the flash should be restarted.
1. Reprogram the PCM with the latest software. Follow the detailed service procedures available in DealerCONNECT/TechCONNECT, Refer To Group 8 - Electrical > Electronic Control Modules - Service Information > Module - Powertrain Control > Standard Procedures > PCM/ECM Programming - Gas.
After PCM reprogramming, the following must be performed:
a. Clear any DTC's that may have been set in other modules due to reprogramming. The wiTECH application will automatically present all DTCs after the flash and allow the tech to clear them.
2. Type the necessary information on the "Authorized Modification Label and attach it near the VECI label.
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:

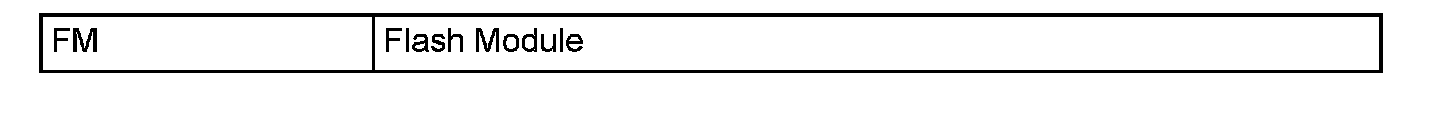

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
